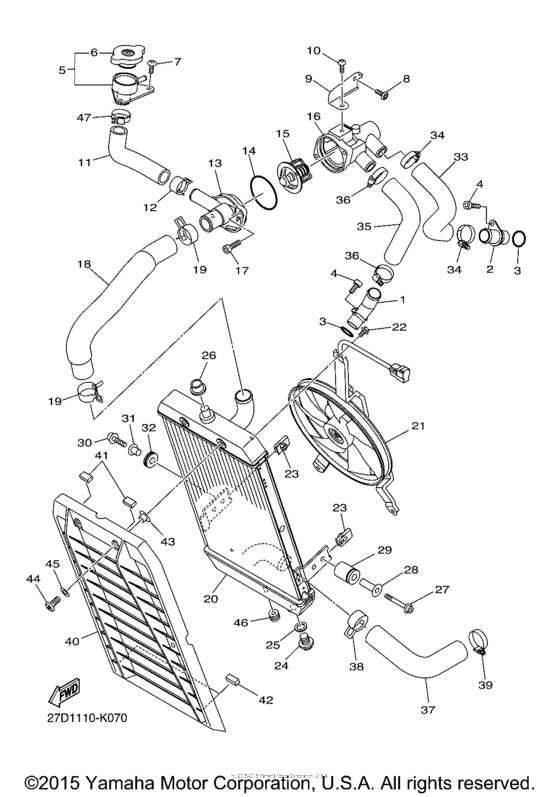

Radiator & hose Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2015
- Model code
- BJ31
- Sales region
- USA
- Базовая модель
- XVS13CFGR
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-12481-00-00 Pipe 1 |
3D8-12481-00-00 |
from US $23.52 |
||
|
2
|
2
3D8-12482-00-00 Pipe 2 |
3D8-12482-00-00 |
from US $16.72 |
||
|
3
|
3
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.94 |
||
|
4
|
4
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
5
|
5
4GG-12590-00-00 Conduction Assy |
4GG-12590-00-00 |
from US $62.45 |
||
|
6
|
6
22W-12462-00-00
Cap, Radiator
|
22W-12462-00-00 |
— | ||
| replacements | |||||
|
6
|
6
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
6
|
6
4FL-12462-00-00 Cap, Radiator |
4FL-12462-00-00 |
from US $36.80 |
||
|
7
|
7
90111-06083-00 Bolt, Hex. Socket Button |
90111-06083-00 |
from US $1.42 |
||
|
8
|
8
90111-06078-00 Screw |
90111-06078-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.81 |
||
|
9
|
9
27D-1244E-00-00 Bracket 1 |
27D-1244E-00-00 |
from US $5.10 |
||
|
10
|
10
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.66 |
||
|
11
|
11
27D-12589-00-00 Hose 6 |
27D-12589-00-00 |
from US $7.93 |
||
|
12
|
12
904-67230-A1-00 Clip |
904-67230-A1-00 |
from US $3.40 |
||
|
13
|
13
27D-12413-00-00 Cover, Thermostat |
27D-12413-00-00 |
from US $25.36 |
||
|
14
|
14
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.94 |
||
|
15
|
15
1AE-12410-00-00 Thermostat Assy |
1AE-12410-00-00 |
from US $61.20 |
||
| replacement | |||||
|
15
|
15
1AE-12410-01-00 Thermostat Assy |
1AE-12410-01-00 |
from US $42.01 |
||
|
16
|
16
27D-12417-00-00 Housing, Thermostat |
27D-12417-00-00 |
from US $32.02 |
||
|
17
|
17
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
18
|
18
27D-12579-00-00 Hose 4 |
27D-12579-00-00 |
from US $22.95 |
||
|
19
|
19
904-67280-A1-00 Clip |
904-67280-A1-00 |
from US $3.68 |
||
|
20
|
20
3D8-12461-10-00 Radiator Comp |
3D8-12461-10-00 |
from US $633.60 |
||
|
21
|
21
3D8-12405-10-00 Blower Assy |
3D8-12405-10-00 |
from US $495.13 |
||
|
22
|
22
3D8-12675-00-00 Bolt, Blower Holding |
3D8-12675-00-00 |
from US $5.67 |
||
|
23
|
23
3D8-12535-00-00 Plate |
3D8-12535-00-00 |
from US $2.55 |
||
|
24
|
24
1AA-12561-00-00 Plug,drain Cock |
1AA-12561-00-00 |
from US $13.18 |
||
|
25
|
25
1AA-12435-00-00 Gasket |
1AA-12435-00-00 |
from US $4.58 |
||
|
26
|
26
90480-20003-00 Grommet |
90480-20003-00 |
from US $1.70 |
||
|
27
|
27
90110-06261-00 Bolt, Hexagon Socket Head |
90110-06261-00 |
from US $2.13 |
||
|
28
|
28
90387-0614X-00 Collar |
90387-0614X-00 |
from US $6.23 |
||
|
29
|
29
27D-12465-00-00 Damper, Radiator |
27D-12465-00-00 |
from US $1.84 |
||
|
30
|
30
90110-06263-00 Bolt, Hexagon Socket Head |
90110-06263-00 |
from US $1.84 |
||
|
31
|
31
90387-065G0-00 Collar |
90387-065G0-00 |
from US $1.84 |
||
| replacement | |||||
|
31
|
31
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
32
|
32
27D-11328-00-00 Grommet, Anode |
27D-11328-00-00 |
from US $1.84 |
||
|
33
|
33
27D-12576-00-00 Hose 1 |
27D-12576-00-00 |
from US $10.20 |
||
| replacement | |||||
|
33
|
33
27D-12576-01-00 |
27D-12576-01-00 |
US $14.20 |
||
|
34
|
34
904-50280-14-00
Hose Clamp Assy
|
904-50280-14-00 |
— | ||
| replacement | |||||
|
34
|
34
90450-28001-00 Hose Clamp Assy |
90450-28001-00 |
from US $4.99 |
||
|
35
|
35
27D-12578-00-00 Hose 3 |
27D-12578-00-00 |
from US $8.50 |
||
| replacement | |||||
|
35
|
35
27D-12578-01-00 |
27D-12578-01-00 |
US $11.47 |
||
|
36
|
36
904-50280-14-00
Hose Clamp Assy
|
904-50280-14-00 |
— | ||
| replacement | |||||
|
36
|
36
90450-28001-00 Hose Clamp Assy |
90450-28001-00 |
from US $4.99 |
||
|
37
|
37
3D8-12588-00-00 Hose 5 |
3D8-12588-00-00 |
from US $10.91 |
||
|
38
|
38
904-67280-A1-00 Clip |
904-67280-A1-00 |
from US $3.68 |
||
|
39
|
39
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.68 |
||
|
40
|
40
3D8-12467-00-00 Cover, Radiator |
3D8-12467-00-00 |
from US $34.29 |
||
|
41
|
41
3D8-21541-00-00 Damper 1 |
3D8-21541-00-00 |
from US $1.42 |
||
|
42
|
42
3D8-12465-00-00 Damper, Radiator |
3D8-12465-00-00 |
from US $1.42 |
||
|
43
|
43
90387-08076-00 Collar |
90387-08076-00 |
from US $5.81 |
||
|
44
|
44
90111-06041-00 Bolt, Hex. Socket Button |
90111-06041-00 |
from US $1.81 |
||
|
45
|
45
90201-06096-00 Washer, Plate |
90201-06096-00 |
from US $3.68 |
||
|
46
|
46
90480-08003-00 Grommet |
90480-08003-00 |
from US $1.42 |
||
|
47
|
47
904-50280-14-00
Hose Clamp Assy
|
904-50280-14-00 |
— | ||
| replacement | |||||
|
47
|
47
90450-28001-00 Hose Clamp Assy |
90450-28001-00 |
from US $4.99 |
||
