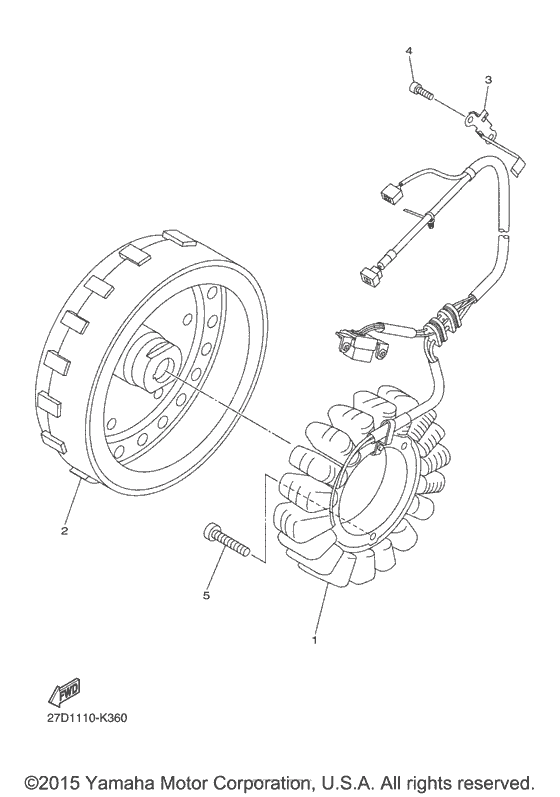

Generator Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2016
- Colour
- Mat Gray Metallic 3
- Model code
- BJ32
- Sales region
- United States (California)
- Базовая модель
- XVS13CGCY
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-81410-20-00 Stator Assy |
3D8-81410-20-00 |
from US $444.66 |
||
|
2
|
2
3D8-81450-10-00 Rotor Assy |
3D8-81450-10-00 |
from US $508.68 |
||
|
3
|
3
3D8-15484-00-00 Clamp 2 |
3D8-15484-00-00 |
from US $7.37 |
||
|
4
|
4
90110-06161-00 Bolt |
90110-06161-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
5
|
5
90110-06177-00 Bolt |
90110-06177-00 |
from US $1.84 |
||
| replacement | |||||
|
5
|
5
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
