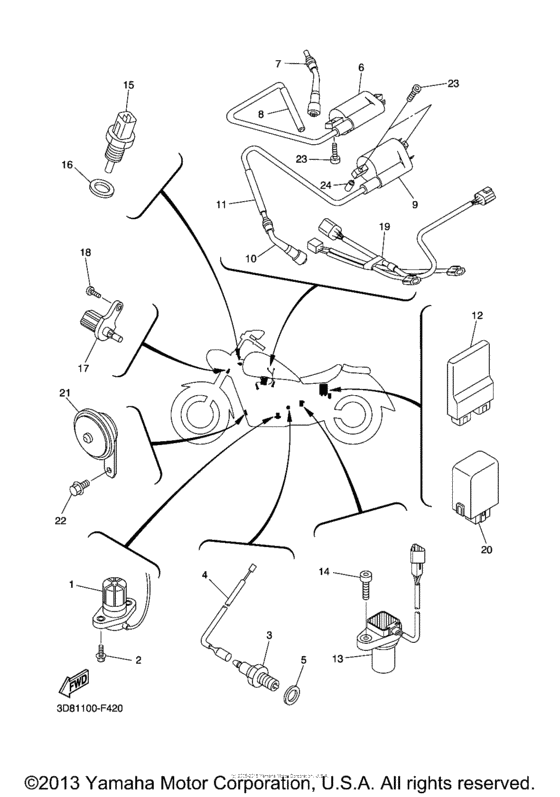

Electrical (1) Diagram Yamaha XVS1300 V-Star Tourer
- Year
- 2008
- Model code
- 5S65
- Sales region
- USA
- Базовая модель
- XVS13CTXCS
- Engine Capacity
- 1300
- Model
- XVS1300CT (V-Star Tourer)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-85720-00-00 Oil Level Gauge Assy |
3D8-85720-00-00 |
from US $64.47 |
||
|
2
|
2
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.66 |
||
|
3
|
3
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $20.25 |
||
|
4
|
4
3D8-82509-00-00 Wire, Sub Lead |
3D8-82509-00-00 |
from US $4.82 |
||
|
5
|
5
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
6
|
6
3D8-82310-00-00 Ignition Coil Assy |
3D8-82310-00-00 |
from US $48.36 |
||
| replacements | |||||
|
6
|
6
3D8-82310-02-00 |
3D8-82310-02-00 |
US $65.02 |
||
|
6
|
6
3D8-82310-03-00 Ignition Coil Assy |
3D8-82310-03-00 |
US $64.21 |
||
|
7
|
7
3D8-82370-00-00 Plug Cap Assy |
3D8-82370-00-00 |
from US $44.35 |
||
|
8
|
8
5RU-82353-00-00 Hose |
5RU-82353-00-00 |
from US $5.38 |
||
|
9
|
9
3D8-82310-10-00 Ignition Coil Assy |
3D8-82310-10-00 |
from US $53.47 |
||
| replacement | |||||
|
9
|
9
3D8-82310-11-00 |
3D8-82310-11-00 |
US $60.88 |
||
|
10
|
10
3D8-82370-00-00 Plug Cap Assy |
3D8-82370-00-00 |
from US $44.35 |
||
|
11
|
11
5RU-82353-00-00 Hose |
5RU-82353-00-00 |
from US $5.38 |
||
|
12
|
12
3D8-8591A-10-00 Engine Control Unit Assy |
3D8-8591A-10-00 |
US $1,077.21 |
||
|
13
|
13
3D8-83755-00-00 Sensor, Speed |
3D8-83755-00-00 |
from US $118.96 |
||
| replacement | |||||
|
13
|
13
3D8-83755-01-00 |
3D8-83755-01-00 |
from US $107.82 |
||
|
14
|
14
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
15
|
15
8CC-85790-01-00 Thermosensor Assy |
8CC-85790-01-00 |
from US $51.95 |
||
|
16
|
16
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
17
|
17
5YU-85886-00-00 Sensor, Air Temperature |
5YU-85886-00-00 |
from US $29.27 |
||
|
18
|
18
98502-05012-00 Screw, Pan Head |
98502-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
18
|
18
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
18
|
18
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
19
|
19
3D8-82509-10-00 Wire, Sub Lead |
3D8-82509-10-00 |
US $94.64 |
||
|
20
|
20
3D8-83350-00-00 Flasher Relay Assy |
3D8-83350-00-00 |
from US $102.38 |
||
|
21
|
21
3D8-83371-00-00 Horn |
3D8-83371-00-00 |
from US $46.70 |
||
|
22
|
22
90105-082A5-00 Bolt, Flange |
90105-082A5-00 |
from US $1.70 |
||
|
23
|
23
91380-06020-00 Bolt, Hexagon Socket Head |
91380-06020-00 |
from US $4.99 |
||
| replacement | |||||
|
23
|
23
90110-06114-00 Bolt, Hexagon Socket Head |
90110-06114-00 |
from US $3.04 |
||
|
24
|
24
90445-05003-00 Hose |
90445-05003-00 |
US $2.13 |
||
| replacement | |||||
|
24
|
24
90445-08029-00 Hose |
90445-08029-00 |
from US $2.13 |
||
