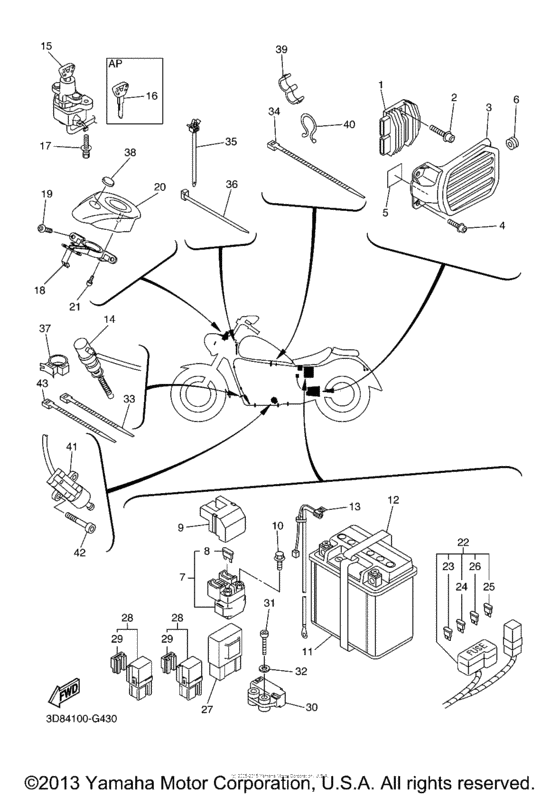

Electrical (2) Diagram Yamaha XVS1300 V-Star Tourer
- Year
- 2008
- Model code
- 5S65
- Sales region
- USA
- Базовая модель
- XVS13CTXCS
- Engine Capacity
- 1300
- Model
- XVS1300CT (V-Star Tourer)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-81960-00-00
Rectifier & Regulator Assy
|
1D7-81960-00-00 |
— | ||
| replacement | |||||
|
1
|
1
1D7-81960-01-00 Rectifier & Regulator Assy |
1D7-81960-01-00 |
from US $242.47 |
||
|
2
|
2
90110-06263-00 Bolt, Hexagon Socket Head |
90110-06263-00 |
from US $1.84 |
||
|
3
|
3
3D8-21247-00-00 Case, Regulator |
3D8-21247-00-00 |
from US $16.15 |
||
| replacement | |||||
|
3
|
3
3D8-21247-02-00 Case, Regulator |
3D8-21247-02-00 |
from US $16.15 |
||
|
4
|
4
90110-06215-00 Bolt, Hexagon Socket Head |
90110-06215-00 |
from US $1.70 |
||
|
5
|
5
2GH-24185-00-00 Damper, Locating 5 |
2GH-24185-00-00 |
from US $1.03 |
||
|
6
|
6
90480-12550-00 Grommet |
90480-12550-00 |
from US $1.84 |
||
|
7
|
7
3D8-81940-00-00 Starter Relay Assy (Rc19-074) |
3D8-81940-00-00 |
from US $74.09 |
||
|
8
|
8
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.66 |
||
|
9
|
9
5SL-82119-10-00 Cover, Lead Wire |
5SL-82119-10-00 |
from US $4.39 |
||
|
10
|
10
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.36 |
||
|
11
|
11
4SH-82100-22-00
Ytx20Lbs Yuasa Batt
|
4SH-82100-22-00 |
— | ||
| replacements | |||||
|
11
|
11
YTX-20LBS-00-00
Bat Ytx20L-Bs (Ptx20L-Bs) Yu
|
YTX-20LBS-00-00 |
— | ||
|
11
|
11
BTY-GTX20-LB-S0
Battery gtx-20l-bs
|
BTY-GTX20-LB-S0 |
— | ||
|
12
|
12
4AS-82131-01-00 Band, Battery |
4AS-82131-01-00 |
from US $13.18 |
||
|
13
|
13
3D8-82116-00-00 Wire, Minus Lead |
3D8-82116-00-00 |
US $26.35 |
||
|
14
|
14
3D8-82530-00-00 Stop Switch Assy |
3D8-82530-00-00 |
from US $35.51 |
||
| replacement | |||||
|
14
|
14
3D8-82530-01-00 Stop Switch Assy |
3D8-82530-01-00 |
from US $27.47 |
||
|
15
|
15
3D8-82501-00-00 Main Switch Steering Lock |
3D8-82501-00-00 |
from US $175.46 |
||
| replacements | |||||
|
15
|
15
3D8-82501-01-00 Main Switch Steering Lock |
3D8-82501-01-00 |
from US $169.94 |
||
|
15
|
15
3D8-82501-02-00 Main Switch Steering Lock |
3D8-82501-02-00 |
US $196.56 |
||
|
16
|
16
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $12.35 |
||
|
17
|
17
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
17
|
17
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.81 |
||
|
18
|
18
3D8-2334G-00-00 Bracket 1 |
3D8-2334G-00-00 |
US $56.41 |
||
|
19
|
19
92012-06014-00 Bolt, Button Head |
92012-06014-00 |
from US $1.66 |
||
|
20
|
20
3D8-82568-00-00 Cover, Main Switch |
3D8-82568-00-00 |
from US $75.02 |
||
|
21
|
21
97702-40016-00 Screw, Tapping |
97702-40016-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.42 |
||
|
22
|
22
3D8-82590-10-00 Wire Harness Assy |
3D8-82590-10-00 |
US $898.40 |
||
|
23
|
23
5JJ-82151-30-00
Fuse (10A-Bl)
10A |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
23
|
23
67F-82151-40-00 Fuse (10A)10A |
67F-82151-40-00 |
from US $1.90 |
||
|
24
|
24
5JJ-82151-10-00 Fuse (15A-Bl)15A |
5JJ-82151-10-00 |
US $3.05 |
||
| replacement | |||||
|
24
|
24
67F-82151-50-00 Fuse (15A)15A |
67F-82151-50-00 |
from US $1.90 |
||
|
25
|
25
5JW-82151-10-00 Fuse (50A)50A |
5JW-82151-10-00 |
from US $10.27 |
||
|
26
|
26
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.74 |
||
|
27
|
27
5KS-81950-30-00 Relay Assy (5Ks-30)5KS-30 |
5KS-81950-30-00 |
from US $61.22 |
||
| replacements | |||||
|
27
|
27
5KS-81950-31-00 RELAY ASSY5KS-30 |
5KS-81950-31-00 |
from US $61.22 |
||
|
27
|
27
5KS-81950-32-00 Relay Assy5KS-30 |
5KS-81950-32-00 |
from US $61.22 |
||
|
28
|
28
5EA-81950-20-00 Relay Assy (5Ea-02)5EA-02 |
5EA-81950-20-00 |
from US $26.63 |
||
|
29
|
29
5EA-81952-00-00 Holder, Relay |
5EA-81952-00-00 |
from US $4.86 |
||
|
30
|
30
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
30
|
30
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
from US $93.26 |
||
|
31
|
31
90110-04003-00 Bolt |
90110-04003-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
91312-04025-00 Bolt |
91312-04025-00 |
from US $1.42 |
||
|
32
|
32
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
33
|
33
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
34
|
34
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
35
|
35
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
35
|
35
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
36
|
36
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
37
|
37
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.81 |
||
|
38
|
38
3D8-2341B-00-00 Emblem |
3D8-2341B-00-00 |
from US $25.64 |
||
|
39
|
39
90464-10M57-00 Clamp |
90464-10M57-00 |
from US $3.83 |
||
|
40
|
40
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
41
|
41
3D8-82566-B0-00 Switch, Side Stand |
3D8-82566-B0-00 |
from US $71.01 |
||
|
42
|
42
90110-05033-00 Bolt |
90110-05033-00 |
from US $1.42 |
||
| replacement | |||||
|
42
|
42
91312-05025-00 Bolt |
91312-05025-00 |
from US $1.42 |
||
|
43
|
43
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
