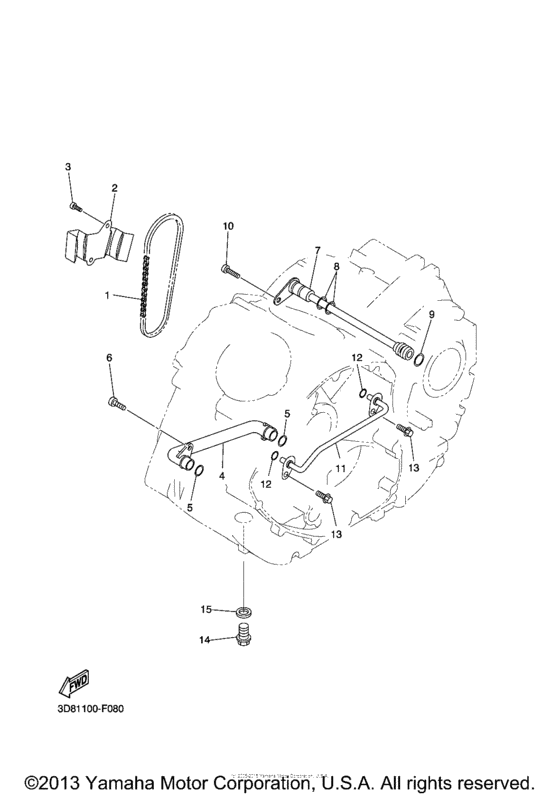

Oil pump Diagram Yamaha XVS1300 V-Star Tourer
- Year
- 2009
- Model code
- 5S68
- Sales region
- USA
- Базовая модель
- XVS13CTYCL
- Engine Capacity
- 1300
- Model
- XVS1300CT (V-Star Tourer)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94580-25062-00 ChainChain (did25 62l) 62L |
94580-25062-00 |
from US $9.57 |
||
|
2
|
2
3D8-13898-00-00 Holder |
3D8-13898-00-00 |
US $20.20 |
||
|
3
|
3
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.39 |
||
|
4
|
4
3D8-13416-00-00 Pipe, Oil 1 |
3D8-13416-00-00 |
from US $31.59 |
||
|
5
|
5
93210-14003-00 O-Ring |
93210-14003-00 |
from US $1.81 |
||
|
6
|
6
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.39 |
||
|
7
|
7
3D8-13171-00-00 Pipe, Delivery 2 |
3D8-13171-00-00 |
from US $56.65 |
||
|
8
|
8
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
| replacement | |||||
|
8
|
8
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
9
|
9
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.81 |
||
|
10
|
10
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.39 |
||
|
11
|
11
3D8-13181-00-00 Pipe, Delivery 3 |
3D8-13181-00-00 |
from US $17.99 |
||
|
12
|
12
932-10066-67-00 O-Ring |
932-10066-67-00 |
from US $2.22 |
||
|
13
|
13
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.18 |
||
|
14
|
14
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.66 |
||
|
15
|
15
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
