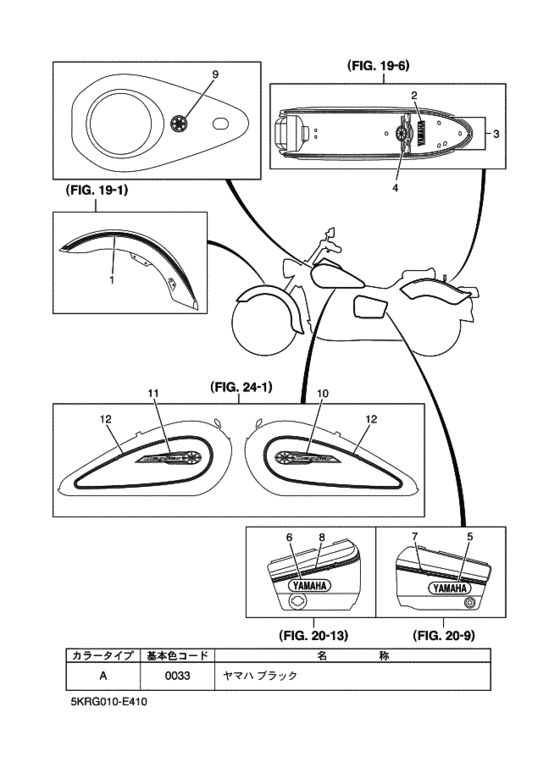

Graphic & Emblem Diagram Yamaha XVS250 Drag Star
- Year
- 2006
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5KRG
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XVS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JX-21570-70-00
Graphic Set, Front Fender
．グラフイツクセツト，フロントフエンダ; |
5JX-21570-70-00 |
— | ||
|
2
|
2
1D6-2153E-10-00 Emblem, Yamaha．エンブレム，ＹＡＭＡＨＡ; |
1D6-2153E-10-00 |
from US $7.65 |
||
| replacements | |||||
|
2
|
2
3WF-2153E-40-00 Emblem, Yamaha．エンブレム，ＹＡＭＡＨＡ; |
3WF-2153E-40-00 |
US $7.51 |
||
|
2
|
2
3WF-2153E-41-00 Emblem, Yamaha．エンブレム，ＹＡＭＡＨＡ; |
3WF-2153E-41-00 |
from US $7.51 |
||
|
3
|
3
5JX-2165A-70-00 Graphic Set,rear Fender．グラフイツクセツト，リヤフエンダ; |
5JX-2165A-70-00 |
US $87.78 |
||
|
4
|
4
5KR-2164B-00-00
Emblem,3D
エンブレム、 ３Ｄ; |
5KR-2164B-00-00 |
— | ||
|
5
|
5
3HT-24786-01-00
Emblem
．エンブレム; |
3HT-24786-01-00 |
— | ||
|
6
|
6
3HT-24786-01-00
Emblem
．エンブレム; |
3HT-24786-01-00 |
— | ||
|
7
|
7
5KR-2173E-00-00
Graphic 1
．グラフイツク １; |
5KR-2173E-00-00 |
— | ||
|
8
|
8
5KR-2173F-00-00
Graphic 2
．グラフイツク ２; |
5KR-2173F-00-00 |
— | ||
|
9
|
9
4TR-2413B-00-00 Emblem |
4TR-2413B-00-00 |
from US $14.73 |
||
|
10
|
10
5JX-2416B-10-00 Emblem |
5JX-2416B-10-00 |
US $31.88 |
||
|
11
|
11
5JX-2417B-10-00 Emblem |
5JX-2417B-10-00 |
US $31.88 |
||
|
12
|
12
5KR-24240-40-00
Graphic Set
．グラフイツクセツト; |
5KR-24240-40-00 |
— | ||
