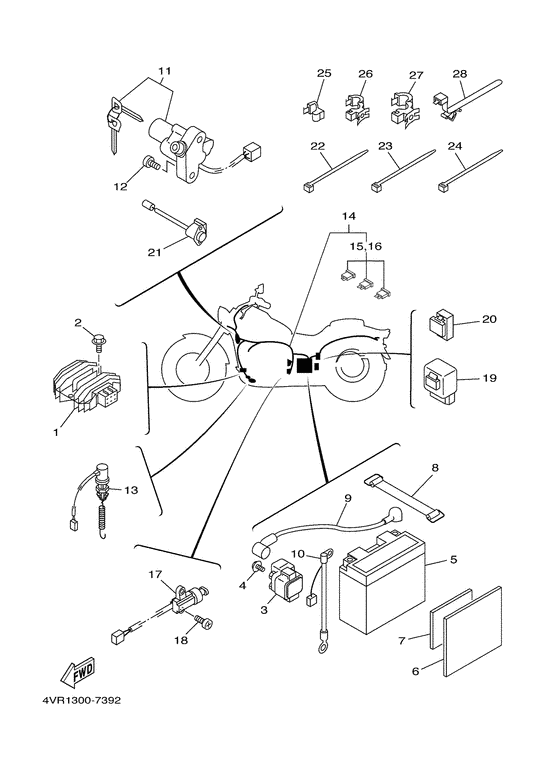

Electrical 1 Diagram Yamaha XVS650 Drag Star
- Year
- 1997
- Model code
- 4XP2
- Sales region
- Switzerland (010)
- Базовая модель
- XVS650
- Engine Capacity
- 650
- Model
- XVS650 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JH-81960-01-00 Rectifier-Regulator Assy |
4JH-81960-01-00 |
from US $258.56 |
||
|
02
|
02
95804-06020-00 Bolt, Flange |
95804-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
95814-06020-00 Bolt, Flange |
95814-06020-00 |
from US $1.42 |
||
|
03
|
03
4BH-81940-00-00 Starter Relay Assy (Rc19-005) |
4BH-81940-00-00 |
from US $97.40 |
||
| replacement | |||||
|
03
|
03
4BH-81940-02-00 Starter Relay Assy (Rc19-005) |
4BH-81940-02-00 |
from US $108.50 |
||
|
04
|
04
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
05
|
05
4TX-82100-01-00
Gt12B4 Gs Battery -
|
4TX-82100-01-00 |
— | ||
| replacements | |||||
|
05
|
05
GT1-2B400-00-00
Battery
|
GT1-2B400-00-00 |
— | ||
|
05
|
05
YT1-2BBS0-00-00
Bat Yt12B-Bs (Pt12B-4) Yu
|
YT1-2BBS0-00-00 |
— | ||
|
06
|
06
4VR-2176E-00-00 Plate |
4VR-2176E-00-00 |
from US $17.07 |
||
|
07
|
07
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $4.86 |
||
|
08
|
08
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $14.29 |
||
|
09
|
09
4TR-82115-00-00
Wire, Plus Lead
|
4TR-82115-00-00 |
— | ||
|
10
|
10
4TR-82116-00-00
Wire, Minus Lead
|
4TR-82116-00-00 |
— | ||
|
11
|
11
4VR-82501-00-00 Main Switch Steeri |
4VR-82501-00-00 |
from US $210 |
||
| replacement | |||||
|
11
|
11
4VR-82501-01-00 Main Switch Steering Lock |
4VR-82501-01-00 |
from US $210 |
||
|
12
|
12
92017-08020-00 Bolt, Button |
92017-08020-00 |
from US $1.18 |
||
|
13
|
13
3HN-82530-11-00
Stop Switch Assy
|
3HN-82530-11-00 |
— | ||
| replacements | |||||
|
13
|
13
3HN-82530-13-00 Stop Switch Assy |
3HN-82530-13-00 |
from US $32.02 |
||
|
13
|
13
3HN-82530-14-00 Stop Switch Assy |
3HN-82530-14-00 |
US $82.06 |
||
|
14
|
14
4VR-82590-00-00
Wire Harness Assy
|
4VR-82590-00-00 |
— | ||
|
15
|
15
36Y-82151-00-00 Fuse (15A-Blue) |
36Y-82151-00-00 |
from US $2.86 |
||
|
16
|
16
42X-82151-00-00 Fuse (10A-Bl) |
42X-82151-00-00 |
from US $1.66 |
||
|
17
|
17
3LD-82566-80-00 Switch, Side Stand |
3LD-82566-80-00 |
from US $64.87 |
||
| replacements | |||||
|
17
|
17
3LD-82566-B0-00 Switch, Side Stand |
3LD-82566-B0-00 |
from US $51.19 |
||
|
17
|
17
3LD-82566-B1-00 Switch, Side Stand |
3LD-82566-B1-00 |
US $57.96 |
||
|
18
|
18
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
18
|
18
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
19
|
19
3EN-81950-00-00 Relay Assy (3En-00) |
3EN-81950-00-00 |
from US $124.67 |
||
| replacements | |||||
|
19
|
19
3EN-81950-01-00 Relay Assy |
3EN-81950-01-00 |
from US $83.03 |
||
|
19
|
19
3EN-81950-02-00 Relay Assy |
3EN-81950-02-00 |
from US $77.56 |
||
|
20
|
20
1UY-81950-92-00 Relay Assy (1Uy-92) |
1UY-81950-92-00 |
from US $34.85 |
||
|
21
|
21
4TR-82560-00-00 Thermo Switch Assy |
4TR-82560-00-00 |
US $68.53 |
||
|
22
|
22
1UA-82591-00-00 BandHandlebar |
1UA-82591-00-00 |
from US $1.28 |
||
|
23
|
23
1UA-82591-00-00 BandFrame |
1UA-82591-00-00 |
from US $1.28 |
||
|
24
|
24
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
25
|
25
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.81 |
||
|
26
|
26
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
27
|
27
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
28
|
28
90464-20213-00 Clamp |
90464-20213-00 |
from US $1.81 |
||
