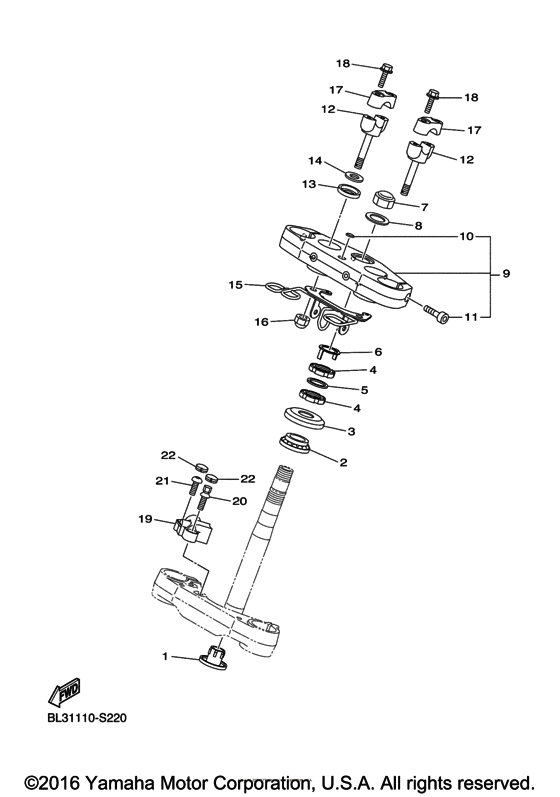

Steering Diagram Yamaha XVS950 SCR950
- Year
- 2017
- Model code
- BL31
- Sales region
- USA
- Базовая модель
- SCR95HR
- Engine Capacity
- 950
- Model
- XVS950XR (SCR950)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KM-23123-01-00 Cover, Under 1 |
4KM-23123-01-00 |
from US $8.78 |
||
|
2
|
2
93399-99931-00 Bearing |
93399-99931-00 |
from US $32.60 |
||
|
3
|
3
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
4
|
4
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
5
|
5
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
6
|
6
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $7.77 |
||
|
7
|
7
901-76220-02-00 Nut, Crown |
901-76220-02-00 |
from US $18.84 |
||
|
8
|
8
90201-220T0-00 Washer, Plate |
90201-220T0-00 |
from US $3.71 |
||
| replacement | |||||
|
8
|
8
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.86 |
||
|
9
|
9
BL3-Y2343-00-00 CROWN, HANDLE |
BL3-Y2343-00-00 |
from US $223 |
||
|
10
|
10
14B-2836B-00-00 Tuning Fork Mark |
14B-2836B-00-00 |
from US $10.06 |
||
|
11
|
11
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
12
|
12
3Y6-23442-00-P2 Holder, Handle LowerMBL2 |
3Y6-23442-00-P2 |
from US $38.60 |
||
|
13
|
13
3DM-23445-00-00 Damper |
3DM-23445-00-00 |
from US $4.99 |
||
|
14
|
14
902-01107-F8-00
Washer, Plate
|
902-01107-F8-00 |
— | ||
| replacement | |||||
|
14
|
14
90201-10058-00 Washer, Plate |
90201-10058-00 |
from US $7.08 |
||
|
15
|
15
BL3-23389-00-00 GUIDE, CABLE |
BL3-23389-00-00 |
US $52.45 |
||
|
16
|
16
90176-10003-00 Nut, Crown |
90176-10003-00 |
from US $5.13 |
||
|
17
|
17
1E6-23441-10-P0 Holder, Handle UpperMBL2 |
1E6-23441-10-P0 |
from US $17.85 |
||
|
18
|
18
95027-08035-00 Bolt, Flange |
95027-08035-00 |
from US $1.56 |
||
|
19
|
19
1TP-23408-00-00 Steering Lock Assy |
1TP-23408-00-00 |
from US $77.23 |
||
|
20
|
20
90109-08195-00 Bolt |
90109-08195-00 |
from US $1.81 |
||
| replacement | |||||
|
20
|
20
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.81 |
||
|
21
|
21
901-49080-55-00 Screw |
901-49080-55-00 |
US $1.84 |
||
| replacement | |||||
|
21
|
21
90149-08002-00 Screw |
90149-08002-00 |
from US $1.84 |
||
|
22
|
22
1TP-23484-00-00 Cap, Handle Lock |
1TP-23484-00-00 |
from US $1.98 |
||
