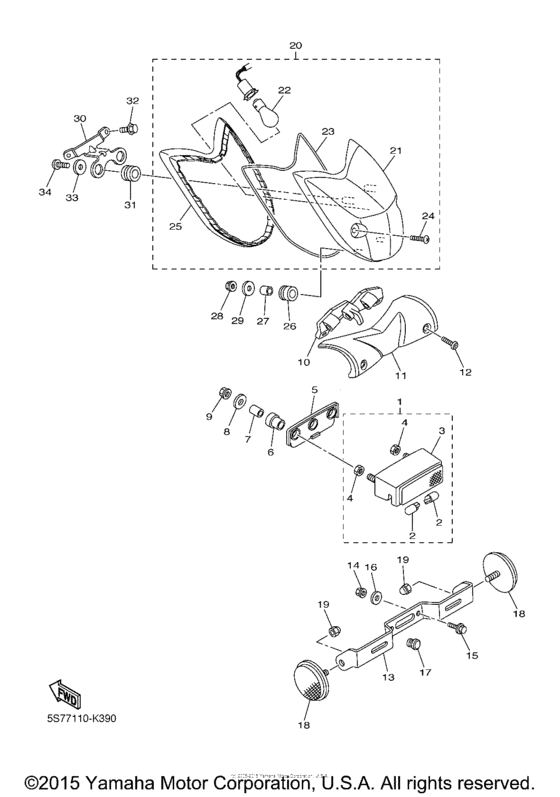

Taillight Diagram Yamaha XVS950 V-Star
- Year
- 2011
- Model code
- 5S78
- Sales region
- USA
- Базовая модель
- XVS95ACB
- Engine Capacity
- 950
- Model
- XVS950A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5C7-84745-00-00 License Light Unit Assy |
5C7-84745-00-00 |
from US $81.10 |
||
|
2
|
2
5PX-84744-00-00 Bulb (12V-2Cp)12V-2CP |
5PX-84744-00-00 |
from US $2.98 |
||
| replacements | |||||
|
2
|
2
3F9-84744-00-XX Bulb, Meter 12V3.8W12V-2CP |
3F9-84744-00-XX |
US $2.09 |
||
|
2
|
2
3F9-84744-00-00 Bulb, Meter 12V 3.8W12V-2CP |
3F9-84744-00-00 |
from US $2.09 |
||
|
3
|
3
5PX-84749-00-00 Body, License Light |
5PX-84749-00-00 |
from US $50.43 |
||
|
4
|
4
5PX-84748-00-00 Nut, Special |
5PX-84748-00-00 |
from US $1.70 |
||
|
5
|
5
5PX-84742-00-00 Seat, Base |
5PX-84742-00-00 |
from US $4.82 |
||
|
6
|
6
3F9-84553-00-00 Damper |
3F9-84553-00-00 |
from US $6.38 |
||
|
7
|
7
903-87062-51-00 Collar |
903-87062-51-00 |
from US $1.42 |
||
|
8
|
8
90201-05025-00 Washer, Plate |
90201-05025-00 |
from US $1.70 |
||
|
9
|
9
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
9
|
9
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
10
|
10
5S7-82522-00-00 Clamp, Coupler |
5S7-82522-00-00 |
from US $12.75 |
||
|
11
|
11
5S7-2163A-00-00 Cover, Rear Fender 1 |
5S7-2163A-00-00 |
from US $53.05 |
||
|
12
|
12
90111-06054-00 Bolt, Button Head |
90111-06054-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
92014-06014-00 Bolt, Button Head |
92014-06014-00 |
from US $1.52 |
||
|
13
|
13
5S7-84751-00-00 Bracket, License |
5S7-84751-00-00 |
from US $17 |
||
| replacement | |||||
|
13
|
13
5S7-84751-01-00 Bracket, License |
5S7-84751-01-00 |
from US $17 |
||
|
14
|
14
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.52 |
||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
17
|
17
903-38070-10-00 Plug |
903-38070-10-00 |
from US $1.42 |
||
|
18
|
18
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
19
|
19
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
20
|
20
5S7-84700-00-00 Taillight Assy |
5S7-84700-00-00 |
from US $230.58 |
||
|
21
|
21
5S7-84721-00-00 Lens, Taillight |
5S7-84721-00-00 |
from US $19.13 |
||
|
22
|
22
1A2-84714-41-00
Bulb
12V-21/5W |
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
22
|
22
1A2-84714-50-00 Bulb (12V-21/5W)12V-21/5W |
1A2-84714-50-00 |
from US $5.28 |
||
|
23
|
23
5S7-84723-00-00 Gasket, Tail Lens |
5S7-84723-00-00 |
from US $8.08 |
||
|
24
|
24
3D8-84726-00-00 Screw |
3D8-84726-00-00 |
from US $1.70 |
||
|
25
|
25
5S7-84736-00-00 Damper, Tail 1 |
5S7-84736-00-00 |
from US $16.58 |
||
|
26
|
26
904-80140-16-00 Grommet |
904-80140-16-00 |
from US $1.36 |
||
|
27
|
27
90387-064M9-00 Collar |
90387-064M9-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
28
|
28
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
28
|
28
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
29
|
29
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
29
|
29
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
30
|
30
5S7-84702-01-00 Bracket, Taillight |
5S7-84702-01-00 |
from US $14.76 |
||
|
31
|
31
90480-14004-00 Grommet |
90480-14004-00 |
from US $1.81 |
||
|
32
|
32
90105-06085-00 Bolt, Flange |
90105-06085-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
33
|
33
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.81 |
||
|
34
|
34
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
34
|
34
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
