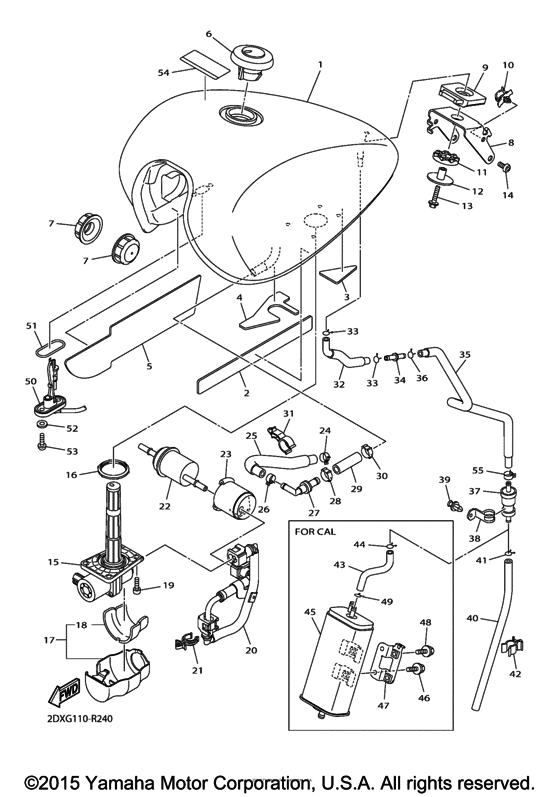

Fuel tank Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2016
- Model code
- 2DXG
- Sales region
- USA
- Базовая модель
- XVS95CGR
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-Y2410-00-X8 Fuel Tank CompUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
1TP-Y2410-00-X8 |
from US $723.24 |
||
| replacement | |||||
|
1
|
1
1TP-W2410-01-X8 Fuel Tank AssyUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
1TP-W2410-01-X8 |
US $887.44 |
||
|
1
|
1
1TP-Y2410-00-W2 Fuel Tank CompUse for Color YELLOWISH GRAY METALLIC 5 ( YNM5 / 0680 ) |
1TP-Y2410-00-W2 |
from US $761.83 |
||
| replacement | |||||
|
1
|
1
1TP-W2410-01-W2 Use for Color YELLOWISH GRAY METALLIC 5 ( YNM5 / 0680 ) |
1TP-W2410-01-W2 |
US $887.44 |
||
|
2
|
2
1TP-2414H-00-00 Damper, Plate 1 |
1TP-2414H-00-00 |
from US $4.96 |
||
|
3
|
3
1TP-2414J-00-00 Damper, Plate 2 |
1TP-2414J-00-00 |
from US $2.69 |
||
|
4
|
4
1TP-2414K-00-00 Damper, Plate 3 |
1TP-2414K-00-00 |
from US $4.82 |
||
|
5
|
5
1TP-24141-00-00 Protector, Fuel Tank |
1TP-24141-00-00 |
from US $21.11 |
||
| replacement | |||||
|
5
|
5
1TP-24141-01-00 PROTECTOR, FUEL TANK |
1TP-24141-01-00 |
from US $21.11 |
||
|
6
|
6
4NK-24602-20-00 Cap Assy |
4NK-24602-20-00 |
from US $106.80 |
||
|
7
|
7
1TP-24181-00-00 Damper, Locating 1 |
1TP-24181-00-00 |
from US $4.11 |
||
|
8
|
8
1TP-2413Y-00-00 Bracket, Tank Fitting |
1TP-2413Y-00-00 |
from US $11.48 |
||
|
9
|
9
1TP-24182-00-00 Damper, Locating 2 |
1TP-24182-00-00 |
from US $6.38 |
||
|
10
|
10
90464-14001-00 Clamp |
90464-14001-00 |
from US $1.70 |
||
|
11
|
11
1TP-24183-00-00 Damper, Locating 3 |
1TP-24183-00-00 |
from US $2.55 |
||
|
12
|
12
90387-06177-00 Collar |
90387-06177-00 |
from US $8.78 |
||
|
13
|
13
95812-06030-00 Bolt, Flange |
95812-06030-00 |
from US $1.42 |
||
|
14
|
14
92012-08012-00 Bolt, Button Head |
92012-08012-00 |
from US $1.56 |
||
|
15
|
15
1TP-13907-00-00 Fuel Pump Comp |
1TP-13907-00-00 |
from US $608.26 |
||
|
16
|
16
1TP-24486-00-00 O-Ring |
1TP-24486-00-00 |
from US $10.63 |
||
|
17
|
17
1TP-24474-00-00 Cover |
1TP-24474-00-00 |
from US $11.90 |
||
|
18
|
18
1TP-2414N-00-00 Damper, Plate 4 |
1TP-2414N-00-00 |
from US $4.11 |
||
|
19
|
19
91312-05016-00 Bolt |
91312-05016-00 |
US $1.42 |
||
| replacement | |||||
|
19
|
19
91317-05016-00 Bolt |
91317-05016-00 |
from US $1.22 |
||
|
20
|
20
1TP-24330-00-00 Fuel Pipe Assy. 2 |
1TP-24330-00-00 |
from US $91.46 |
||
| replacement | |||||
|
20
|
20
1TP-24330-01-00 Fuel Pipe Assy |
1TP-24330-01-00 |
from US $91.46 |
||
|
21
|
21
90464-16240-00 Clamp |
90464-16240-00 |
from US $1.84 |
||
|
22
|
22
1TP-13915-00-00 Filter |
1TP-13915-00-00 |
from US $68.41 |
||
|
23
|
23
1TP-24398-00-00 Band 1 |
1TP-24398-00-00 |
from US $7.79 |
||
|
24
|
24
90467-12003-00 Clip |
90467-12003-00 |
from US $3.54 |
||
|
25
|
25
1TP-24315-00-00 Pipe 5 |
1TP-24315-00-00 |
US $50.81 |
||
| replacement | |||||
|
25
|
25
1TP-24315-01-00 Pipe 5 |
1TP-24315-01-00 |
US $43.47 |
||
|
26
|
26
90467-12003-00 Clip |
90467-12003-00 |
from US $3.54 |
||
|
27
|
27
1TP-14860-00-00 Check Valve Assy |
1TP-14860-00-00 |
from US $21.54 |
||
|
28
|
28
904-67150-A6-00 Clip |
904-67150-A6-00 |
from US $3.83 |
||
|
29
|
29
1TP-24314-00-00 Pipe 4 |
1TP-24314-00-00 |
from US $6.80 |
||
| replacement | |||||
|
29
|
29
1TP-24314-01-00 Pipe 4 |
1TP-24314-01-00 |
from US $6.80 |
||
|
30
|
30
904-67150-A6-00 Clip |
904-67150-A6-00 |
from US $3.83 |
||
|
31
|
31
904-64170-09-00 Clamp |
904-64170-09-00 |
from US $4.39 |
||
|
32
|
32
1TP-24313-00-00 Pipe 3 |
1TP-24313-00-00 |
from US $13.46 |
||
|
33
|
33
904-67091-03-00
Clip
|
904-67091-03-00 |
— | ||
| replacement | |||||
|
33
|
33
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
34
|
34
4XY-14568-00-00 Joint |
4XY-14568-00-00 |
from US $1.94 |
||
|
35
|
35
1TP-24316-00-00 Pipe 6 |
1TP-24316-00-00 |
from US $31.03 |
||
|
36
|
36
904-67091-03-00
Clip
|
904-67091-03-00 |
— | ||
| replacement | |||||
|
36
|
36
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
37
|
37
5PX-24180-00-00 Roll Over Valve Assy |
5PX-24180-00-00 |
from US $40.20 |
||
|
38
|
38
1TP-24136-00-00 Clamp 2 |
1TP-24136-00-00 |
from US $5.10 |
||
|
39
|
39
902-69050-05-00 Rivet |
902-69050-05-00 |
from US $1.81 |
||
|
40
|
40
90445-11730-00 Hose (L400) |
90445-11730-00 |
from US $15.44 |
||
| replacement | |||||
|
40
|
40
90445-116K9-00 Hose (L400)Hose (l400) |
90445-116K9-00 |
from US $16.37 |
||
|
41
|
41
904-67091-03-00
Clip
|
904-67091-03-00 |
— | ||
| replacement | |||||
|
41
|
41
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
42
|
42
904-64120-15-00 Clamp |
904-64120-15-00 |
from US $1.04 |
||
|
43
|
43
1TP-2486A-00-00 Pipe 1FOR CALIFORNIA |
1TP-2486A-00-00 |
US $13.37 |
||
|
44
|
44
904-67091-03-00
Clip
FOR CALIFORNIA |
904-67091-03-00 |
— | ||
| replacement | |||||
|
44
|
44
904-67090-A2-00 ClipFOR CALIFORNIA |
904-67090-A2-00 |
from US $1.66 |
||
|
45
|
45
5PX-24170-00-00 Canister AssyFOR CALIFORNIA |
5PX-24170-00-00 |
from US $251.45 |
||
|
46
|
46
95802-06010-00 Bolt, FlangeFOR CALIFORNIA |
95802-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
46
|
46
95817-06010-00 Bolt, FlangeFOR CALIFORNIA |
95817-06010-00 |
from US $1.18 |
||
|
46
|
46
95812-06010-00 Bolt, FlangeFOR CALIFORNIA |
95812-06010-00 |
from US $1.07 |
||
|
47
|
47
1TP-2413X-00-00 PlateFOR CALIFORNIA |
1TP-2413X-00-00 |
from US $7.79 |
||
|
48
|
48
95827-06014-00 Bolt, FlangeFOR CALIFORNIA |
95827-06014-00 |
from US $1.18 |
||
| replacement | |||||
|
48
|
48
95817-06014-00 Bolt, FlangeFOR CALIFORNIA |
95817-06014-00 |
from US $1.18 |
||
|
49
|
49
904-67091-03-00
Clip
FOR CALIFORNIA |
904-67091-03-00 |
— | ||
| replacement | |||||
|
49
|
49
904-67090-A2-00 ClipFOR CALIFORNIA |
904-67090-A2-00 |
from US $1.66 |
||
|
50
|
50
1TP-85752-00-00 Sender Unit Assy, Fuel Meter |
1TP-85752-00-00 |
from US $74.61 |
||
| replacement | |||||
|
50
|
50
1TP-85752-01-00 |
1TP-85752-01-00 |
from US $74.61 |
||
|
51
|
51
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.38 |
||
|
52
|
52
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
52
|
52
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
53
|
53
90149-06108-00 Screw |
90149-06108-00 |
from US $1.42 |
||
|
54
|
54
1TP-2118K-00-00 Label, Caution |
1TP-2118K-00-00 |
US $5.20 |
||
|
55
|
55
90467-09001-00 Clip |
90467-09001-00 |
from US $1.70 |
||
