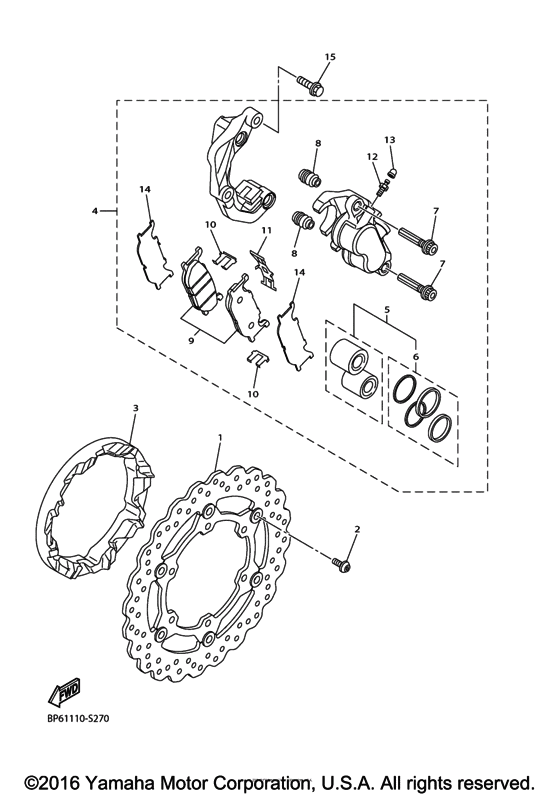

Front brake caliper Diagram Yamaha XVS950 Bolt
- Year
- 2017
- Colour
- Black Metallic X
- Model code
- BP62
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCB
- Engine Capacity
- 950
- Color Variant
- A
- Model
- XVS950C (Bolt)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-2581T-00-00 Disc Brake Assy |
1TP-2581T-00-00 |
from US $204.54 |
||
|
2
|
2
90109-081F0-00 Bolt |
90109-081F0-00 |
from US $2.27 |
||
| replacements | |||||
|
2
|
2
90109-08789-00 Bolt (34L) |
90109-08789-00 |
from US $2.27 |
||
|
2
|
2
901-11080-53-00 Bolt,hex. Socket Button |
901-11080-53-00 |
from US $1.77 |
||
|
3
|
3
BP6-2514A-00-00 RING, WHEEL 1 |
BP6-2514A-00-00 |
from US $29.75 |
||
|
4
|
4
27D-2580T-00-00 Caliper Assy (Left) |
27D-2580T-00-00 |
from US $381.92 |
||
|
5
|
5
3YX-W0057-00-00 Piston Assy, Caliper |
3YX-W0057-00-00 |
from US $46.70 |
||
|
6
|
6
3JB-W0047-00-00
Caliper Seal Kit
|
3JB-W0047-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3JB-25803-00-00 Caliper Seal Kit |
3JB-25803-00-00 |
from US $28.02 |
||
|
7
|
7
5JW-25914-10-00 Pin, Slide |
5JW-25914-10-00 |
from US $5.68 |
||
|
8
|
8
4TT-25937-00-00 Boot 2 |
4TT-25937-00-00 |
from US $9.44 |
||
|
9
|
9
5S7-W0045-00-00 Brake Pad Kit |
5S7-W0045-00-00 |
from US $72.47 |
||
| replacement | |||||
|
9
|
9
5S7-25805-00-00 Brake Pad Kit |
5S7-25805-00-00 |
from US $72.47 |
||
|
10
|
10
4BP-25919-00-00 Support, Pad |
4BP-25919-00-00 |
from US $17.48 |
||
|
11
|
11
3YX-25929-00-00 Spring, Anti Rattle |
3YX-25929-00-00 |
from US $22.20 |
||
|
12
|
12
47X-25824-01-00 Screw, Bleed |
47X-25824-01-00 |
from US $7.79 |
||
|
13
|
13
1D7-25825-00-00 Cap |
1D7-25825-00-00 |
from US $1.56 |
||
|
14
|
14
4DN-25827-00-00 Shim, Caliper |
4DN-25827-00-00 |
from US $18.28 |
||
|
15
|
15
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
