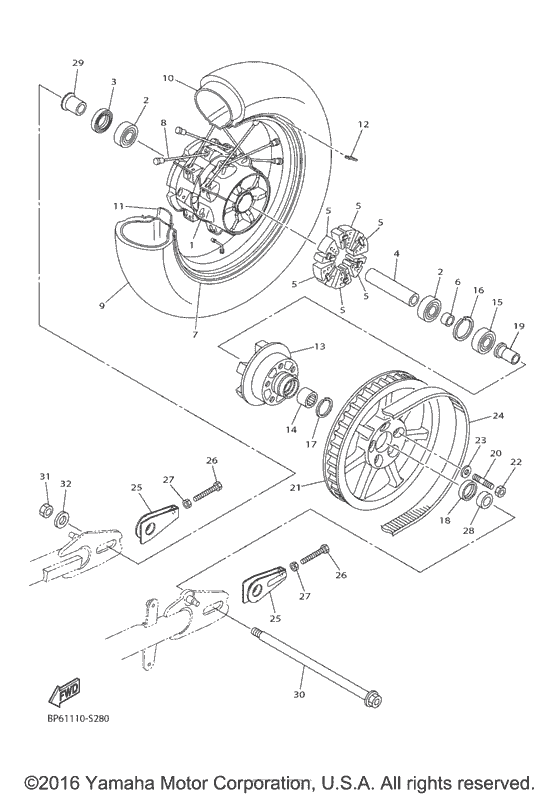

Rear wheel Diagram Yamaha XVS950 Bolt
- Year
- 2017
- Colour
- Black Metallic X
- Model code
- BP62
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCB
- Engine Capacity
- 950
- Color Variant
- A
- Model
- XVS950C (Bolt)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BP6-25311-00-00 HUB, REAR |
BP6-25311-00-00 |
from US $969.05 |
||
|
2
|
2
93306-20417-00 Bearing |
93306-20417-00 |
from US $26.92 |
||
| replacement | |||||
|
2
|
2
93306-20469-00 Bearing |
93306-20469-00 |
from US $30.79 |
||
|
3
|
3
93106-28023-00 Oil Seal |
93106-28023-00 |
from US $5.13 |
||
|
4
|
4
1TP-25317-00-00 Spacer, Bearing |
1TP-25317-00-00 |
from US $10.06 |
||
|
5
|
5
4WM-25364-00-00 Damper |
4WM-25364-00-00 |
from US $10.91 |
||
|
6
|
6
1TP-25383-00-00 Collar, Wheel |
1TP-25383-00-00 |
from US $10.48 |
||
|
7
|
7
94435-16005-00 RIM |
94435-16005-00 |
from US $478.76 |
||
|
8
|
8
BP6-25304-00-00 SPOKE SET, REAR |
BP6-25304-00-00 |
from US $140.92 |
||
|
9
|
9
94115-16033-00 TIREBRIDGESTONE |
94115-16033-00 |
US $528.30 |
||
|
10
|
10
94215-16003-00 TUBEBRIDGESTONE |
94215-16003-00 |
US $84.91 |
||
|
11
|
11
94315-16178-00 Band, Rim (3.50-16)BRIDGESTONE |
94315-16178-00 |
from US $4.58 |
||
|
12
|
12
2CR-25398-00-00 Balancer, Wheel (5G)UN |
2CR-25398-00-00 |
from US $3.54 |
||
|
13
|
13
1TP-25366-00-00 Clutch, Hub |
1TP-25366-00-00 |
from US $149.21 |
||
|
14
|
14
933-11326-98-00 Bearing |
933-11326-98-00 |
from US $41.45 |
||
|
15
|
15
933-06304-37-00 Bearing |
933-06304-37-00 |
from US $13.04 |
||
|
16
|
16
99009-52500-00 Circlip |
99009-52500-00 |
from US $5.40 |
||
|
17
|
17
93450-35163-00 Circlip |
93450-35163-00 |
from US $5.22 |
||
|
18
|
18
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.21 |
||
|
19
|
19
4WM-25376-10-00 Collar, Wheel |
4WM-25376-10-00 |
from US $36.20 |
||
|
20
|
20
95612-12630-00 Bolt, Stud |
95612-12630-00 |
from US $5.67 |
||
|
21
|
21
1TP-25470-00-00 Sprocket, Driven(70T) |
1TP-25470-00-00 |
from US $545.60 |
||
|
22
|
22
95614-12100-00 Nut, U |
95614-12100-00 |
from US $3.40 |
||
|
23
|
23
90201-12045-00 Washer, Plate |
90201-12045-00 |
from US $1.70 |
||
|
24
|
24
1TP-46241-10-00 V-BELT |
1TP-46241-10-00 |
from US $428.30 |
||
|
25
|
25
1TP-25388-00-00 Puller, Chain 1 |
1TP-25388-00-00 |
from US $12.75 |
||
|
26
|
26
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.81 |
||
|
27
|
27
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.56 |
||
|
28
|
28
903-87200-34-00 Collar |
903-87200-34-00 |
from US $9.07 |
||
|
29
|
29
903-87202-U8-00 Collar |
903-87202-U8-00 |
US $18.70 |
||
| replacement | |||||
|
29
|
29
90387-2000B-00
Collar
|
90387-2000B-00 |
— | ||
|
30
|
30
1TP-25381-00-00 Axle, Wheel |
1TP-25381-00-00 |
from US $55.13 |
||
|
31
|
31
901-85180-09-00 Nut, Self-Locking |
901-85180-09-00 |
from US $8.32 |
||
|
32
|
32
90201-18020-00 Washer, Plate |
90201-18020-00 |
from US $1.70 |
||
