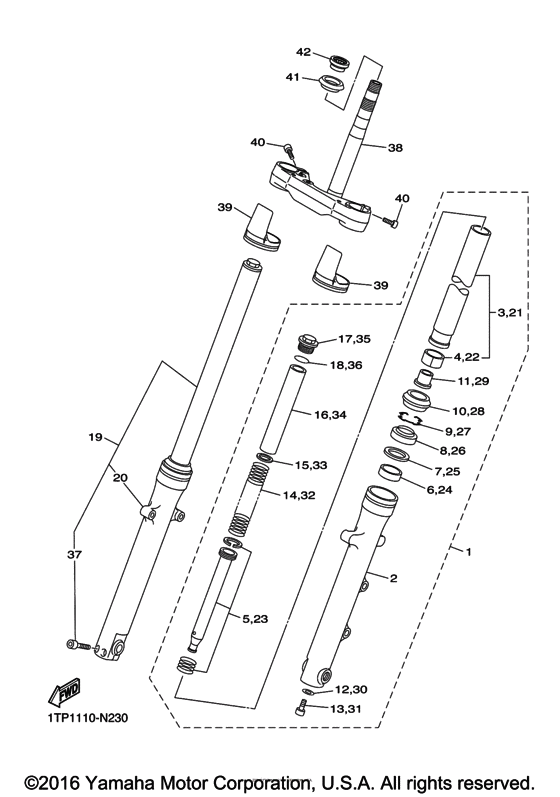

Front fork Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2017
- Model code
- BS52
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCS
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-23102-01-00 Front Fork Assy (L.h) |
1TP-23102-01-00 |
from US $798.37 |
||
|
2
|
2
1TP-23126-01-00 Tube, Outer (L.h) |
1TP-23126-01-00 |
from US $406.47 |
||
|
3
|
3
1TP-23110-01-00 Inner Tube Comp. 1 |
1TP-23110-01-00 |
from US $328.82 |
||
|
4
|
4
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.14 |
||
|
5
|
5
1TP-23170-01-00 Cylinder Comp., Front Fork |
1TP-23170-01-00 |
from US $41.03 |
||
|
6
|
6
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
7
|
7
1TP-23146-00-00 Washer, Oil Seal |
1TP-23146-00-00 |
from US $7.23 |
||
| replacement | |||||
|
7
|
7
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
8
|
8
4EB-23145-01-00 Oil Seal |
4EB-23145-01-00 |
from US $8.76 |
||
|
9
|
9
1TP-23156-00-00 Ring, Snap |
1TP-23156-00-00 |
from US $3.19 |
||
| replacement | |||||
|
9
|
9
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
10
|
10
4EB-23144-00-00 Seal, Dust |
4EB-23144-00-00 |
from US $10.78 |
||
|
11
|
11
1TP-23173-00-00 Spindle, Taper |
1TP-23173-00-00 |
from US $18.56 |
||
|
12
|
12
1TP-23158-00-00 Gasket |
1TP-23158-00-00 |
from US $3.54 |
||
| replacement | |||||
|
12
|
12
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
13
|
13
1TP-23181-00-00 Bolt, Hexagon Socket Head |
1TP-23181-00-00 |
from US $4.82 |
||
| replacement | |||||
|
13
|
13
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
14
|
14
1TP-23141-01-00 Spring, Front Fork |
1TP-23141-01-00 |
from US $28.05 |
||
|
15
|
15
1TP-23149-00-00 Washer, Spring Upper |
1TP-23149-00-00 |
from US $2.98 |
||
|
16
|
16
1TP-23118-00-00 Spacer |
1TP-23118-00-00 |
from US $14.45 |
||
|
17
|
17
1TP-23111-00-00 Bolt, Cap |
1TP-23111-00-00 |
from US $29.75 |
||
|
18
|
18
1TP-23188-00-00 O-Ring |
1TP-23188-00-00 |
from US $3.40 |
||
|
19
|
19
1TP-23103-01-00 Front Fork Assy (R.h) |
1TP-23103-01-00 |
from US $798.37 |
||
|
20
|
20
1TP-23136-01-00 Tube, Outer 2 |
1TP-23136-01-00 |
from US $406.47 |
||
|
21
|
21
1TP-23110-01-00 Inner Tube Comp. 1 |
1TP-23110-01-00 |
from US $328.82 |
||
|
22
|
22
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.14 |
||
|
23
|
23
1TP-23170-01-00 Cylinder Comp., Front Fork |
1TP-23170-01-00 |
from US $41.03 |
||
|
24
|
24
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
25
|
25
1TP-23146-00-00 Washer, Oil Seal |
1TP-23146-00-00 |
from US $7.23 |
||
| replacement | |||||
|
25
|
25
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
26
|
26
4EB-23145-01-00 Oil Seal |
4EB-23145-01-00 |
from US $8.76 |
||
|
27
|
27
1TP-23156-00-00 Ring, Snap |
1TP-23156-00-00 |
from US $3.19 |
||
| replacement | |||||
|
27
|
27
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
28
|
28
4EB-23144-00-00 Seal, Dust |
4EB-23144-00-00 |
from US $10.78 |
||
|
29
|
29
1TP-23173-00-00 Spindle, Taper |
1TP-23173-00-00 |
from US $18.56 |
||
|
30
|
30
1TP-23158-00-00 Gasket |
1TP-23158-00-00 |
from US $3.54 |
||
| replacement | |||||
|
30
|
30
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
31
|
31
1TP-23181-00-00 Bolt, Hexagon Socket Head |
1TP-23181-00-00 |
from US $4.82 |
||
| replacement | |||||
|
31
|
31
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
32
|
32
1TP-23141-01-00 Spring, Front Fork |
1TP-23141-01-00 |
from US $28.05 |
||
|
33
|
33
1TP-23149-00-00 Washer, Spring Upper |
1TP-23149-00-00 |
from US $2.98 |
||
|
34
|
34
1TP-23118-00-00 Spacer |
1TP-23118-00-00 |
from US $14.45 |
||
|
35
|
35
1TP-23111-00-00 Bolt, Cap |
1TP-23111-00-00 |
from US $29.75 |
||
|
36
|
36
1TP-23188-00-00 O-Ring |
1TP-23188-00-00 |
from US $3.40 |
||
|
37
|
37
1TP-2311H-00-00 Fork Bolt |
1TP-2311H-00-00 |
from US $3.26 |
||
| replacement | |||||
|
37
|
37
91314-08035-00 Bolt, Hexagon Socket Head |
91314-08035-00 |
from US $3.60 |
||
|
38
|
38
1TP-23340-00-00 Under Bracket Comp |
1TP-23340-00-00 |
from US $508.52 |
||
| replacement | |||||
|
38
|
38
1TP-23340-01-00 Under Bracket Comp. |
1TP-23340-01-00 |
from US $514.23 |
||
|
39
|
39
4PU-2331G-00-00 Cover |
4PU-2331G-00-00 |
from US $9.29 |
||
|
40
|
40
91314-10020-00 Bolt, Hexagon Socket Head |
91314-10020-00 |
from US $3.68 |
||
|
41
|
41
3FV-23462-00-00 Seal, Steering |
3FV-23462-00-00 |
from US $18.86 |
||
|
42
|
42
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.49 |
||
