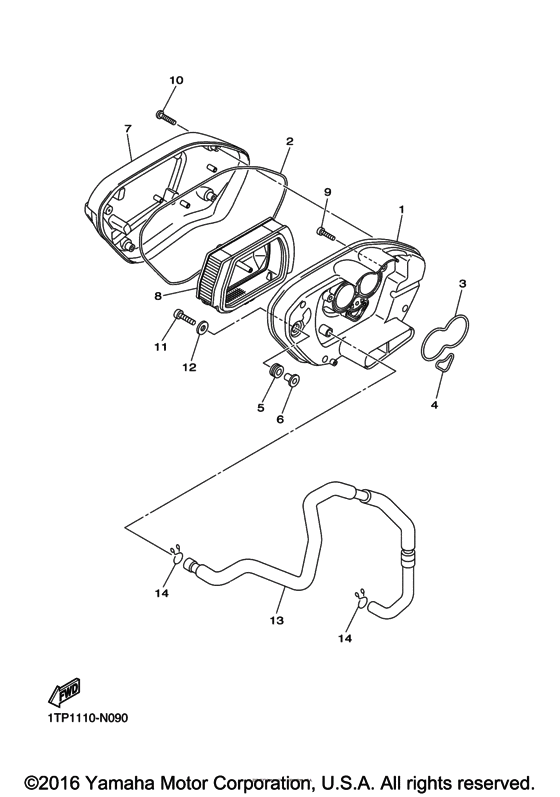

Intake 2 Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2017
- Model code
- BS52
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCS
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-14411-00-00 Case, Air Cleaner 1 |
1TP-14411-00-00 |
from US $58.17 |
||
|
2
|
2
1TP-14452-00-00 Seal |
1TP-14452-00-00 |
from US $8.78 |
||
|
3
|
3
3D8-14457-00-00 Seal |
3D8-14457-00-00 |
from US $4.68 |
||
|
4
|
4
3D8-14462-00-00 Seal |
3D8-14462-00-00 |
from US $2.69 |
||
|
5
|
5
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
6
|
6
903-87063-E6-00
Collar
|
903-87063-E6-00 |
— | ||
| replacement | |||||
|
6
|
6
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
7
|
7
1XC-14402-00-00 Cap Assy, Air Cleaner |
1XC-14402-00-00 |
from US $172.70 |
||
|
8
|
8
1TP-14451-00-00 Element, Air Cleaner |
1TP-14451-00-00 |
from US $47.80 |
||
|
9
|
9
91312-05025-00 Bolt |
91312-05025-00 |
from US $1.42 |
||
|
10
|
10
90111-05024-00 Bolt, Hex. Socket Button |
90111-05024-00 |
from US $1.81 |
||
|
11
|
11
913-12060-25-00
Bolt
|
913-12060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.18 |
||
|
12
|
12
90201-06062-00 Washer, Plate |
90201-06062-00 |
from US $1.81 |
||
|
13
|
13
1TP-11166-00-00 Pipe, Breather 1 |
1TP-11166-00-00 |
from US $64.80 |
||
|
14
|
14
90467-16195-00 Clip |
90467-16195-00 |
US $3.68 |
||
| replacement | |||||
|
14
|
14
90467-15M14-00 Clip |
90467-15M14-00 |
from US $3.68 |
||
