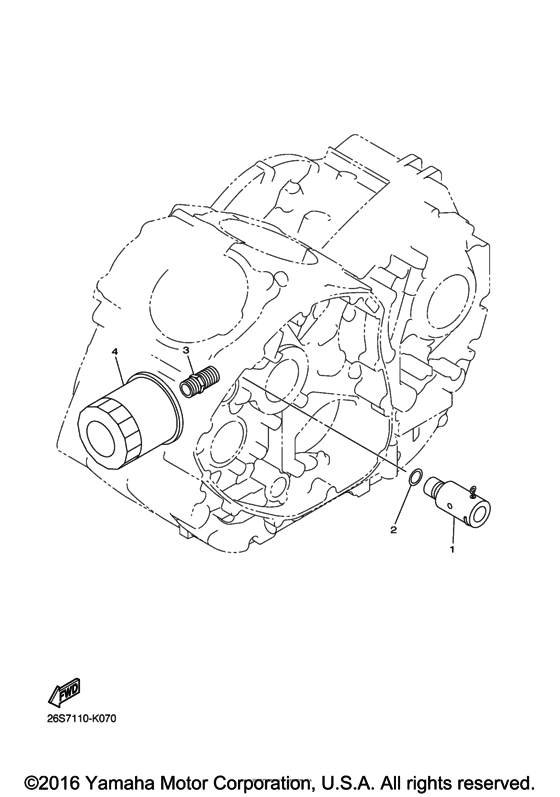

Oil cleaner Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2017
- Model code
- BS52
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCS
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-13490-00-00 Relief Valve Assy |
3D8-13490-00-00 |
from US $23.09 |
||
|
2
|
2
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
||
|
3
|
3
904-01200-08-00 Bolt, Union |
904-01200-08-00 |
from US $9.44 |
||
|
4
|
4
5GH-13440-50-00
Element Assy, Oil Cleaner
|
5GH-13440-50-00 |
— | ||
| replacements | |||||
|
4
|
4
5GH-13440-80-00 Element Assy, Oil Cleaner |
5GH-13440-80-00 |
US $22.20 |
||
|
4
|
4
5GH-13440-61-00 ELEMENT ASSY, OIL CLEANER |
5GH-13440-61-00 |
from US $18.45 |
||
|
4
|
4
5GH-13440-61-00 ELEMENT ASSY, OIL CLEANER |
5GH-13440-61-00 |
from US $18.45 |
||
|
4
|
4
5GH-13440-61-00 ELEMENT ASSY, OIL CLEANER |
5GH-13440-61-00 |
from US $18.45 |
||
