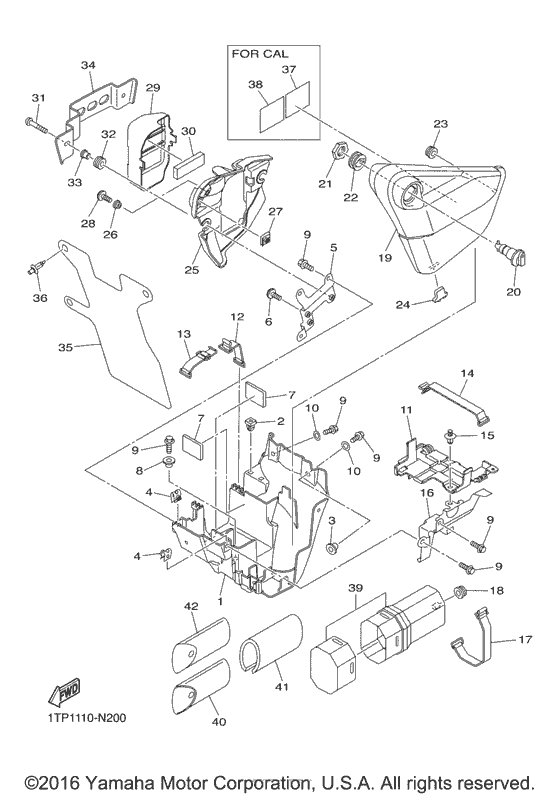

Side cover Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2017
- Model code
- BS52
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCS
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-2177G-00-00 Box, Battery |
1TP-2177G-00-00 |
from US $15.87 |
||
|
2
|
2
904-80070-03-00 Grommet |
904-80070-03-00 |
from US $1.42 |
||
|
3
|
3
903-87062-39-00 Collar |
903-87062-39-00 |
from US $1.42 |
||
|
4
|
4
90183-060A6-00 Nut, Spring |
90183-060A6-00 |
from US $1.98 |
||
|
5
|
5
1TP-2172E-00-00 Stay, Side Cover 1 |
1TP-2172E-00-00 |
from US $8.64 |
||
|
6
|
6
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
7
|
7
5S7-2139X-00-00 Damper |
5S7-2139X-00-00 |
from US $1.42 |
||
|
8
|
8
903-87062-67-00 Collar |
903-87062-67-00 |
from US $1.56 |
||
|
9
|
9
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.52 |
||
|
10
|
10
90201-062P7-00 Washer, Plate |
90201-062P7-00 |
from US $1.84 |
||
|
11
|
11
1TP-2177A-00-00 Box |
1TP-2177A-00-00 |
from US $6.80 |
||
|
12
|
12
3TJ-82131-00-00 Band, Battery |
3TJ-82131-00-00 |
from US $10.96 |
||
|
13
|
13
1TP-82131-00-00 Band, Battery |
1TP-82131-00-00 |
from US $7.79 |
||
|
14
|
14
18G-82131-00-00 Band, Battery |
18G-82131-00-00 |
US $7.37 |
||
| replacement | |||||
|
14
|
14
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
15
|
15
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
16
|
16
1TP-28170-00-00 Holder, Tool |
1TP-28170-00-00 |
from US $12.33 |
||
|
17
|
17
18G-82131-00-00 Band, Battery |
18G-82131-00-00 |
US $7.37 |
||
| replacement | |||||
|
17
|
17
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
18
|
18
90480-20001-00 Grommet |
90480-20001-00 |
from US $2.41 |
||
|
19
|
19
1TP-21711-00-00 Cover, Side 1 |
1TP-21711-00-00 |
from US $8.78 |
||
|
20
|
20
55K-21708-00-00 Lock Assy 2 |
55K-21708-00-00 |
from US $49.46 |
||
|
21
|
21
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
22
|
22
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
23
|
23
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
23
|
23
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.50 |
||
|
24
|
24
2N4-21717-00-00 Damper |
2N4-21717-00-00 |
from US $3.74 |
||
|
25
|
25
1TP-21721-00-00 Cover, Side 2 |
1TP-21721-00-00 |
from US $8.78 |
||
|
26
|
26
90387-06173-00 Collar |
90387-06173-00 |
from US $2.55 |
||
|
27
|
27
90183-060A6-00 Nut, Spring |
90183-060A6-00 |
from US $1.98 |
||
|
28
|
28
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
29
|
29
1TP-2124E-00-00 Cover, Battery |
1TP-2124E-00-00 |
from US $6.09 |
||
|
30
|
30
4D3-24181-00-00 Damper, Locating 1 |
4D3-24181-00-00 |
from US $1.84 |
||
|
31
|
31
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.70 |
||
|
32
|
32
904-80140-03-00 Grommet |
904-80140-03-00 |
from US $1.81 |
||
|
33
|
33
90387-0602X-00 Collar |
90387-0602X-00 |
from US $6.38 |
||
|
34
|
34
1TP-2176E-00-00 Plate |
1TP-2176E-00-00 |
from US $25.93 |
||
|
35
|
35
1TP-2172W-00-00 Cover |
1TP-2172W-00-00 |
from US $12.89 |
||
|
36
|
36
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.66 |
||
|
37
|
37
5RU-21686-00-00 Plate, Routing 2FOR CALIFORNIA |
5RU-21686-00-00 |
from US $2.27 |
||
|
38
|
38
34B-21684-00-00 Plate, RoutingFOR CALIFORNIA |
34B-21684-00-00 |
from US $1.56 |
||
|
39
|
39
BL3-21107-00-00 TOOL BOX COMP. |
BL3-21107-00-00 |
from US $20.54 |
||
|
40
|
40
3D8-28100-10-00 Tool Kit |
3D8-28100-10-00 |
from US $27.49 |
||
| replacement | |||||
|
40
|
40
3D8-28100-11-00 |
3D8-28100-11-00 |
from US $27.49 |
||
|
41
|
41
905-20080-03-00 Damper, Plate |
905-20080-03-00 |
from US $3.12 |
||
|
42
|
42
1TP-28110-00-00 Tool Kit, 2 |
1TP-28110-00-00 |
from US $21.96 |
||
| replacement | |||||
|
42
|
42
1TP-28110-01-00 |
1TP-28110-01-00 |
from US $21.96 |
||
