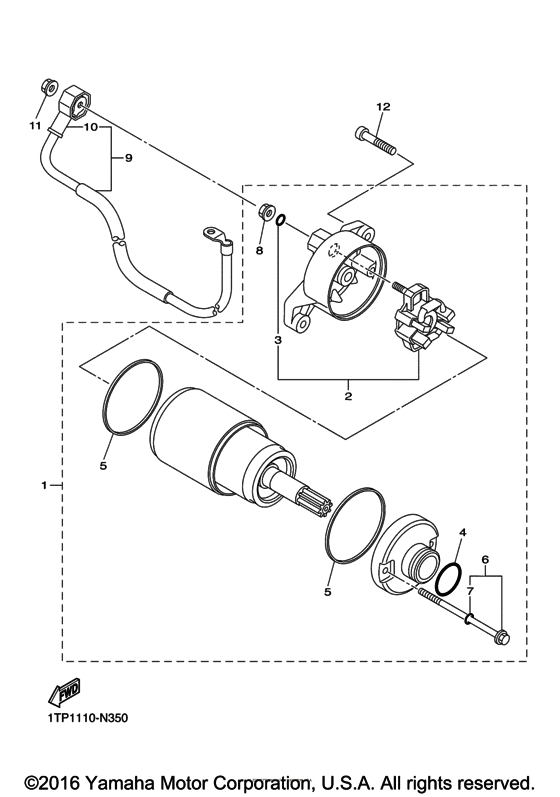

Starting motor Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2017
- Model code
- BS52
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCS
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-81890-00-00 Motor Assy |
1TP-81890-00-00 |
from US $361.46 |
||
| replacement | |||||
|
1
|
1
1TP-81890-01-00 Motor Assy |
1TP-81890-01-00 |
from US $361.46 |
||
|
2
|
2
4B5-81840-00-00 Brush Holder Assy |
4B5-81840-00-00 |
from US $74.61 |
||
|
3
|
3
3TB-81847-00-00 O-Ring |
3TB-81847-00-00 |
from US $2.69 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1FK-81847-00-00
O-Ring
|
1FK-81847-00-00 |
— | ||
| replacement | |||||
|
4
|
4
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
5
|
5
35C-81844-00-00 Gasket |
35C-81844-00-00 |
from US $20.97 |
||
|
6
|
6
28P-81826-00-00 Bolt |
28P-81826-00-00 |
from US $14.45 |
||
|
7
|
7
3TB-81847-00-00 O-Ring |
3TB-81847-00-00 |
from US $2.69 |
||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
9
|
9
1TP-81815-00-00 Cord, Starter Motor |
1TP-81815-00-00 |
from US $57.61 |
||
|
10
|
10
4B5-81871-00-00 Cap |
4B5-81871-00-00 |
from US $4.68 |
||
|
11
|
11
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
12
|
12
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
