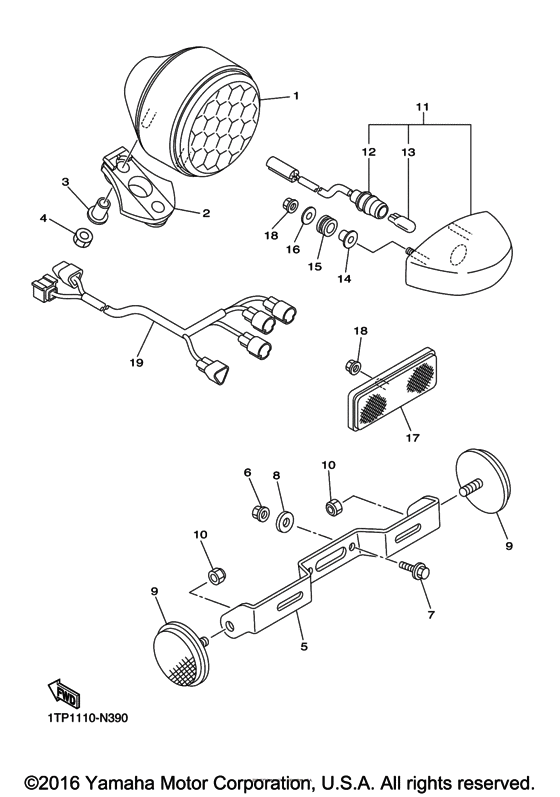

Taillight Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2017
- Model code
- BS52
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCS
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-84700-00-00 Taillight Assy |
1TP-84700-00-00 |
from US $248.54 |
||
|
2
|
2
1TP-84736-00-00 Damper, Tail 1 |
1TP-84736-00-00 |
from US $4.58 |
||
|
3
|
3
90387-06161-00 Collar |
90387-06161-00 |
from US $2.91 |
||
|
4
|
4
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
5
|
5
5S7-84751-01-00 Bracket, License |
5S7-84751-01-00 |
from US $17 |
||
|
6
|
6
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.52 |
||
|
8
|
8
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
9
|
9
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
10
|
10
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
11
|
11
1TP-84740-00-00 Licence Light Assy |
1TP-84740-00-00 |
from US $26.78 |
||
|
12
|
12
1TP-84547-00-00 Cord, License Light |
1TP-84547-00-00 |
from US $11.62 |
||
|
13
|
13
1TP-84347-00-00 Bulb (W5W-12V) |
1TP-84347-00-00 |
from US $4.43 |
||
| replacement | |||||
|
13
|
13
1WD-H4347-00-00 Bulb (12V-5W) |
1WD-H4347-00-00 |
from US $4.99 |
||
|
14
|
14
90387-05003-00 Collar |
90387-05003-00 |
from US $4.39 |
||
| replacement | |||||
|
14
|
14
90387-05816-00
Collar
|
90387-05816-00 |
— | ||
|
15
|
15
90480-11008-00 Grommet |
90480-11008-00 |
from US $3.54 |
||
|
16
|
16
90201-054K4-00 Washer, Plate(81H) |
90201-054K4-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
90201-05556-00 Washer, Plate |
90201-05556-00 |
from US $1.42 |
||
|
17
|
17
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
18
|
18
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
18
|
18
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
19
|
19
1TP-84717-01-00 Cord, Taillight |
1TP-84717-01-00 |
from US $43.24 |
||
