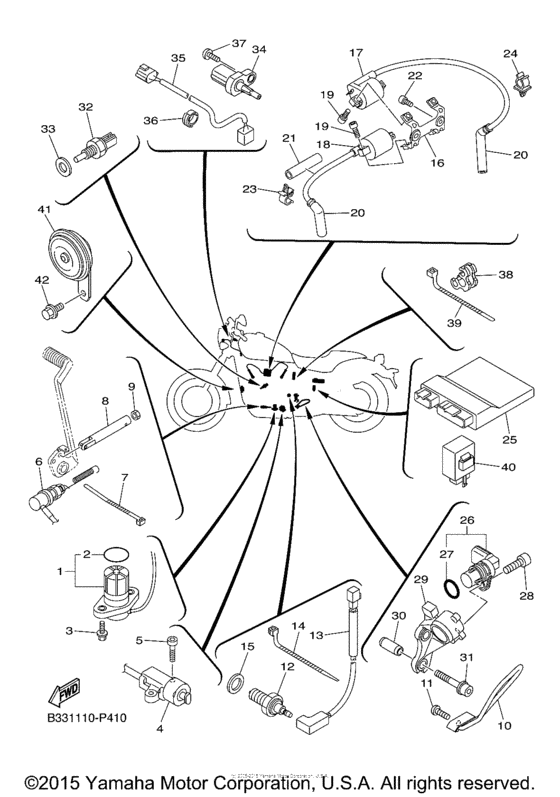

Electrical (1) Diagram Yamaha XVS950 Bolt C-Spec
- Year
- 2015
- Model code
- B332
- Sales region
- USA
- Базовая модель
- XVS95CRFCS
- Engine Capacity
- 950
- Model
- XVS950CR (Bolt C-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5S7-85720-00-00 Oil Level Gauge Assy |
5S7-85720-00-00 |
from US $56.84 |
||
|
2
|
2
5VY-8A8E0-00-00 O-Ring |
5VY-8A8E0-00-00 |
from US $7.76 |
||
|
3
|
3
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.66 |
||
|
4
|
4
5XT-82566-00-00 Switch, Side Stand |
5XT-82566-00-00 |
from US $51.95 |
||
|
5
|
5
91317-05016-00 Bolt |
91317-05016-00 |
from US $1.22 |
||
|
6
|
6
B33-82530-00-00 Stop Switch Assy |
B33-82530-00-00 |
from US $35.37 |
||
| replacement | |||||
|
6
|
6
BL3-82530-00-00 Stop Switch Assy |
BL3-82530-00-00 |
from US $35.37 |
||
|
7
|
7
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
8
|
8
B33-27222-00-00 Joint |
B33-27222-00-00 |
from US $31.03 |
||
|
9
|
9
95307-08600-00 Nut, Hex |
95307-08600-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
95337-08600-00 Nut |
95337-08600-00 |
from US $1.52 |
||
|
10
|
10
B33-27267-00-00 Guide, Wire |
B33-27267-00-00 |
from US $21.64 |
||
|
11
|
11
92017-08012-00 Bolt, Button Head |
92017-08012-00 |
from US $1.66 |
||
|
12
|
12
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $20.25 |
||
|
13
|
13
5S7-82509-10-00 Wire, Sub Lead |
5S7-82509-10-00 |
from US $5.38 |
||
|
14
|
14
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
15
|
15
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
16
|
16
3D8-21359-01-00 Bracket, Coil |
3D8-21359-01-00 |
from US $16.58 |
||
|
17
|
17
1TP-82310-00-00 Ignition Coil Assy |
1TP-82310-00-00 |
from US $41.49 |
||
|
18
|
18
1S4-82310-00-00
Ignition Coil Assy
|
1S4-82310-00-00 |
— | ||
| replacements | |||||
|
18
|
18
1S4-82310-01-00 Ignition Coil Assy |
1S4-82310-01-00 |
from US $59.92 |
||
|
18
|
18
1S4-82310-02-00 IGNITION COIL ASSY |
1S4-82310-02-00 |
from US $49.63 |
||
|
18
|
18
1S4-82310-03-00 Ignition Coil Assy |
1S4-82310-03-00 |
US $57.82 |
||
|
18
|
18
1S4-82310-03-00 Ignition Coil Assy |
1S4-82310-03-00 |
US $57.82 |
||
|
19
|
19
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
19
|
19
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
19
|
19
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
|
20
|
20
5S7-82370-00-00 Plug Cap Assy |
5S7-82370-00-00 |
from US $64.24 |
||
|
21
|
21
904-45140-20-00 Hose (L65) |
904-45140-20-00 |
from US $1.42 |
||
|
22
|
22
913-12060-08-00 Bolt |
913-12060-08-00 |
from US $0.40 |
||
|
23
|
23
90464-09129-00 Clamp |
90464-09129-00 |
from US $1.98 |
||
|
24
|
24
90464-09008-00 Clamp |
90464-09008-00 |
from US $1.56 |
||
|
25
|
25
1TP-8591A-00-00 Engine Control Unit Assy |
1TP-8591A-00-00 |
from US $807.84 |
||
|
26
|
26
1TP-83755-00-00 Sensor, Speed |
1TP-83755-00-00 |
from US $40.77 |
||
|
27
|
27
4D9-81168-00-00 O-Ring |
4D9-81168-00-00 |
from US $3.40 |
||
|
28
|
28
901-10061-68-00
Bolt
|
901-10061-68-00 |
— | ||
| replacements | |||||
|
28
|
28
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
28
|
28
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
|
29
|
29
1TP-81948-00-00 Bracket |
1TP-81948-00-00 |
from US $35.70 |
||
|
30
|
30
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
31
|
31
90110-06300-00 Bolt, Hexagon Socket Head |
90110-06300-00 |
from US $2.69 |
||
|
32
|
32
4P9-83591-00-00
Thermo Unit
|
4P9-83591-00-00 |
— | ||
| replacements | |||||
|
32
|
32
54P-H3591-00-00 Thermo Unit |
54P-H3591-00-00 |
US $22.20 |
||
|
32
|
32
52B-H3591-00-00 Thermo Unit |
52B-H3591-00-00 |
from US $20.12 |
||
|
33
|
33
90201-10128-00 Washer Plate 341839090000 |
90201-10128-00 |
from US $1.56 |
||
|
34
|
34
5YU-85886-00-00 Sensor, Air Temperature |
5YU-85886-00-00 |
from US $29.27 |
||
|
35
|
35
B33-82509-00-00 Wire, Sub Lead |
B33-82509-00-00 |
from US $10.91 |
||
|
36
|
36
90464-26001-00 Clamp |
90464-26001-00 |
from US $1.70 |
||
|
37
|
37
98502-05012-00 Screw, Pan Head |
98502-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
37
|
37
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
37
|
37
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
38
|
38
1TP-81443-00-00 Clamp, Lead 1 |
1TP-81443-00-00 |
from US $3.54 |
||
|
39
|
39
90464-20258-00 Clamp |
90464-20258-00 |
from US $1.66 |
||
|
40
|
40
5C4-83350-00-00 Flasher Relay Assy |
5C4-83350-00-00 |
from US $51.95 |
||
| replacement | |||||
|
40
|
40
5C4-83350-01-00 Flasher Relay Assy |
5C4-83350-01-00 |
from US $51.12 |
||
|
41
|
41
2S3-83371-00-00 Horn |
2S3-83371-00-00 |
from US $37.17 |
||
|
42
|
42
90105-082A5-00 Bolt, Flange |
90105-082A5-00 |
from US $1.70 |
||
