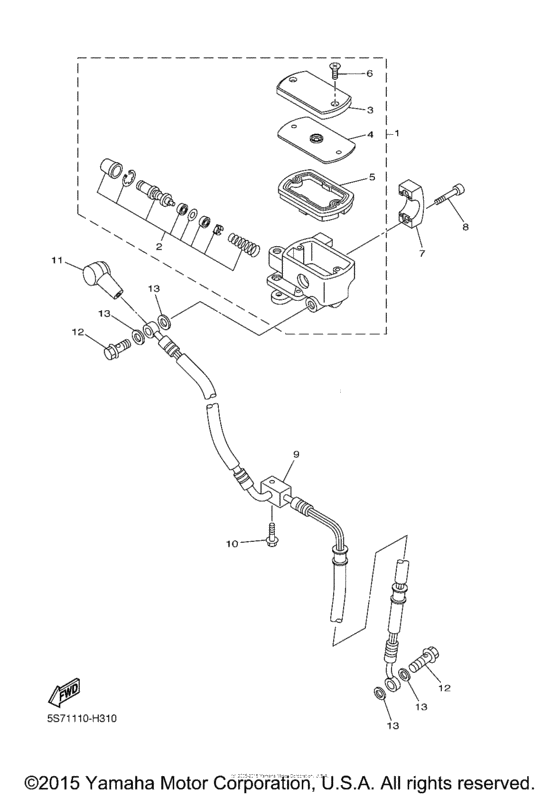

Front master cylinder Diagram Yamaha XVS950 V-Star
- Year
- 2013
- Model code
- 5S7D
- Sales region
- USA
- Базовая модель
- XVS95DB
- Engine Capacity
- 950
- Model
- XVS950A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5S7-25870-01-00 Master Cylinder Sub Assy |
5S7-25870-01-00 |
from US $201.71 |
||
|
2
|
2
1JL-25807-01-00 Cylinder Kit, Master |
1JL-25807-01-00 |
from US $53.05 |
||
|
3
|
3
3D8-25852-00-00 Cap, Reservoir |
3D8-25852-00-00 |
from US $30.74 |
||
|
4
|
4
3D8-25855-00-00 Bush, Diaphragm |
3D8-25855-00-00 |
from US $4.11 |
||
|
5
|
5
3D8-25854-00-00 Gasket, Diaphragm |
3D8-25854-00-00 |
from US $20.83 |
||
|
6
|
6
3D8-2589H-00-00 Screw |
3D8-2589H-00-00 |
from US $1.70 |
||
|
7
|
7
4TR-25867-10-00 Bracket, Master Cylinder |
4TR-25867-10-00 |
from US $19.98 |
||
|
8
|
8
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
9
|
9
5S7-25872-00-00 Hose, Brake 1 |
5S7-25872-00-00 |
from US $100.86 |
||
|
10
|
10
90105-06096-00 Bolt, FlangeBolt, flange |
90105-06096-00 |
from US $2.13 |
||
| replacements | |||||
|
10
|
10
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
10
|
10
90105-06791-00 Bolt, Flange |
90105-06791-00 |
from US $1.36 |
||
|
11
|
11
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
12
|
12
90401-10020-00 Bolt, Union |
90401-10020-00 |
from US $2.69 |
||
|
13
|
13
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
