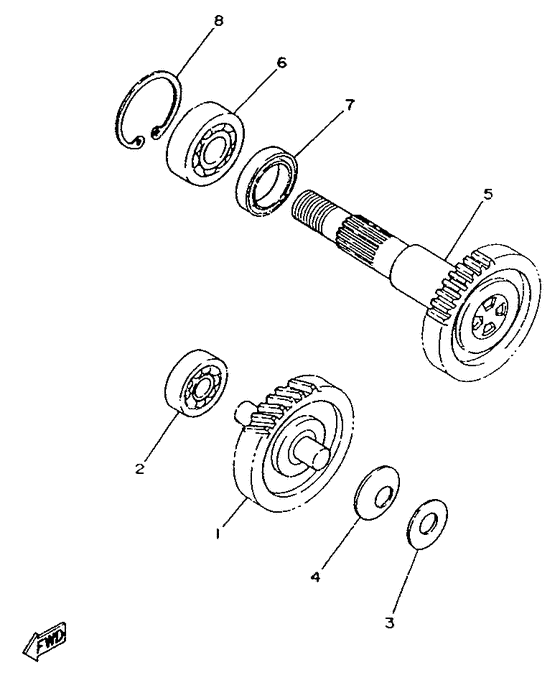

Transmission Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Spanish Dark Green Cocktail 1 (SDGC1; 0479)
- Model code
- 4MJ2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-E7410-00-00
Main Axle Comp
|
4MJ-E7410-00-00 |
— | ||
|
02
|
02
93306-20006-00 Bearing (B6200)Ur ntn |
93306-20006-00 |
from US $10.63 |
||
|
02
|
02
93306-20010-00 BearingUr nmb |
93306-20010-00 |
from US $10.63 |
||
| replacements | |||||
|
02
|
02
93306-20009-00 Bearing (3R0)Ur nmb |
93306-20009-00 |
from US $12.62 |
||
|
02
|
02
93306-20006-00 Bearing (B6200)Ur nmb |
93306-20006-00 |
from US $10.63 |
||
|
03
|
03
90201-123K4-00 Washer, Plate |
90201-123K4-00 |
from US $1.45 |
||
|
04
|
04
90208-12049-00 Washer, Conical Spring |
90208-12049-00 |
from US $2.27 |
||
|
05
|
05
4MJ-E7420-00-00
Drive Axle Assy
|
4MJ-E7420-00-00 |
— | ||
|
06
|
06
93306-20314-00 Bearing |
93306-20314-00 |
from US $24.23 |
||
| replacement | |||||
|
06
|
06
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
07
|
07
93102-22314-00 Seal, Oil |
93102-22314-00 |
from US $10.34 |
||
| replacement | |||||
|
07
|
07
93102-22897-00 Oil Seal(1Jy) |
93102-22897-00 |
from US $8.88 |
||
|
08
|
08
93420-40064-00 Circlip |
93420-40064-00 |
from US $5.09 |
||
