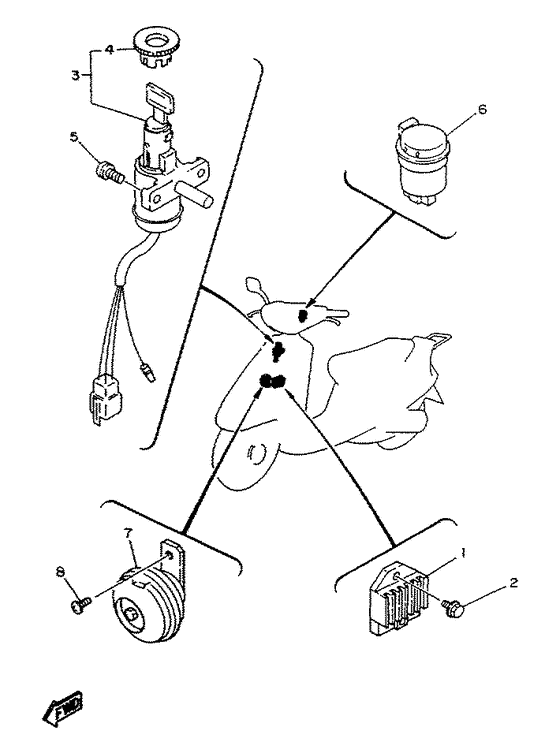

Electrical 1 Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4VV-H1960-00-00 Rectifier & Regula |
4VV-H1960-00-00 |
US $208.94 |
||
| replacement | |||||
|
01
|
01
4VV-H1960-01-00 Rectifier Regulator Assy |
4VV-H1960-01-00 |
US $208.94 |
||
|
02
|
02
95021-06016-00 Bolt, Flange |
95021-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
03
|
03
4MJ-H2501-01-00
Main Switch Steering Lock
|
4MJ-H2501-01-00 |
— | ||
|
04
|
04
4MJ-H2552-00-00
Cap, Switch
|
4MJ-H2552-00-00 |
— | ||
|
05
|
05
913-16060-10-00
Bolt, Socket Head
|
913-16060-10-00 |
— | ||
| replacement | |||||
|
05
|
05
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
06
|
06
4MJ-H3350-00-00
Flasher Relay Assy
|
4MJ-H3350-00-00 |
— | ||
|
07
|
07
4MJ-H3371-00-00 Horn |
4MJ-H3371-00-00 |
US $40.58 |
||
| replacements | |||||
|
07
|
07
4CU-H3371-03-00 Horn |
4CU-H3371-03-00 |
US $53.59 |
||
|
07
|
07
5SB-H3371-00-00
Horn
|
5SB-H3371-00-00 |
— | ||
|
08
|
08
98501-06010-00 Screw Pan Head |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
08
|
08
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
