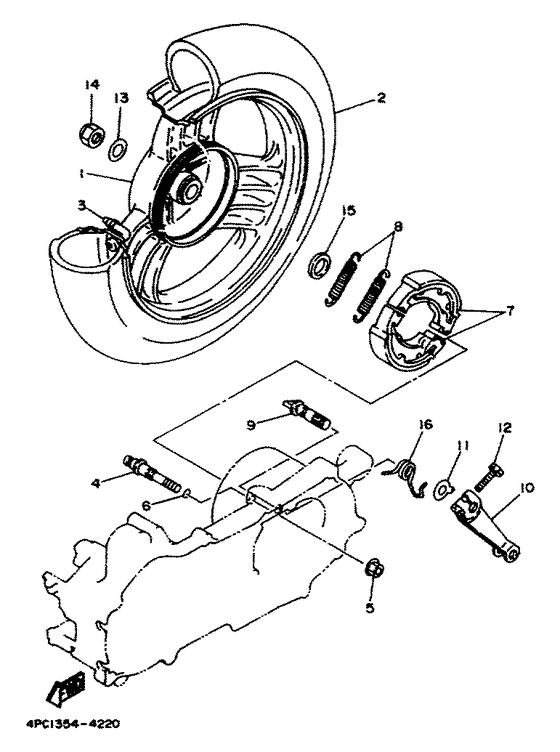

Rear wheel Diagram Yamaha YA50 Forte 50
- Year
- 1994
- Colour
- Frost Silver (FRS; 009G)
- Model code
- 4PC1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-F5338-00-35
Cast Wheel, Rear
(silver) |
4PC-F5338-00-35 |
— | ||
| replacement | |||||
|
01
|
01
4PC-F5338-00-00
Cast Wheel, Rear
(silver) |
4PC-F5338-00-00 |
— | ||
|
03
|
03
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
04
|
04
4CU-F5326-00-00
Pin, Pivot
|
4CU-F5326-00-00 |
— | ||
|
05
|
05
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
05
|
05
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
06
|
06
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.81 |
||
|
07
|
07
2JL-W2536-10-00 Brake Shoe Kit |
2JL-W2536-10-00 |
from US $21.24 |
||
| replacement | |||||
|
07
|
07
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
08
|
08
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
09
|
09
3KJ-25351-00-00
Camshaft
|
3KJ-25351-00-00 |
— | ||
| replacement | |||||
|
09
|
09
3KJ-25351-01-00
Camshaft
|
3KJ-25351-01-00 |
— | ||
|
10
|
10
3WG-F5355-00-00
Lever, Camshaft
|
3WG-F5355-00-00 |
— | ||
|
11
|
11
3WG-F513A-00-00
Plate, Indicator
|
3WG-F513A-00-00 |
— | ||
|
12
|
12
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
13
|
13
90201-142M6-00 Washer, Plate |
90201-142M6-00 |
from US $3.68 |
||
|
14
|
14
90185-14150-00 Nut, Self-Locking(3Fc) |
90185-14150-00 |
from US $9.49 |
||
| replacement | |||||
|
14
|
14
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
|
15
|
15
90201-17255-00 Washer, Plate |
90201-17255-00 |
from US $1.77 |
||
| replacement | |||||
|
15
|
15
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.77 |
||
|
16
|
16
3WG-F5357-00-00
Spring, Lever Return
|
3WG-F5357-00-00 |
— | ||
