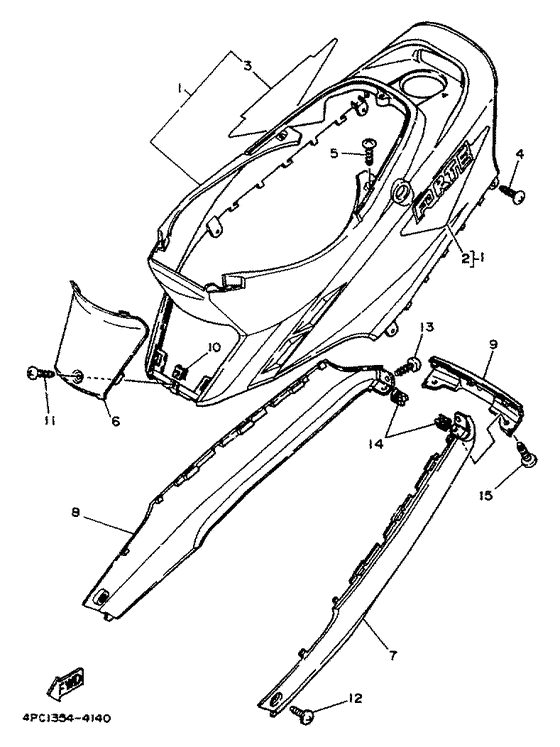

Side cover Diagram Yamaha YA50 Forte 50
- Year
- 1994
- Colour
- Frost Silver (FRS; 009G)
- Model code
- 4PC1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-X1711-00-9G
Cover, Side 1
(ur frost silver) |
4PC-X1711-00-9G |
— | ||
|
01
|
01
4PC-X1711-00-P1
Cover, Side 1
(ur spanish dark green, cockta) |
4PC-X1711-00-P1 |
— | ||
| replacement | |||||
|
01
|
01
4PC-X1711-00-Q2
Cover Side 1
(ur spanish dark green, cockta) |
4PC-X1711-00-Q2 |
— | ||
|
02
|
02
4PC-F1782-00-00
Emblem 2
(ur for frs) |
4PC-F1782-00-00 |
— | ||
|
02
|
02
4PC-F1782-10-00
Emblem 2
(ur for sdgc1) |
4PC-F1782-10-00 |
— | ||
|
03
|
03
4PC-F1783-00-00
Emblem 3
(ur for frs) |
4PC-F1783-00-00 |
— | ||
|
03
|
03
4PC-F1783-10-00
Emblem 3
(ur for sdgc1) |
4PC-F1783-10-00 |
— | ||
|
04
|
04
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
04
|
04
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
05
|
05
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
05
|
05
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
06
|
06
3VP-F1721-00-9G
Cover, Side 2
(ur frost silver) |
3VP-F1721-00-9G |
— | ||
| replacement | |||||
|
06
|
06
4MJ-F1721-00-9G
Cover, Side 2
(ur frost silver) |
4MJ-F1721-00-9G |
— | ||
|
06
|
06
3VP-F1721-00-P1
Cover, Side 2
(ur spanish dark green, cockta) |
3VP-F1721-00-P1 |
— | ||
| replacement | |||||
|
06
|
06
3VP-F1721-00-Q2
Cover, Side 2
(ur spanish dark green, cockta) |
3VP-F1721-00-Q2 |
— | ||
|
07
|
07
4PC-F171L-00-00
Mole, Side Cover 1
(ur gray) |
4PC-F171L-00-00 |
— | ||
|
07
|
07
4PC-F171L-10-00
Mole, Side Cover 1
(ur black) |
4PC-F171L-10-00 |
— | ||
| replacement | |||||
|
07
|
07
4SJ-F171L-10-00
Cover 1
(ur black) |
4SJ-F171L-10-00 |
— | ||
|
08
|
08
4PC-F171M-00-00
Mole, Side Cover 2
(ur gray) |
4PC-F171M-00-00 |
— | ||
|
08
|
08
4PC-F171M-10-00
Mole, Side Cover 2
(ur black) |
4PC-F171M-10-00 |
— | ||
|
09
|
09
4MJ-F171N-00-00
Mole, Side Cover 3
(ur gray) |
4MJ-F171N-00-00 |
— | ||
| replacement | |||||
|
09
|
09
4MJ-F171N-20-00
Mole, Side Cover 3
(ur gray) |
4MJ-F171N-20-00 |
— | ||
|
09
|
09
4MJ-F171N-10-00
Mole, Side Cover 3
(ur black) |
4MJ-F171N-10-00 |
— | ||
|
10
|
10
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
11
|
11
90167-05055-00 Screw, Tapping |
90167-05055-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
12
|
12
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
13
|
13
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
13
|
13
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
14
|
14
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
15
|
15
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
