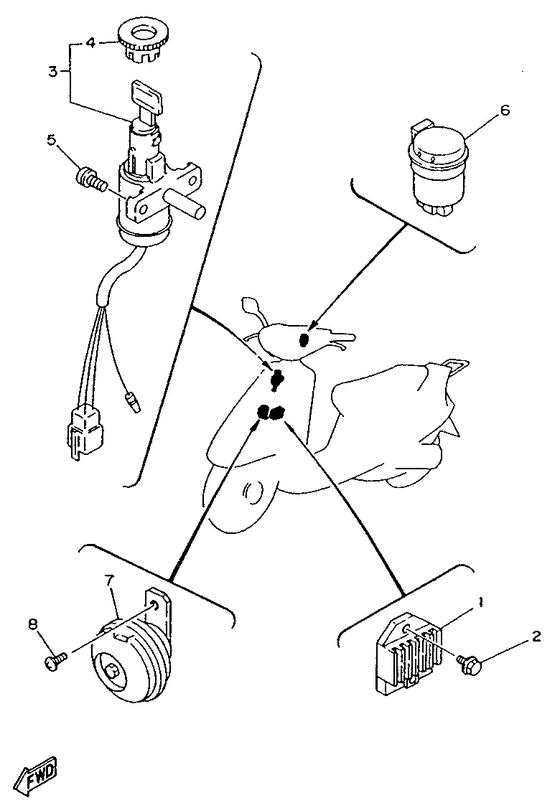

Electrical 1 Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SN1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-81960-00-00 Rectifier & Regulator Assy |
3AA-81960-00-00 |
from US $92.84 |
||
| replacements | |||||
|
01
|
01
4VV-H1960-01-00 Rectifier Regulator Assy |
4VV-H1960-01-00 |
US $208.94 |
||
|
01
|
01
3KJ-81960-11-00 Rectifier & Regulator Assy |
3KJ-81960-11-00 |
from US $92.84 |
||
|
02
|
02
95021-06016-00 Bolt, Flange |
95021-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
03
|
03
4MJ-H2501-01-00
Main Switch Steering Lock
|
4MJ-H2501-01-00 |
— | ||
|
04
|
04
4MJ-H2552-00-00
Cap, Switch
|
4MJ-H2552-00-00 |
— | ||
|
05
|
05
90149-06250-00 Screw |
90149-06250-00 |
from US $1.81 |
||
|
06
|
06
4MJ-H3350-00-00
Flasher Relay Assy
|
4MJ-H3350-00-00 |
— | ||
|
07
|
07
3WW-83371-01-00
Horn
|
3WW-83371-01-00 |
— | ||
| replacement | |||||
|
07
|
07
4FL-83371-00-00
Horn
|
4FL-83371-00-00 |
— | ||
|
08
|
08
98501-06010-00 Screw Pan Head |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
08
|
08
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
