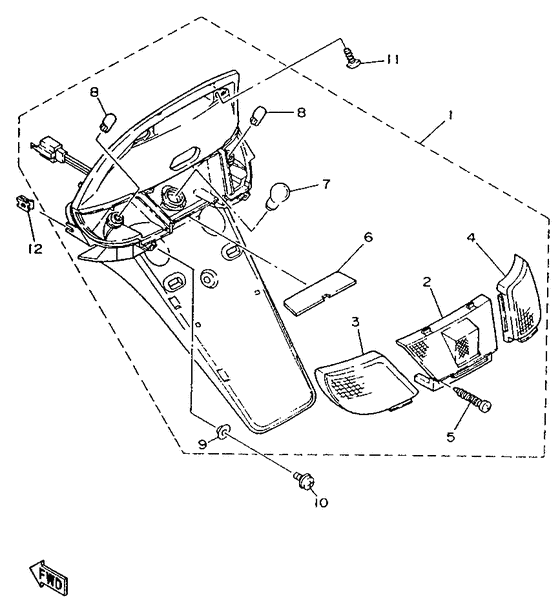

Taillight Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SN1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-H4700-00-00
Taillight Assy
|
4PC-H4700-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4MJ-H4700-00-00
Taillight Assy
|
4MJ-H4700-00-00 |
— | ||
|
02
|
02
4MJ-H4721-00-00
Lens, Taillight
|
4MJ-H4721-00-00 |
— | ||
|
03
|
03
4PC-H3332-00-00
Lens, Flasher
|
4PC-H3332-00-00 |
— | ||
|
04
|
04
4PC-H3342-00-00
Lens, Flasher 2
|
4PC-H3342-00-00 |
— | ||
|
05
|
05
97701-40620-00 Screw, Tapping |
97701-40620-00 |
US $1.42 |
||
| replacements | |||||
|
05
|
05
97780-40120-00 Ybs83-420 Screw,panh,tapping |
97780-40120-00 |
from US $1.42 |
||
|
05
|
05
97704-40620-00 Screw, Tapping |
97704-40620-00 |
from US $1.42 |
||
|
06
|
06
4MJ-H4743-00-00
Lens, Licence Light
|
4MJ-H4743-00-00 |
— | ||
|
07
|
07
34X-84714-00-00 Bulb (12V-21/5W) |
34X-84714-00-00 |
from US $4.96 |
||
| replacement | |||||
|
07
|
07
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $5.28 |
||
|
08
|
08
3VP-83311-00-00 Bulb, Flasher (12V-10W T13) |
3VP-83311-00-00 |
US $3.54 |
||
| replacements | |||||
|
08
|
08
1YT-83311-00-00 Bulb(12V-10W) |
1YT-83311-00-00 |
from US $3.54 |
||
|
08
|
08
2DP-H4714-00-00 Bulb (12V-10W) |
2DP-H4714-00-00 |
US $3.54 |
||
|
09
|
09
3VP-84725-00-00
Washer, Special
|
3VP-84725-00-00 |
— | ||
|
10
|
10
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
10
|
10
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
11
|
11
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
