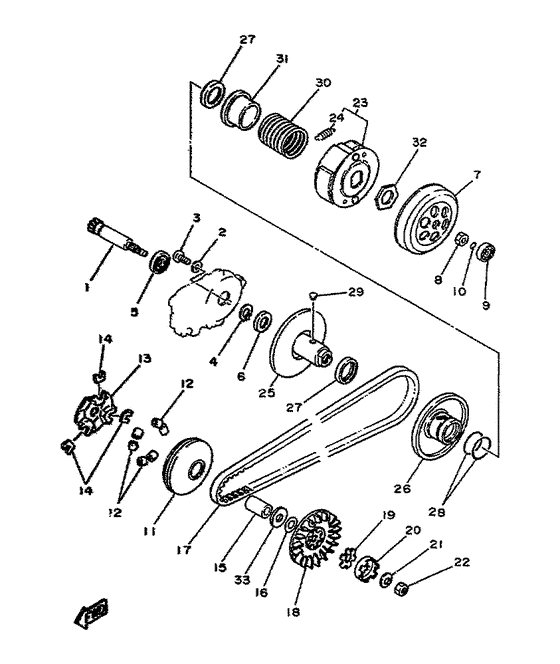

Clutch Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SN2
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CU-16111-00-00
Gear, Primary Drive
|
4CU-16111-00-00 |
— | ||
|
02
|
02
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
03
|
03
98501-06010-00 Screw Pan Head |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
03
|
03
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
04
|
04
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
04
|
04
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
05
|
05
93306-00306-00 Bearing |
93306-00306-00 |
US $26.64 |
||
| replacement | |||||
|
05
|
05
93306-00316-00 Bearing |
93306-00316-00 |
from US $20.54 |
||
|
06
|
06
93102-17342-00 Oil Seal |
93102-17342-00 |
from US $12.04 |
||
| replacements | |||||
|
06
|
06
93102-17467-00 Oil Seal |
93102-17467-00 |
from US $12.04 |
||
|
06
|
06
931-02178-03-00 Oil Seal (Mio Al115S) |
931-02178-03-00 |
from US $3.42 |
||
|
07
|
07
3YJ-16611-00-00 Clutch Housing Comp |
3YJ-16611-00-00 |
US $65.11 |
||
| replacement | |||||
|
07
|
07
3YJ-16611-01-00 Clutch Housing Comp |
3YJ-16611-01-00 |
US $65.11 |
||
|
08
|
08
90170-10317-00 Nut |
90170-10317-00 |
from US $7.63 |
||
|
09
|
09
93300-63813-00 Bearing |
93300-63813-00 |
from US $22.47 |
||
|
10
|
10
93210-06550-00 O-Ring |
93210-06550-00 |
from US $1.63 |
||
|
11
|
11
4CU-E7620-00-00 Primary Sliding Shea |
4CU-E7620-00-00 |
US $98.37 |
||
| replacement | |||||
|
11
|
11
5WW-E7620-10-00 Primary Sliding Sheave Comp |
5WW-E7620-10-00 |
US $89.60 |
||
|
12
|
12
4CU-E7632-00-00
Weight
|
4CU-E7632-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4CU-E7632-00-PL
Weight
|
4CU-E7632-00-PL |
— | ||
|
13
|
13
3VL-E7623-00-00 Cam |
3VL-E7623-00-00 |
from US $11.32 |
||
| replacement | |||||
|
13
|
13
4B0-E7623-00-00 Cam |
4B0-E7623-00-00 |
US $19.75 |
||
|
14
|
14
3VL-E7653-00-00 Slider |
3VL-E7653-00-00 |
from US $4.43 |
||
| replacement | |||||
|
14
|
14
4B0-E7653-00-00 Slider |
4B0-E7653-00-00 |
from US $6.39 |
||
|
15
|
15
90387-135U9-00 Collar |
90387-135U9-00 |
from US $7.51 |
||
|
16
|
16
90201-136P4-00 Washer, Plate |
90201-136P4-00 |
from US $1.84 |
||
|
17
|
17
3VP-17641-00-00 V-Belt |
3VP-17641-00-00 |
US $39.65 |
||
| replacement | |||||
|
17
|
17
3WF-17641-00-00 V-Belt |
3WF-17641-00-00 |
from US $39.55 |
||
|
18
|
18
3VL-E7611-00-00 Sheave, Primary Fi |
3VL-E7611-00-00 |
from US $53.21 |
||
| replacement | |||||
|
18
|
18
5WW-E7611-10-00 Sheave, Primary Fixed |
5WW-E7611-10-00 |
US $75.04 |
||
|
19
|
19
90214-13055-00 Washer, Claw |
90214-13055-00 |
from US $9.21 |
||
|
20
|
20
3VL-E5657-00-00 Clutch, Oneway |
3VL-E5657-00-00 |
US $29.92 |
||
| replacement | |||||
|
20
|
20
3KJ-15657-00-00 Clutch, Oneway |
3KJ-15657-00-00 |
from US $19.13 |
||
|
21
|
21
90208-10012-00 Washer, Conical Spring |
90208-10012-00 |
from US $1.52 |
||
|
22
|
22
901-70102-19-00
Nut
|
901-70102-19-00 |
— | ||
| replacement | |||||
|
22
|
22
90170-10011-00 Nut |
90170-10011-00 |
from US $1.52 |
||
|
23
|
23
4CX-16620-00-00
Clutch Carrier Assy
|
4CX-16620-00-00 |
— | ||
|
24
|
24
3VR-16626-00-00 Spring, Clutch Weight 1 |
3VR-16626-00-00 |
from US $3.19 |
||
|
25
|
25
3AA-17660-01-00 Secondary Fixed Sheave Comp |
3AA-17660-01-00 |
from US $132.22 |
||
| replacement | |||||
|
25
|
25
3AA-17660-03-00 Secondary Fixed Sheave Comp |
3AA-17660-03-00 |
from US $132.22 |
||
|
26
|
26
3AA-17670-00-00 Secondary Sliding Sheave |
3AA-17670-00-00 |
from US $73.57 |
||
| replacement | |||||
|
26
|
26
3AA-17670-01-00 Secondary Sliding Sheave |
3AA-17670-01-00 |
from US $76.88 |
||
|
27
|
27
93109-33049-00 Oil Seal |
93109-33049-00 |
from US $10.17 |
||
| replacement | |||||
|
27
|
27
93109-33052-00 Oil Seal |
93109-33052-00 |
from US $15.64 |
||
|
28
|
28
93210-38687-00 O-Ring |
93210-38687-00 |
from US $2.83 |
||
| replacement | |||||
|
28
|
28
93210-384A6-00 O-Ring |
93210-384A6-00 |
from US $4.96 |
||
|
29
|
29
24G-17664-00-00 Pin, Guide |
24G-17664-00-00 |
from US $3.68 |
||
|
30
|
30
9050157F300
Spring
|
9050157F300 |
— | ||
|
31
|
31
3KJ-17684-00-00 Seat, Secondary Spring |
3KJ-17684-00-00 |
from US $15.16 |
||
| replacement | |||||
|
31
|
31
3XG-17684-00-00 Seat, Secondary Spring |
3XG-17684-00-00 |
from US $15.16 |
||
|
32
|
32
90179-28415-00 Nut |
90179-28415-00 |
from US $7.94 |
||
|
33
|
33
4HU-E7654-00-00
Spacer 1
|
4HU-E7654-00-00 |
— | ||
