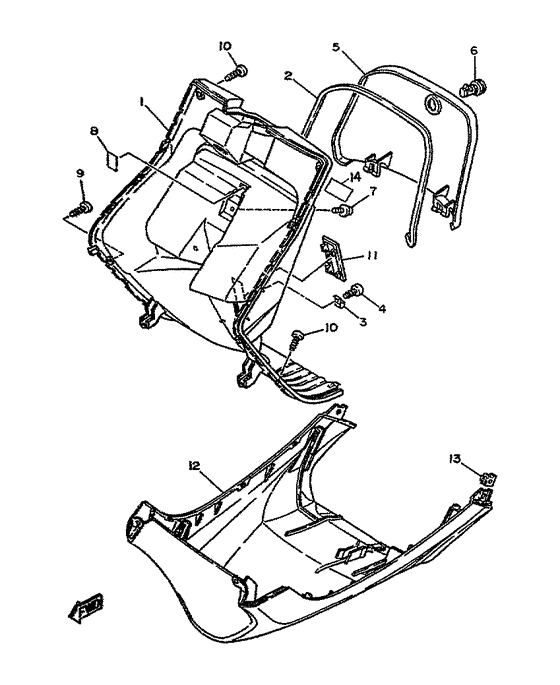

Leg shield Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SN2
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F8311-12-00
Leg Shield 1
(ur yamaha black) |
4MJ-F8311-12-00 |
— | ||
|
02
|
02
4MJ-F8371-00-00
Damper
|
4MJ-F8371-00-00 |
— | ||
|
03
|
03
35R-21796-00-00 Hinge |
35R-21796-00-00 |
US $5.58 |
||
|
04
|
04
97706-40512-00 Screw, Tapping |
97706-40512-00 |
from US $1.56 |
||
| replacement | |||||
|
04
|
04
97707-40612-00 Screw, Tapping |
97707-40612-00 |
from US $1.56 |
||
|
05
|
05
4MJ-F8313-00-00
Lid
(ur yamaha black) |
4MJ-F8313-00-00 |
— | ||
| replacement | |||||
|
05
|
05
3VR-28313-00-00
Lid
(ur yamaha black) |
3VR-28313-00-00 |
— | ||
|
06
|
06
4MJ-F1780-01-00
Lock Assy
|
4MJ-F1780-01-00 |
— | ||
|
07
|
07
90159-06835-00
Screw, With Washer
|
90159-06835-00 |
— | ||
|
08
|
08
4MJ-F834V-00-00
Protector 1
|
4MJ-F834V-00-00 |
— | ||
|
09
|
09
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
09
|
09
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
09
|
09
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
10
|
10
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
10
|
10
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
10
|
10
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
11
|
11
3WG-F8349-10-00
Cap
(ur yamaha black) |
3WG-F8349-10-00 |
— | ||
|
12
|
12
4MJ-F8385-20-00
Cover, Lower
(ur low gloss gray) |
4MJ-F8385-20-00 |
— | ||
|
13
|
13
3VP-21535-00-00 Nut 1 |
3VP-21535-00-00 |
from US $3.10 |
||
| replacement | |||||
|
13
|
13
25G-21535-00-00 Nut 1 |
25G-21535-00-00 |
from US $7.65 |
||
|
14
|
14
4SN-F118N-00-00
Label
|
4SN-F118N-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
