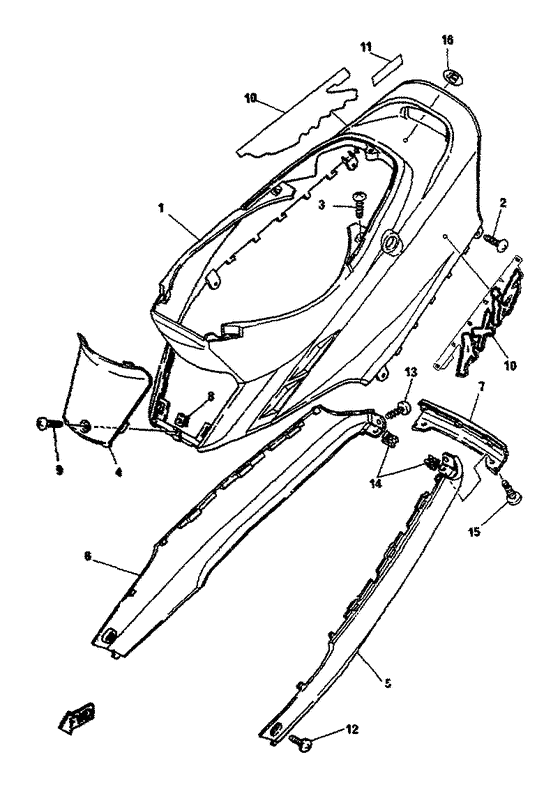

Side cover Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SN2
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F1711-00-0M
Cover, Side 1
(ur sweet heart red) |
4MJ-F1711-00-0M |
— | ||
|
01
|
01
4MJ-F1711-00-4B
Cover, Side 1
(ur black 2) |
4MJ-F1711-00-4B |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
(ur black 2) |
999-99999-99-00 |
— | ||
|
02
|
02
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
02
|
02
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
02
|
02
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
03
|
03
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
03
|
03
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
03
|
03
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
04
|
04
4MJ-F1721-00-0M
Cover, Side 2
(ur sweet heart red) |
4MJ-F1721-00-0M |
— | ||
|
04
|
04
4MJ-F1721-00-4B
Cover, Side 2
(ur black 2) |
4MJ-F1721-00-4B |
— | ||
|
05
|
05
4PC-F171L-20-00
Mole, Side Cover 1
(ur low gloss gray) |
4PC-F171L-20-00 |
— | ||
|
06
|
06
4PC-F171M-20-00
Mole, Side Cover 2
(ur low gloss gray) |
4PC-F171M-20-00 |
— | ||
|
07
|
07
4MJ-F171N-20-00
Mole, Side Cover 3
(ur low gloss gray) |
4MJ-F171N-20-00 |
— | ||
|
08
|
08
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
09
|
09
90167-05055-00 Screw, Tapping |
90167-05055-00 |
from US $3.26 |
||
| replacement | |||||
|
09
|
09
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
10
|
10
4SJ-F1782-30-00
Emblem 2
(ur for bl2) |
4SJ-F1782-30-00 |
— | ||
|
11
|
11
4SJ-F1782-40-00
Emblem 2
(ur for shr) |
4SJ-F1782-40-00 |
— | ||
|
11
|
11
4SN-F1789-00-00
Graphic
|
4SN-F1789-00-00 |
— | ||
|
12
|
12
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
13
|
13
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
13
|
13
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
13
|
13
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
14
|
14
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
15
|
15
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
15
|
15
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
15
|
15
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
16
|
16
4SN-F415A-00-00
Label, Caution
|
4SN-F415A-00-00 |
— | ||
