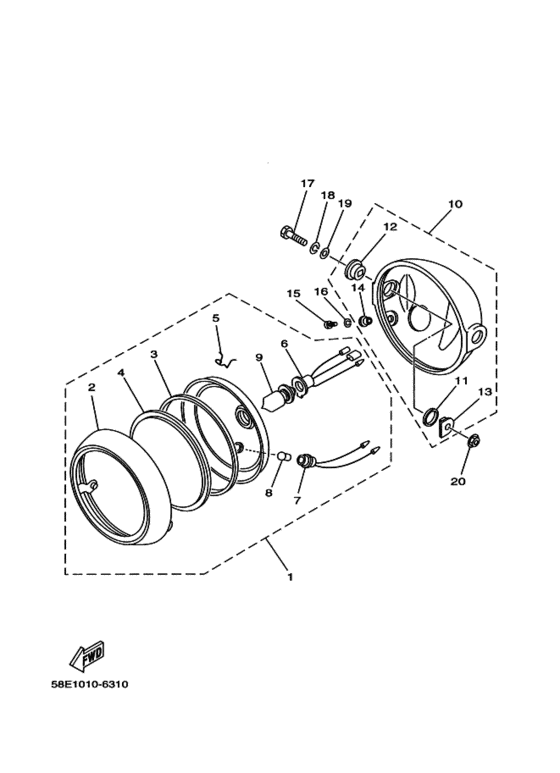

Headlight (58E) Diagram Yamaha YB50
- Year
- 1985
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 58E
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-84110-H0-00
Headlight Unit Assy
|
58E-84110-H0-00 |
— | ||
|
2
|
2
3M5-84115-00-00 Rim, Headlight．リム，ヘツドライト; |
3M5-84115-00-00 |
US $51.81 |
||
|
3
|
3
3M5-84122-00-00 Gasket, Lens．ガスケツト，レンズ; |
3M5-84122-00-00 |
US $8.02 |
||
|
4
|
4
3M5-84121-00-00 Lens, Headlight．レンズ，ヘツドライト; |
3M5-84121-00-00 |
US $43.08 |
||
|
5
|
5
3M5-84124-00-00 Spring, Support．スプリング，セツト; |
3M5-84124-00-00 |
US $5.55 |
||
|
6
|
6
4A5-84140-00-00
Socket Cord Assy
．ソケツトコードアセンブリ; |
4A5-84140-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4A5-84140-01-00
Socket Cord Assy 1
．ソケツトコードアセンブリ; |
4A5-84140-01-00 |
— | ||
|
7
|
7
4A5-84150-00-00
Socket Cord Assy 2
．ソケツトコードアセンブリ ２; |
4A5-84150-00-00 |
— | ||
|
8
|
8
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
8
|
8
122-83516-10-XX
Bulb
．バルブ ; ６Ｖ−３Ｗ |
122-83516-10-XX |
— | ||
|
9
|
9
33A-84114-00-00
Bulb, Headlight
．バルブ，ヘツドライト; ６Ｖ ３０／３０Ｗ |
33A-84114-00-00 |
— | ||
|
10
|
10
4A5-84130-00-00 Body Assy, Headlight塗装無 |
4A5-84130-00-00 |
US $38.04 |
||
|
11
|
11
3M5-84163-00-00 Damper．ダンパ; |
3M5-84163-00-00 |
US $4.53 |
||
| replacement | |||||
|
11
|
11
3M5-84163-01-00 Damper．ダンパ; |
3M5-84163-01-00 |
US $4.53 |
||
|
12
|
12
3M5-84164-00-00 Damper．ダンパ; |
3M5-84164-00-00 |
US $11.76 |
||
| replacement | |||||
|
12
|
12
3M5-84164-01-00 Damper．ダンパ; |
3M5-84164-01-00 |
US $11.76 |
||
|
13
|
13
4A5-84145-00-00 Collar, Body Fitting．カラー，ボデーフイツテイング; |
4A5-84145-00-00 |
US $7.65 |
||
|
14
|
14
3M5-84127-00-00 Washer, Special．ワツシヤ，スペシヤル; |
3M5-84127-00-00 |
US $3.68 |
||
|
15
|
15
98517-05012-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-05012-00 |
from US $1.21 |
||
|
16
|
16
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
17
|
17
970-17080-30-00 Boltボルト; |
970-17080-30-00 |
from US $1.70 |
||
|
18
|
18
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
19
|
19
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.39 |
||
|
20
|
20
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
20
|
20
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
