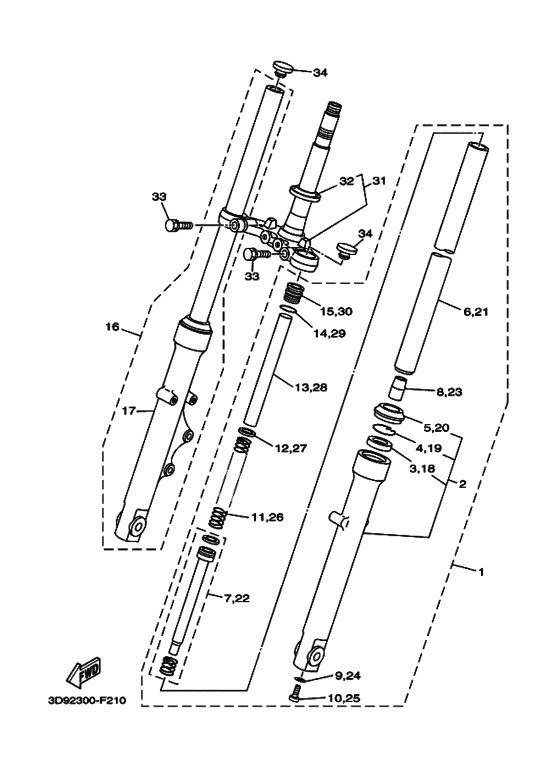

Front fork Diagram Yamaha YBR125
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 3D92
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- D
- Model
- YBR125ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D9-F3102-10-00
Front Fork Assy (L.h)
|
3D9-F3102-10-00 |
— | ||
| replacement | |||||
|
1
|
1
3D9-F3102-11-00
Front Fork Assy (L.h)
|
3D9-F3102-11-00 |
— | ||
|
2
|
2
3D9-F3106-10-00 Outer Tube Comp. (L.h) |
3D9-F3106-10-00 |
US $165.79 |
||
|
3
|
3
4GU-F3145-00-00 Oil Seal |
4GU-F3145-00-00 |
from US $20.54 |
||
|
4
|
4
5AP-F3153-00-00 Ring, Snap |
5AP-F3153-00-00 |
from US $2.35 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
4GU-F3144-00-00 Seal, Dust |
4GU-F3144-00-00 |
from US $12.08 |
||
|
6
|
6
5VL-F3110-01-00
Inner Tube Comp.1
|
5VL-F3110-01-00 |
— | ||
|
7
|
7
5VL-F3170-00-00 Cylinder Comp., Front Fork |
5VL-F3170-00-00 |
US $28.76 |
||
| replacement | |||||
|
7
|
7
5VL-F3170-01-00 Cylinder Comp.,front Fork |
5VL-F3170-01-00 |
US $28.76 |
||
|
8
|
8
5AP-F3166-00-00 Spacer, Oil Lock |
5AP-F3166-00-00 |
US $14.29 |
||
| replacements | |||||
|
8
|
8
4GU-F3173-01-00 Spindle, Taper |
4GU-F3173-01-00 |
US $14.29 |
||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
4TU-F3479-00-00 Gasket |
4TU-F3479-00-00 |
US $4.03 |
||
| replacement | |||||
|
9
|
9
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
10
|
10
5LK-F3356-00-00 Bolt 2 |
5LK-F3356-00-00 |
US $6.80 |
||
| replacement | |||||
|
10
|
10
5LK-F3356-01-00 Bolt 2 |
5LK-F3356-01-00 |
US $6.80 |
||
|
11
|
11
5VL-F3141-00-00 Spring, Front Fork |
5VL-F3141-00-00 |
US $22.67 |
||
| replacement | |||||
|
11
|
11
5VL-F3141-40-00 Spring, Front Fork |
5VL-F3141-40-00 |
US $22.67 |
||
|
12
|
12
5AP-F3427-00-00 Washer |
5AP-F3427-00-00 |
from US $0.95 |
||
|
13
|
13
5VL-F3118-00-00
Spacer
|
5VL-F3118-00-00 |
— | ||
|
14
|
14
5AP-F3147-00-00 O-Ring |
5AP-F3147-00-00 |
US $13.74 |
||
| replacement | |||||
|
14
|
14
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
15
|
15
4GU-F3111-00-00
Bolt, Cap
|
4GU-F3111-00-00 |
— | ||
|
16
|
16
3D9-F3103-10-00
Front Fork Assy (R.h)
|
3D9-F3103-10-00 |
— | ||
| replacement | |||||
|
16
|
16
3D9-F3103-11-00
Front Fork Assy (R.h)
|
3D9-F3103-11-00 |
— | ||
|
17
|
17
3D9-F3107-10-00 Outer Tube Comp. (R.h) |
3D9-F3107-10-00 |
US $165.79 |
||
|
18
|
18
4GU-F3145-00-00 Oil Seal |
4GU-F3145-00-00 |
from US $20.54 |
||
|
19
|
19
5AP-F3153-00-00 Ring, Snap |
5AP-F3153-00-00 |
from US $2.35 |
||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
4GU-F3144-00-00 Seal, Dust |
4GU-F3144-00-00 |
from US $12.08 |
||
|
21
|
21
5VL-F3110-01-00
Inner Tube Comp.1
|
5VL-F3110-01-00 |
— | ||
|
22
|
22
5VL-F3170-00-00 Cylinder Comp., Front Fork |
5VL-F3170-00-00 |
US $28.76 |
||
| replacement | |||||
|
22
|
22
5VL-F3170-01-00 Cylinder Comp.,front Fork |
5VL-F3170-01-00 |
US $28.76 |
||
|
23
|
23
5AP-F3166-00-00 Spacer, Oil Lock |
5AP-F3166-00-00 |
US $14.29 |
||
| replacements | |||||
|
23
|
23
4GU-F3173-01-00 Spindle, Taper |
4GU-F3173-01-00 |
US $14.29 |
||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
4TU-F3479-00-00 Gasket |
4TU-F3479-00-00 |
US $4.03 |
||
| replacement | |||||
|
24
|
24
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
25
|
25
5LK-F3356-00-00 Bolt 2 |
5LK-F3356-00-00 |
US $6.80 |
||
| replacement | |||||
|
25
|
25
5LK-F3356-01-00 Bolt 2 |
5LK-F3356-01-00 |
US $6.80 |
||
|
26
|
26
5VL-F3141-00-00 Spring, Front Fork |
5VL-F3141-00-00 |
US $22.67 |
||
| replacement | |||||
|
26
|
26
5VL-F3141-40-00 Spring, Front Fork |
5VL-F3141-40-00 |
US $22.67 |
||
|
27
|
27
5AP-F3427-00-00 Washer |
5AP-F3427-00-00 |
from US $0.95 |
||
|
28
|
28
5VL-F3118-00-00
Spacer
|
5VL-F3118-00-00 |
— | ||
|
29
|
29
5AP-F3147-00-00 O-Ring |
5AP-F3147-00-00 |
US $13.74 |
||
| replacement | |||||
|
29
|
29
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
30
|
30
4GU-F3111-00-00
Bolt, Cap
|
4GU-F3111-00-00 |
— | ||
|
31
|
31
5VL-F331X-00-00 Bracket, Under |
5VL-F331X-00-00 |
US $276.32 |
||
| replacement | |||||
|
31
|
31
5VL-F331X-01-00 Bracket, Under |
5VL-F331X-01-00 |
US $276.32 |
||
|
32
|
32
4FP-F3411-10-00 Race, Ball 1 |
4FP-F3411-10-00 |
from US $15.95 |
||
|
33
|
33
5VL-F3346-00-00 Bolt 1 |
5VL-F3346-00-00 |
US $3.26 |
||
|
34
|
34
5VL-F3168-00-00 Cap, Front Fork |
5VL-F3168-00-00 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
5VL-F3154-00-00 Plug, Inner Tube |
5VL-F3154-00-00 |
US $1.56 |
||
