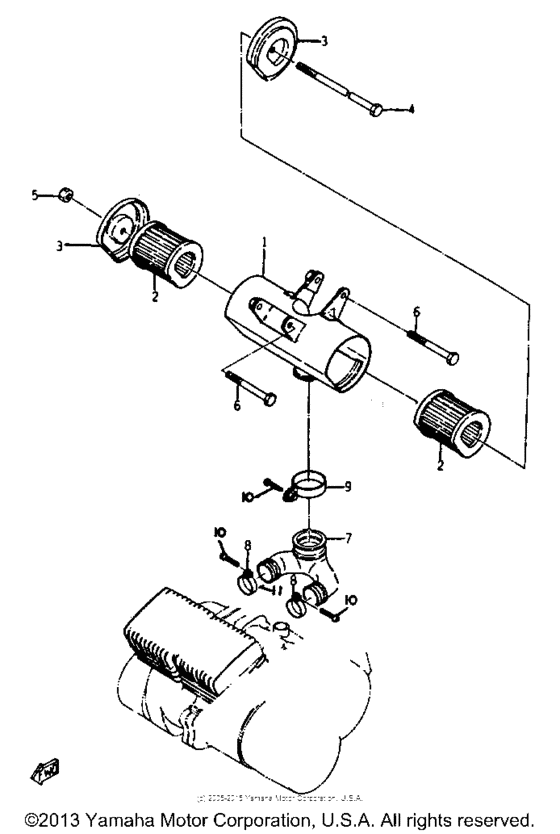

Air cleaner Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-14411-01-33
Case, Air Cleaner 1
|
174-14411-01-33 |
— | ||
|
2
|
2
174-14451-00-00
Element, Air Clnr
|
174-14451-00-00 |
— | ||
|
3
|
3
174-14412-00-00
Cap, Cleaner Case 1
|
174-14412-00-00 |
— | ||
|
4
|
4
973-03061-90-00
Bolt, Hexagon
|
973-03061-90-00 |
— | ||
|
5
|
5
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
6
|
6
97021-08065-00
Bolt(2Nl)
|
97021-08065-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
193-14453-00-00
Joint, Air Clnr 1
|
193-14453-00-00 |
— | ||
|
7
|
7
174-14453-00-00
Joint, Air Clnr 1
|
174-14453-00-00 |
— | ||
|
8
|
8
904-60370-51-00 Clamp, Hose |
904-60370-51-00 |
US $4.53 |
||
|
8
|
8
90460-39052-00 Clamp, Hose |
90460-39052-00 |
from US $7.79 |
||
| replacement | |||||
|
8
|
8
90460-41191-00 Clamp, Hose (5R2) |
90460-41191-00 |
from US $7.79 |
||
|
9
|
9
904-60500-35-00
Clamp, Hose
|
904-60500-35-00 |
— | ||
|
10
|
10
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
10
|
10
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
10
|
10
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
11
|
11
936-02100-61-00
Pin, Dowel
|
936-02100-61-00 |
— | ||
