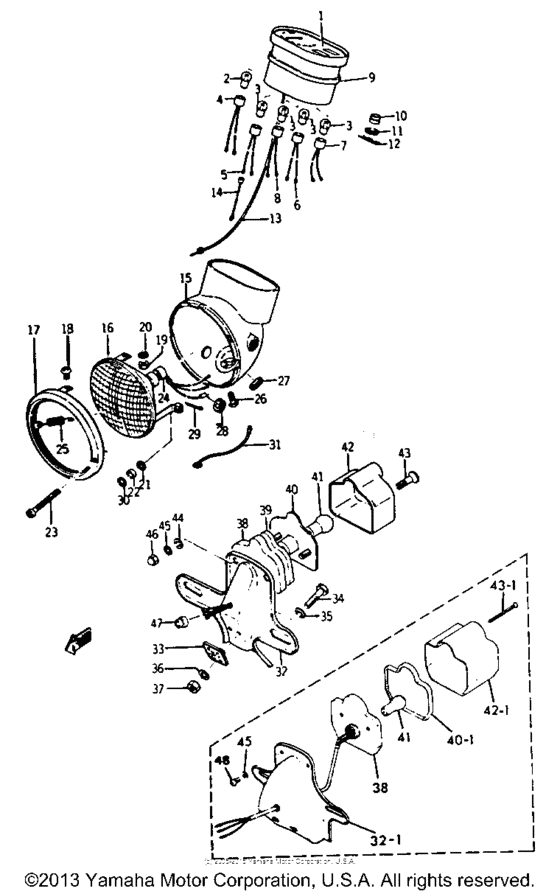

Head lamp and tail lamp Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
168-84721-60-00
Lens, Taillight
|
168-84721-60-00 |
— | ||
|
1
|
1
3AA-84331-00-00
Screw, Rim Adjusting
|
3AA-84331-00-00 |
— | ||
|
1
|
1
202-84711-60-00
Base, Taillight
|
202-84711-60-00 |
— | ||
|
1
|
1
164-84751-60-35
Bracket, License
|
164-84751-60-35 |
— | ||
|
1
|
1
174-83510-70-00
Speedometer Assembly
|
174-83510-70-00 |
— | ||
|
1
|
1
174-83511-20-00
Lens, Speedometer
|
174-83511-20-00 |
— | ||
|
2
|
2
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
3
|
3
256-84347-00-00
Bulb
|
256-84347-00-00 |
— | ||
|
3
|
3
202-84710-60-00
Taillight Unit Assembly
|
202-84710-60-00 |
— | ||
|
3
|
3
193-84710-01-00
Taillight Unit Assembly
|
193-84710-01-00 |
— | ||
|
4
|
4
174-83536-20-00
Socket, Meter
|
174-83536-20-00 |
— | ||
|
5
|
5
174-83537-20-00
Socket, Neutral
|
174-83537-20-00 |
— | ||
|
6
|
6
174-83538-20-00
Socket, Flasher
|
174-83538-20-00 |
— | ||
|
7
|
7
174-83539-20-00
Socket, Charge
|
174-83539-20-00 |
— | ||
|
8
|
8
174-83529-70-00
Socket, High-Beam
|
174-83529-70-00 |
— | ||
|
9
|
9
174-83513-00-00
Damper
|
174-83513-00-00 |
— | ||
|
10
|
10
904-80120-97-00
Grommet
|
904-80120-97-00 |
— | ||
|
11
|
11
174-83524-00-00
Washer, Special
|
174-83524-00-00 |
— | ||
|
12
|
12
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
13
|
13
156-83550-01-00
Speedometer Cable
|
156-83550-01-00 |
— | ||
|
14
|
14
122-84149-00-00
Wire, Lead 2
|
122-84149-00-00 |
— | ||
|
15
|
15
174-84330-00-29
Body Assembly
|
174-84330-00-29 |
— | ||
|
15
|
15
174-84330-00-81
Body Assembly
|
174-84330-00-81 |
— | ||
|
16
|
16
174-84320-60-00
Lens Assembly
|
174-84320-60-00 |
— | ||
|
17
|
17
193-84315-60-00
Rim, Headlight
|
193-84315-60-00 |
— | ||
|
18
|
18
168-84338-60-00
Collar, Body Ftng
|
168-84338-60-00 |
— | ||
|
19
|
19
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
20
|
20
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
21
|
21
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
21
|
21
132-84334-61-00
Nut, Adjusting
|
132-84334-61-00 |
— | ||
|
22
|
22
132-84328-60-00
Spacer
|
132-84328-60-00 |
— | ||
|
23
|
23
132-84331-60-00
Screw, Rim Adjusting
|
132-84331-60-00 |
— | ||
|
23
|
23
198-84331-60-00
Screw, Rim Adjusting
|
198-84331-60-00 |
— | ||
|
24
|
24
174-84312-60-00
Socket
|
174-84312-60-00 |
— | ||
|
25
|
25
168-84335-60-00
Spring
|
168-84335-60-00 |
— | ||
|
26
|
26
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
26
|
26
150-84125-00-00
Screw, Rim Fitting
|
150-84125-00-00 |
— | ||
|
27
|
27
150-84153-00-00 Grommet, Wrhrnes |
150-84153-00-00 |
from US $14.45 |
||
|
28
|
28
168-84354-00-00
Grommet
|
168-84354-00-00 |
— | ||
|
29
|
29
914-01100-15-00
Pin, Cotter
|
914-01100-15-00 |
— | ||
|
30
|
30
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
31
|
31
173-84313-00-00
Wire, Earth
|
173-84313-00-00 |
— | ||
|
32
|
32
164-84751-60-35
Bracket, License
|
164-84751-60-35 |
— | ||
|
33
|
33
174-84753-00-00
Damper
|
174-84753-00-00 |
— | ||
|
34
|
34
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
35
|
35
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
37
|
37
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
38
|
38
168-84716-00-00
Cover, Taillight
|
168-84716-00-00 |
— | ||
|
39
|
39
168-84712-60-00
Seat, Base
|
168-84712-60-00 |
— | ||
|
39
|
39
168-84712-00-00
Seat, Base
|
168-84712-00-00 |
— | ||
|
40
|
40
202-84711-60-00
Base, Taillight
|
202-84711-60-00 |
— | ||
|
40
|
40
193-84711-00-00
Base, Taillight
0-3. |
193-84711-00-00 |
— | ||
|
41
|
41
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
US $5.13 |
||
| replacement | |||||
|
41
|
41
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
42
|
42
168-84721-60-00
Lens, Taillight
42-1. |
168-84721-60-00 |
— | ||
|
43
|
43
168-84724-00-00
Screw, Lens Fitting
|
168-84724-00-00 |
— | ||
|
44
|
44
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
45
|
45
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
46
|
46
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
46
|
46
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
47
|
47
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.94 |
||
|
48
|
48
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
48
|
48
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
