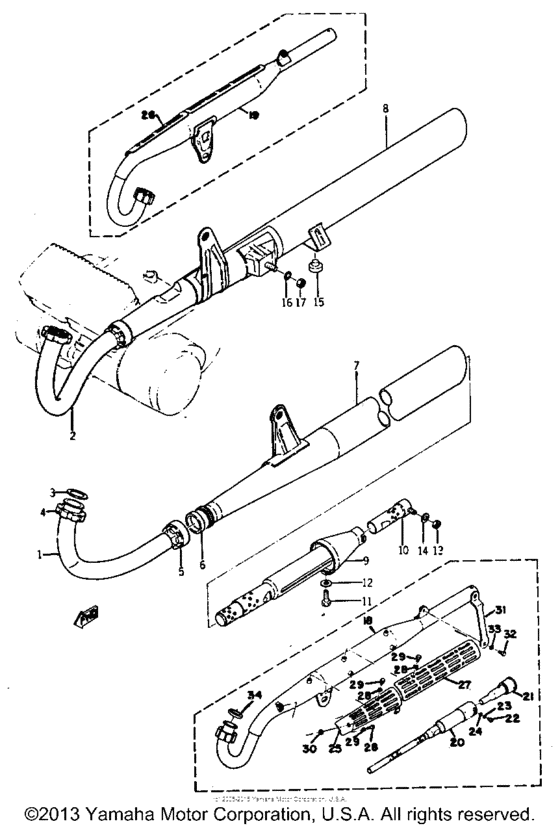

Muffler Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-14611-00-00
Pipe, Exhaust L
|
174-14611-00-00 |
— | ||
|
2
|
2
174-14621-00-00
Pipe, Exhaust R
|
174-14621-00-00 |
— | ||
|
3
|
3
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
3
|
3
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
4
|
4
174-14612-01-00
Nut, Ring
|
174-14612-01-00 |
— | ||
|
5
|
5
132-14713-00-00 Nut, Muffler Joint |
132-14713-00-00 |
US $29.32 |
||
|
6
|
6
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
7
|
7
174-14710-21-00
Muffler Assembly L
|
174-14710-21-00 |
— | ||
|
8
|
8
174-14720-21-00
Muffler Assembly R
|
174-14720-21-00 |
— | ||
|
9
|
9
174-14786-20-00
Arrester, Spark
|
174-14786-20-00 |
— | ||
|
10
|
10
122-14785-20-00
Diffuser
|
122-14785-20-00 |
— | ||
|
11
|
11
97313-05010-00 Bolt, Hexagon |
97313-05010-00 |
from US $1.66 |
||
| replacement | |||||
|
11
|
11
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
12
|
12
92990-05300-00 Washer, Internal Tooth |
92990-05300-00 |
from US $1.56 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
15
|
15
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
18
|
18
194-14610-30-00
Exhaust Pipe Assembly L
|
194-14610-30-00 |
— | ||
|
19
|
19
194-14620-30-00
Exhaust Pipe Assembly R
|
194-14620-30-00 |
— | ||
|
20
|
20
178-14753-00-00
Silencer, Exhaust
|
178-14753-00-00 |
— | ||
|
21
|
21
178-14752-00-00
Pipe, Outlet
|
178-14752-00-00 |
— | ||
|
22
|
22
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
22
|
22
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
194-14718-30-00
Protector, Muff 1
|
194-14718-30-00 |
— | ||
|
26
|
26
194-14738-30-00
Protecter, Muff 3
|
194-14738-30-00 |
— | ||
|
27
|
27
194-14728-30-00
Protecter, Muff 2
|
194-14728-30-00 |
— | ||
|
28
|
28
98903-06008-00 Screw, Bind (2H9) |
98903-06008-00 |
US $1.42 |
||
| replacement | |||||
|
28
|
28
98980-06008-00 Screw, Bind |
98980-06008-00 |
from US $1.42 |
||
|
29
|
29
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
30
|
30
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
30
|
30
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
|
31
|
31
178-14771-00-00
Stay, Muffler 1
|
178-14771-00-00 |
— | ||
|
32
|
32
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
32
|
32
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
34
|
34
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
34
|
34
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
