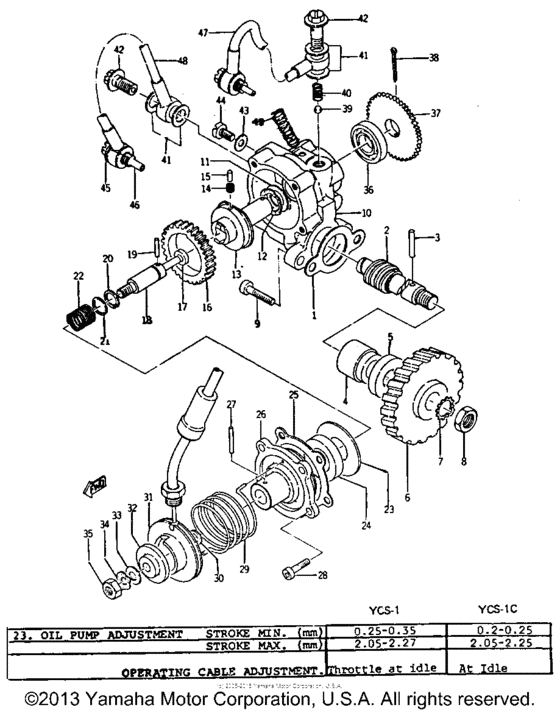

Oil pump Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3MT-13116-00-00
Gasket, Pump Case
|
3MT-13116-00-00 |
— | ||
| replacement | |||||
|
1
|
1
126-13116-01-00 Gasket, Pump Case |
126-13116-01-00 |
from US $1.94 |
||
|
1
|
1
174-13101-01-00
Oil Pump Assembly
|
174-13101-01-00 |
— | ||
|
2
|
2
174-13175-00-00
Shaft, Worm
|
174-13175-00-00 |
— | ||
|
3
|
3
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.70 |
||
|
4
|
4
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
4
|
4
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
5
|
5
93101-10002-00 Oil Seal |
93101-10002-00 |
from US $5.24 |
||
|
6
|
6
174-13178-00-00
Gear, Pump Drive
|
174-13178-00-00 |
— | ||
|
7
|
7
92901-08400-00 Washer,ex.tooth |
92901-08400-00 |
US $2.98 |
||
| replacement | |||||
|
7
|
7
92990-08400-00 Washer |
92990-08400-00 |
from US $2.98 |
||
|
8
|
8
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
9
|
9
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
32
|
32
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
33
|
33
137-13137-00-10 Shim (T=1.0) |
137-13137-00-10 |
from US $3.26 |
||
|
34
|
34
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
35
|
35
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
35
|
35
137-13139-00-00 Nut |
137-13139-00-00 |
US $2.83 |
||
|
36
|
36
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $3.38 |
||
|
37
|
37
137-13128-00-00
Plate, Starter
|
137-13128-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
40
|
40
905-01020-17-00
Spring, Compression
|
905-01020-17-00 |
— | ||
|
41
|
41
90430-06011-00 GasketGasket (137-13167-00) |
90430-06011-00 |
from US $3.26 |
||
| replacement | |||||
|
41
|
41
904-30062-24-00 Gasket |
904-30062-24-00 |
from US $2.79 |
||
|
42
|
42
90401-06001-00 Bolt, Union |
90401-06001-00 |
from US $5.10 |
||
|
43
|
43
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
44
|
44
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
44
|
44
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
44
|
44
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
44
|
44
164-81245-20-00
Screw, Pan Head
|
164-81245-20-00 |
— | ||
|
45
|
45
90430-06011-00 GasketGasket (137-13167-00) |
90430-06011-00 |
from US $3.26 |
||
| replacement | |||||
|
45
|
45
904-30062-24-00 Gasket |
904-30062-24-00 |
from US $2.79 |
||
|
46
|
46
904-01060-11-00
Bolt, Union
|
904-01060-11-00 |
— | ||
|
47
|
47
174-13161-00-00
Pipe, Delivery 1
|
174-13161-00-00 |
— | ||
|
48
|
48
174-13171-00-00
Pipe, Delivery 2
|
174-13171-00-00 |
— | ||
|
49
|
49
126-13184-00-00
Spring, Oil Pipe
|
126-13184-00-00 |
— | ||
