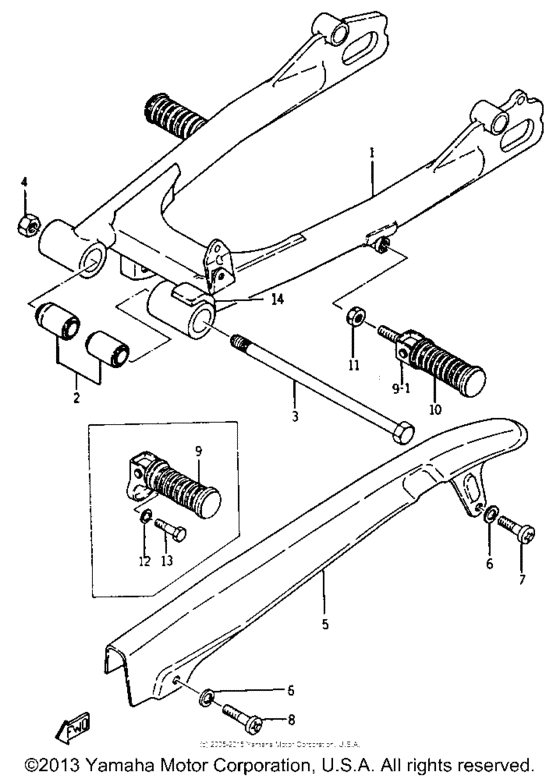

Rear arm and chain case Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
120-27430-02-00 Rr Footrest Assembly 1ISO |
120-27430-02-00 |
from US $31.39 |
||
|
1
|
1
174-22110-02-33
Rear Arm
|
174-22110-02-33 |
— | ||
|
1
|
1
174-22110-00-00
New Genuine Part
IN PRICE BOOK |
174-22110-00-00 |
— | ||
|
2
|
2
178-27430-00-00
Rr Footrest Assembly 1
|
178-27430-00-00 |
— | ||
|
2
|
2
174-22123-00-00
Bush 1
|
174-22123-00-00 |
— | ||
|
3
|
3
174-22141-00-00
Shaft, Pivot
|
174-22141-00-00 |
— | ||
|
3
|
3
178-22141-00-00
Shaft, Pivot
|
178-22141-00-00 |
— | ||
|
4
|
4
953-03146-00-00 Nut |
953-03146-00-00 |
US $3.09 |
||
|
5
|
5
174-22311-00-93
Case, Chain
|
174-22311-00-93 |
— | ||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
8
|
8
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
9
|
9
120-27430-00-00
Rear Footrest Assy
|
120-27430-00-00 |
— | ||
|
10
|
10
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.70 |
||
|
11
|
11
95301-12700-00 Nut95302-12700-00 ISO |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
95317-12700-00 Nut, Hexagon Small95302-12700-00 ISO |
95317-12700-00 |
from US $2.36 |
||
|
11
|
11
901-70120-61-00
Nut, Hexagon
|
901-70120-61-00 |
— | ||
|
12
|
12
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
13
|
13
973-21120-40-00
Bolt, Hexagon
|
973-21120-40-00 |
— | ||
|
13
|
13
97001-12020-00 Bolt |
97001-12020-00 |
from US $3.58 |
||
| replacement | |||||
|
13
|
13
97027-12020-00 Bolt, Hexagon |
97027-12020-00 |
from US $5.96 |
||
|
14
|
14
173-22151-00-00 Seal, Guard |
173-22151-00-00 |
US $5.53 |
||
|
14
|
14
9Y5-8F391-13-00 Chain (Did520Vm2-114Ll)IN PRICE BOOK |
9Y5-8F391-13-00 |
from US $268.03 |
||
|
14
|
14
ATV-EXPLO-RE-LB
Decal, Exploring Edition
|
ATV-EXPLO-RE-LB |
— | ||
|
14
|
14
BYT-5TG25-BB-00 Graphic Kit (Bill Ballance) |
BYT-5TG25-BB-00 |
US $204.55 |
||
| replacement | |||||
|
14
|
14
ATV-5TG25-01-SE STEALTH ALLOY BRACKE |
ATV-5TG25-01-SE |
US $204.55 |
||
