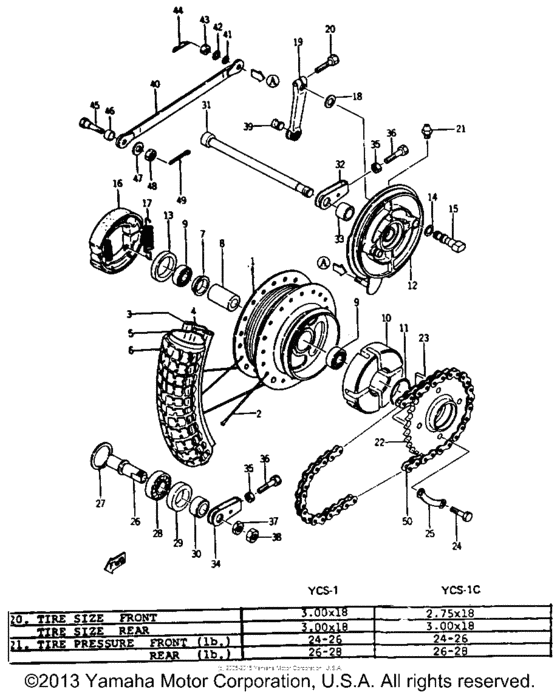

Rear wheel Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
214-W2535-00-00 Brake Shoe Kit |
214-W2535-00-00 |
from US $32.44 |
||
| replacement | |||||
|
1
|
1
3GW-W253A-00-00 Brake Shoe Kit |
3GW-W253A-00-00 |
from US $33.02 |
||
|
1
|
1
174-25311-00-00
Hub, Rear
|
174-25311-00-00 |
— | ||
|
2
|
2
141-25304-00-00
Spoke Set, Rear
|
141-25304-00-00 |
— | ||
|
3
|
3
944-16180-16-00
Rim 1.60X18
1.60X18 |
944-16180-16-00 |
— | ||
|
4
|
4
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
4
|
4
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
5
|
5
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
5
|
5
94227-18010-00
Tube
|
94227-18010-00 |
— | ||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
6
|
6
941-30180-38-00
Tire
|
941-30180-38-00 |
— | ||
|
6
|
6
941-27183-12-00
275X18 Yoko Y93C
Y93C |
941-27183-12-00 |
— | ||
|
7
|
7
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
8
|
8
90560-15136-00 Spacer (136-25317-00)136-25317-00 |
90560-15136-00 |
from US $11.19 |
||
|
9
|
9
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
10
|
10
174-25364-00-00
Damper
|
174-25364-00-00 |
— | ||
|
11
|
11
93210-41042-00 O-Ring |
93210-41042-00 |
from US $3.04 |
||
|
12
|
12
397-25320-10-00
Brake Shoe Plt Assembly
|
397-25320-10-00 |
— | ||
|
13
|
13
931-01420-18-00
Oil Seal, S-Type
|
931-01420-18-00 |
— | ||
|
14
|
14
136-25153-00-00
Shim, Camshaft
|
136-25153-00-00 |
— | ||
|
15
|
15
136-25351-01-00
Camshaft
|
136-25351-01-00 |
— | ||
|
16
|
16
214-W2535-00-00 Brake Shoe Kit |
214-W2535-00-00 |
from US $32.44 |
||
| replacement | |||||
|
16
|
16
3GW-W253A-00-00 Brake Shoe Kit |
3GW-W253A-00-00 |
from US $33.02 |
||
|
17
|
17
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2.36 |
||
|
18
|
18
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
19
|
19
122-25355-00-00 Lever, Camshaft |
122-25355-00-00 |
from US $24.65 |
||
|
20
|
20
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
20
|
20
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
21
|
21
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
22
|
22
174-25439-20-33
Sprocket, Drivn 39T
39T U.RU.R |
174-25439-20-33 |
— | ||
| replacement | |||||
|
22
|
22
174-25439-20-00
SPROCKET,DRIVN 40T
39T U.RU.R |
174-25439-20-00 |
— | ||
|
22
|
22
174-25435-20-00
Sprocket, Drivn 35T
35T U.RU.R |
174-25435-20-00 |
— | ||
|
22
|
22
174-25437-20-33
Sprocket, Drivn 37T
37T STDU.RU.R |
174-25437-20-33 |
— | ||
|
22
|
22
174-25440-20-33
Sprocket, Drivn 40T
40T U.RU.R |
174-25440-20-33 |
— | ||
|
23
|
23
174-25366-01-00
Clutch, Hub
|
174-25366-01-00 |
— | ||
|
24
|
24
901-05100-05-00
Bolt, Washer Based (141-25411-0
141-25411-0 |
901-05100-05-00 |
— | ||
|
25
|
25
148-25412-00-00
Washer
|
148-25412-00-00 |
— | ||
|
26
|
26
174-25387-00-00
Axle, Sprocket
|
174-25387-00-00 |
— | ||
|
27
|
27
990-09475-00-00 Circlip |
990-09475-00-00 |
from US $3.04 |
||
|
27
|
27
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.66 |
||
|
28
|
28
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
28
|
28
93306-00438-00 Bearing |
93306-00438-00 |
from US $13.82 |
||
|
28
|
28
93306-20404-00 Bearing |
93306-20404-00 |
from US $15.02 |
||
| replacement | |||||
|
28
|
28
933-06204-46-00 Bearing |
933-06204-46-00 |
from US $15.02 |
||
|
29
|
29
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.21 |
||
|
29
|
29
931-06300-08-00
Oil Seal, Dd-Type
|
931-06300-08-00 |
— | ||
|
30
|
30
903-87201-60-00
Collar
|
903-87201-60-00 |
— | ||
|
30
|
30
174-25386-00-00
Collar, Sprkt Axle
|
174-25386-00-00 |
— | ||
|
31
|
31
397-25381-00-00
Axle, Wheel
|
397-25381-00-00 |
— | ||
|
32
|
32
174-25389-00-00
Puller, Chain 2
|
174-25389-00-00 |
— | ||
|
33
|
33
903-87261-97-00
Collar
|
903-87261-97-00 |
— | ||
|
34
|
34
174-25388-00-00
Puller, Chain 1
|
174-25388-00-00 |
— | ||
|
35
|
35
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
35
|
35
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
36
|
36
90101-06016-00 Bolt |
90101-06016-00 |
from US $7.37 |
||
|
37
|
37
90170-20167-00 Nut, Hexagon (137-25385-00)137-25385-00 |
90170-20167-00 |
from US $21.68 |
||
|
38
|
38
953-03146-00-00 Nut |
953-03146-00-00 |
US $3.09 |
||
|
39
|
39
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
40
|
40
174-25371-00-00
Bar, Tension
|
174-25371-00-00 |
— | ||
|
41
|
41
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
41
|
41
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
42
|
42
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
43
|
43
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
43
|
43
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
44
|
44
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
45
|
45
901-09080-68-00
Bolt
|
901-09080-68-00 |
— | ||
|
46
|
46
174-25374-00-00
Spring, Tension Bar
|
174-25374-00-00 |
— | ||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
48
|
48
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
48
|
48
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
49
|
49
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
49
|
49
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
50
|
50
509-F3158-L0-00 GasketIN PRICE BOOK |
509-F3158-L0-00 |
from US $3.54 |
||
| replacement | |||||
|
50
|
50
509-23158-L0-00 GasketIN PRICE BOOK |
509-23158-L0-00 |
from US $4.03 |
||
|
50
|
50
945-14281-06-00
Chain
|
945-14281-06-00 |
— | ||
