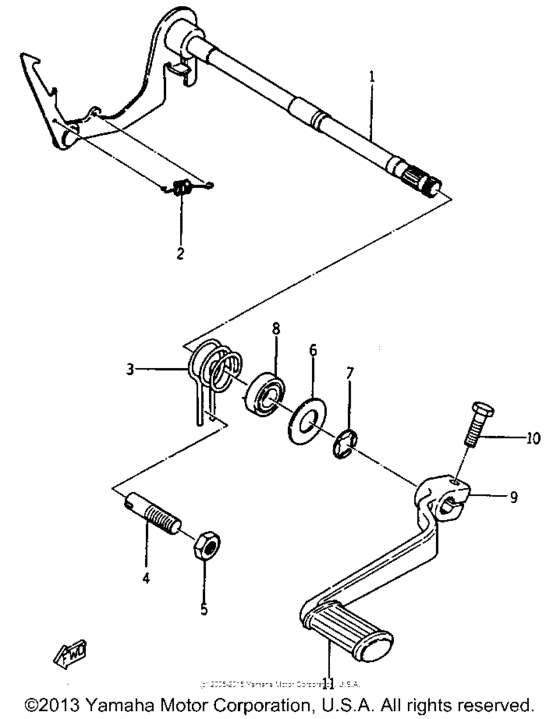

Shift shaft (2) Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-18101-02-00
Shift Shaft Assembly.1
|
174-18101-02-00 |
— | ||
|
2
|
2
90506-09009-00 Spring, Tension |
90506-09009-00 |
from US $2.55 |
||
|
3
|
3
90508-32207-00 Spring, Torsion (132-18124-00)132-18124-00 |
90508-32207-00 |
from US $8.50 |
||
|
4
|
4
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
5
|
5
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
5
|
5
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
6
|
6
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
7
|
7
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
8
|
8
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.86 |
||
|
9
|
9
173-18111-01-93
Pedal, Shift
|
173-18111-01-93 |
— | ||
|
10
|
10
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
10
|
10
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
11
|
11
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
