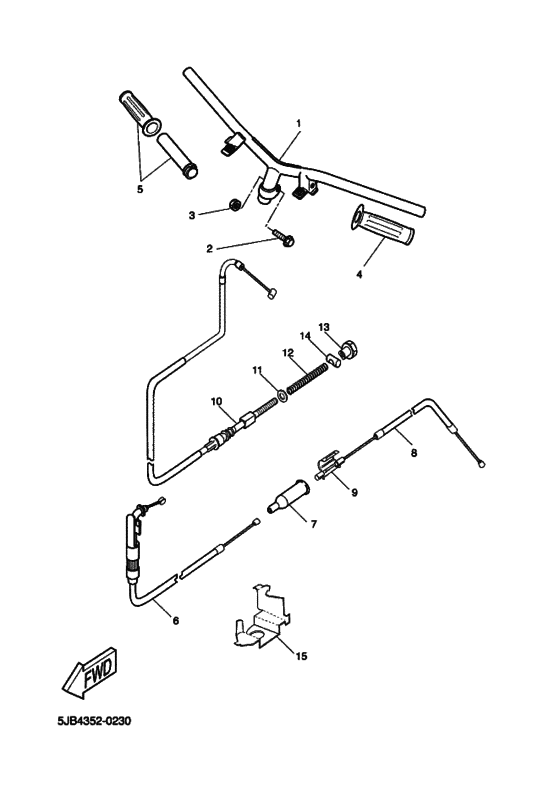

Steering handle & cable Diagram Yamaha YH50 Why
- Year
- 2002
- Colour
- Dark Gray Metallic 8 (DNM8; 0809)
- Model code
- 5JB8
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- YH50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EU-F6110-00-00
Handle Comp
|
5EU-F6110-00-00 |
— | ||
|
2
|
2
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
3
|
3
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
4
|
4
5EU-F6241-10-00
Grip
UR FOR LNMG |
5EU-F6241-10-00 |
— | ||
|
4
|
4
5EU-F6241-20-00
Grip
UR FOR DGBMD/DNM8 |
5EU-F6241-20-00 |
— | ||
|
5
|
5
5EU-F6240-10-00
Grip Assy
UR FOR LNMG |
5EU-F6240-10-00 |
— | ||
|
5
|
5
5EU-F6240-20-00
Grip Assy
UR FOR DGBMD/DNM8 |
5EU-F6240-20-00 |
— | ||
|
6
|
6
5EU-F6311-00-00
Cable, Throttle 1
|
5EU-F6311-00-00 |
— | ||
|
7
|
7
3WG-F6329-00-00 Cap, Rubber |
3WG-F6329-00-00 |
from US $9.67 |
||
|
8
|
8
4UY-F6312-00-00 Cable, Throttle 2 |
4UY-F6312-00-00 |
from US $35.44 |
||
|
9
|
9
3VL-F6261-00-00 Connector, Cable |
3VL-F6261-00-00 |
from US $12.47 |
||
|
10
|
10
5EU-F6351-00-00
Cable, Brake
|
5EU-F6351-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5EU-F6351-01-00
Cable, Brake
|
5EU-F6351-01-00 |
— | ||
|
11
|
11
90202-08175-00 Washer, Plate |
90202-08175-00 |
from US $1.98 |
||
|
12
|
12
90501-122E1-00 Spring, Compression |
90501-122E1-00 |
from US $1.70 |
||
|
13
|
13
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
14
|
14
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
15
|
15
4KH-F6393-00-00
Holder
|
4KH-F6393-00-00 |
— | ||
