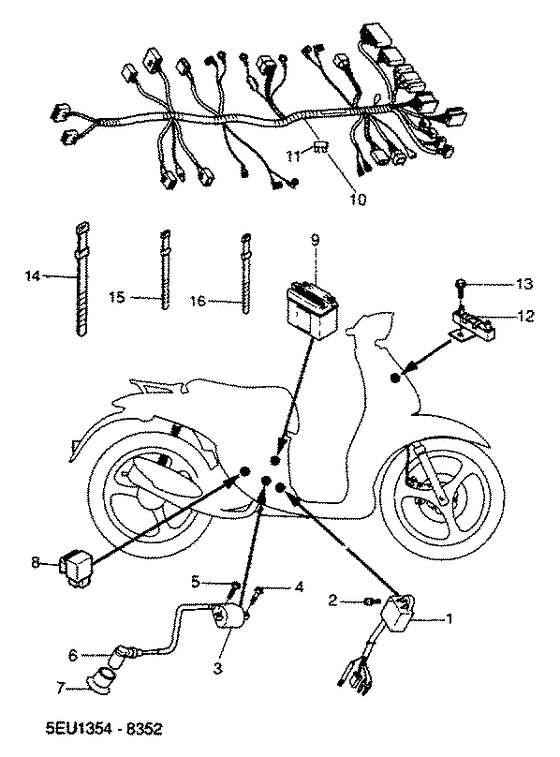

Electrical2 Diagram Yamaha YH50 Why
- Year
- 2001
- Model code
- 5PF1
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- YH50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-85540-10-00
C.d.i. Unit Assy
|
3KJ-85540-10-00 |
— | ||
| replacement | |||||
|
01
|
01
3KJ-H5540-00-00
Cdi Unit Assy
|
3KJ-H5540-00-00 |
— | ||
|
02
|
02
90110-06X16-00 Bolt, Hexagon Socket Head |
90110-06X16-00 |
US $9.07 |
||
|
03
|
03
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
| replacements | |||||
|
03
|
03
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
03
|
03
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
03
|
03
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
04
|
04
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
05
|
05
90105-06841-00 Bolt, Flange |
90105-06841-00 |
US $1.56 |
||
|
06
|
06
5PF-H2370-00-00
Plug Cap Assy
|
5PF-H2370-00-00 |
— | ||
|
07
|
07
3WG-H2372-00-00 Seal, Plug Cap |
3WG-H2372-00-00 |
from US $4.53 |
||
|
08
|
08
5DS-H1950-00-00 Relay Assy |
5DS-H1950-00-00 |
US $64.11 |
||
|
09
|
09
9079R-24278-00
Battery (Yb4L-B)
(ur) |
9079R-24278-00 |
— | ||
|
10
|
10
5EU-H2590-00-00
Wire Harness Assy
|
5EU-H2590-00-00 |
— | ||
|
11
|
11
5BR-H2151-00-00 Fuse (7.5A) |
5BR-H2151-00-00 |
US $1.56 |
||
|
12
|
12
5BK-H5370-00-00
Resistor Assy
|
5BK-H5370-00-00 |
— | ||
|
13
|
13
90154-06X02-00 Screw, Binding |
90154-06X02-00 |
US $11.19 |
||
|
14
|
14
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
15
|
15
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
16
|
16
4VU-H3936-01-00 Band, Switch Cord (95.7X2.5) |
4VU-H3936-01-00 |
from US $1.35 |
||
| replacement | |||||
|
16
|
16
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
