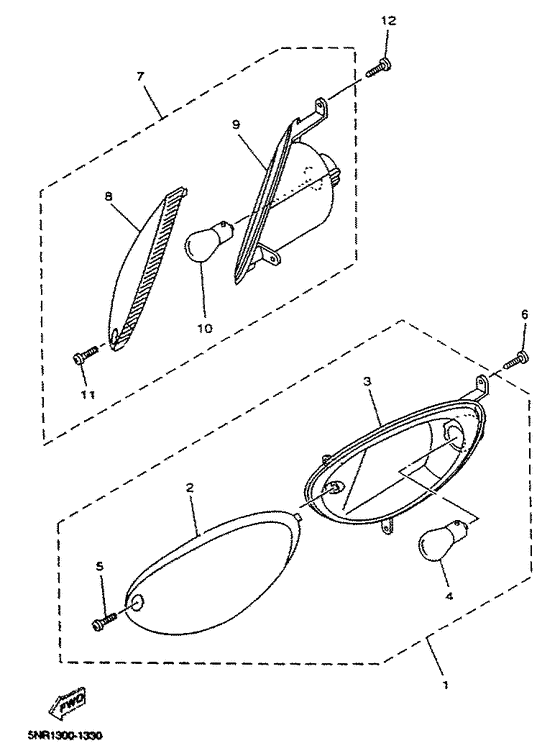

Flasher light Diagram Yamaha YP150 Majesty
- Year
- 2001
- Model code
- 5NS3
- Sales region
- England (999)
- Engine Capacity
- 150
- Model
- YP150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5DS-H3310-00-00
Front Flasher Light Assy 1
|
5DS-H3310-00-00 |
— | ||
|
02
|
02
5DS-H3312-00-00
･lens, Flasher
|
5DS-H3312-00-00 |
— | ||
|
03
|
03
5DS-H3314-00-00
･base, Flasher 1
|
5DS-H3314-00-00 |
— | ||
|
04
|
04
5DS-H3311-00-00
･bulb, Flasher
|
5DS-H3311-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
5AD-H3333-00-00
Screw, Lens Fitting
|
5AD-H3333-00-00 |
— | ||
|
06
|
06
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
07
|
07
5DS-H3320-00-00
Front Flasher Light Assy 2
|
5DS-H3320-00-00 |
— | ||
|
08
|
08
5DS-H3322-00-00
･lens, Flasher 2
|
5DS-H3322-00-00 |
— | ||
|
09
|
09
5DS-H3324-00-00
･base, Flasher 2
|
5DS-H3324-00-00 |
— | ||
|
10
|
10
5DS-H3311-00-00
･bulb, Flasher
|
5DS-H3311-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
5AD-H3333-00-00
Screw, Lens Fitting
|
5AD-H3333-00-00 |
— | ||
|
12
|
12
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
