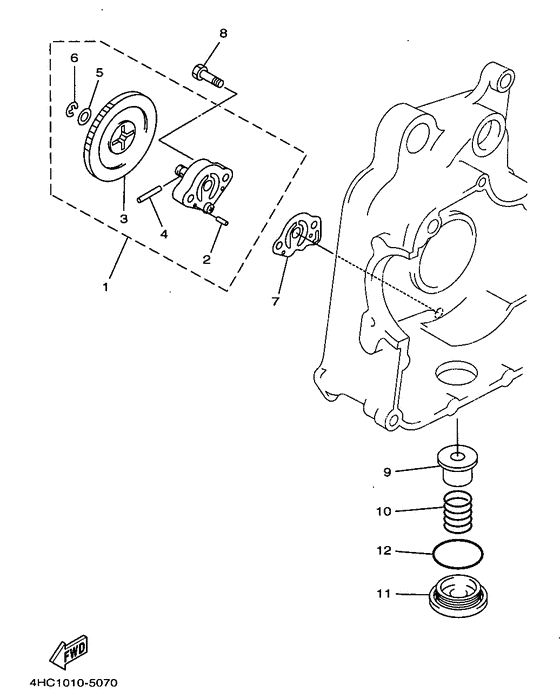

Oil pump Diagram Yamaha YP250 Majesty
- Year
- 1997
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4UC2
- Sales region
- Norway (090)
- Engine Capacity
- 250
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4HC-13300-00-00 Oil Pump Assy |
4HC-13300-00-00 |
US $94.36 |
||
| replacement | |||||
|
01
|
01
4HC-13300-01-00 Oil Pump Assy |
4HC-13300-01-00 |
US $68.84 |
||
|
02
|
02
93603-12221-00 Pin, Dowel |
93603-12221-00 |
from US $1.98 |
||
|
03
|
03
4HC-13325-00-00 Gear, Pump Driven |
4HC-13325-00-00 |
US $13.03 |
||
|
04
|
04
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.70 |
||
|
05
|
05
90201-08512-00 Washer, Plate |
90201-08512-00 |
from US $2.08 |
||
|
06
|
06
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
07
|
07
4HC-13475-00-00 Gasket |
4HC-13475-00-00 |
US $1.70 |
||
|
08
|
08
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.66 |
||
|
09
|
09
51Y-13411-00-00 Strainer, Oil |
51Y-13411-00-00 |
from US $7.42 |
||
| replacement | |||||
|
09
|
09
5YP-E3411-00-00 Strainer, Oil |
5YP-E3411-00-00 |
from US $4.90 |
||
|
10
|
10
90501-18576-00 Spring, Compression |
90501-18576-00 |
from US $1.70 |
||
|
11
|
11
30X-15351-00-00
Plug, Drain
|
30X-15351-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4HC-15351-00-00 Plug, Drain |
4HC-15351-00-00 |
from US $12.12 |
||
|
12
|
12
93210-35520-00 O-Ring |
93210-35520-00 |
from US $7.21 |
||
| replacement | |||||
|
12
|
12
932-10355-12-00 O-Ring |
932-10355-12-00 |
from US $7.21 |
||
