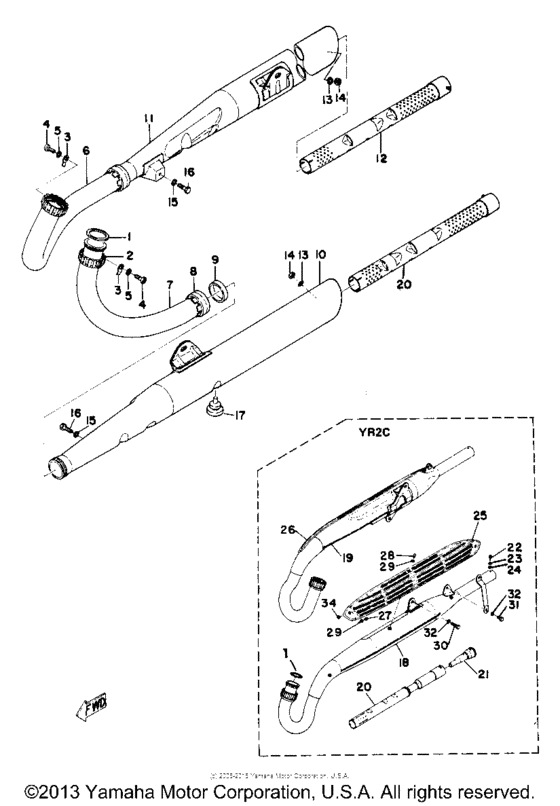

Exhaust Diagram Yamaha YR1/ YR2
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
168-14613-00-00
Gasket, Exst Pipe
|
168-14613-00-00 |
— | ||
|
2
|
2
168-14612-00-00
Nut, Ring
|
168-14612-00-00 |
— | ||
|
3
|
3
168-14685-00-00
Plate
|
168-14685-00-00 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
168-14621-00-00
Pipe, Exhaust R
|
168-14621-00-00 |
— | ||
|
7
|
7
168-14611-00-00
Pipe, Exhaust L
|
168-14611-00-00 |
— | ||
|
8
|
8
168-14713-00-00
Nut, Muffler Joint
|
168-14713-00-00 |
— | ||
|
9
|
9
904-30420-88-00
Gasket (168-14714-00)
168-14714-00 |
904-30420-88-00 |
— | ||
|
10
|
10
168-14710-01-00
Muffler Assembly L
|
168-14710-01-00 |
— | ||
|
11
|
11
168-14720-02-00
Muffler Assembly R
|
168-14720-02-00 |
— | ||
|
12
|
12
168-14753-01-00
Silencer, Exhaust
|
168-14753-01-00 |
— | ||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
95380-05600-00 NutON 168-14753-01 REF 12 |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
953-11057-00-00
Nut(3Fv)
ON 168-14753-00 REF 12 |
953-11057-00-00 |
— | ||
| replacement | |||||
|
14
|
14
953-17057-00-00 NutON 168-14753-00 REF 12 |
953-17057-00-00 |
from US $2.65 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
16
|
16
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
16
|
16
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
17
|
17
278-27114-00-00 Stopper, Main Stand |
278-27114-00-00 |
from US $5.28 |
||
|
18
|
18
222-14610-31-00
Exhaust Pipe Assembly L
|
222-14610-31-00 |
— | ||
|
19
|
19
222-14620-31-00
Exhaust Pipe Assembly R
|
222-14620-31-00 |
— | ||
|
20
|
20
222-14753-30-00
Silencer, Exhaust
|
222-14753-30-00 |
— | ||
|
21
|
21
178-14752-30-00
New Genuine Part
IN PRICE BOOK |
178-14752-30-00 |
— | ||
|
22
|
22
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
22
|
22
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
222-14718-30-00
Protector, Muff 1
|
222-14718-30-00 |
— | ||
|
26
|
26
222-14728-30-00
Protecter, Muff 2
|
222-14728-30-00 |
— | ||
|
27
|
27
98903-06008-00 Screw, Bind (2H9) |
98903-06008-00 |
US $1.42 |
||
| replacement | |||||
|
27
|
27
98980-06008-00 Screw, Bind |
98980-06008-00 |
from US $1.42 |
||
|
28
|
28
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
28
|
28
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
28
|
28
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
29
|
29
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
30
|
30
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
30
|
30
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
30
|
30
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
31
|
31
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
31
|
31
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
32
|
32
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
33
|
33
222-14771-30-00
Stay, Muffler 1
|
222-14771-30-00 |
— | ||
|
34
|
34
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
