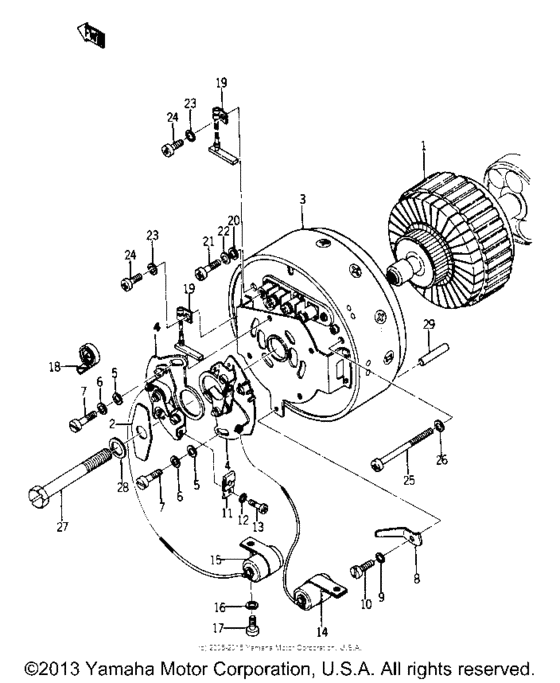

Generator Diagram Yamaha YR1/ YR2
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
168-81235-20-00
Screw, Stator
|
168-81235-20-00 |
— | ||
|
1
|
1
168-81200-22-00
Dc Generator Assembly
|
168-81200-22-00 |
— | ||
|
1
|
1
168-81255-22-00
Armature
|
168-81255-22-00 |
— | ||
|
1
|
1
168-81221-21-00
Contact Brkr Assembly
ON 168-81200-22 REF. 0-1 |
168-81221-21-00 |
— | ||
|
2
|
2
168-81254-20-00
Plate, Cam
ON 168-81200-21 REF. 0- |
168-81254-20-00 |
— | ||
|
2
|
2
168-81251-20-00
Cam
ON 168-81200-22 REF. 0-1 |
168-81251-20-00 |
— | ||
|
3
|
3
168-81210-21-00
Stator Assembly
ON 168-81200-22 REF. 0-1 |
168-81210-21-00 |
— | ||
|
4
|
4
168-81222-21-00
Contact Brkr Assembly
ON 168-81200-22 REF. 0-1 |
168-81222-21-00 |
— | ||
|
5
|
5
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
6
|
6
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
7
|
7
98580-04008-00 Screw, Pan Head (713)ON 168-81200-22 REF. 0-1 |
98580-04008-00 |
from US $1.36 |
||
|
7
|
7
164-81246-20-00
Screw, Pan Head
ON 168-81200-21 REF. 0- |
164-81246-20-00 |
— | ||
|
8
|
8
168-81232-20-00
Plate, Timing
|
168-81232-20-00 |
— | ||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
10
|
10
164-81246-20-00
Screw, Pan Head
|
164-81246-20-00 |
— | ||
|
11
|
11
168-81231-20-00
Lubricator
|
168-81231-20-00 |
— | ||
|
12
|
12
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
13
|
13
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
13
|
13
925-03030-06-00
Screw
|
925-03030-06-00 |
— | ||
|
14
|
14
168-81225-20-00
Condenser 1
|
168-81225-20-00 |
— | ||
|
15
|
15
168-81226-20-00
Condenser 2
|
168-81226-20-00 |
— | ||
|
16
|
16
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
17
|
17
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
17
|
17
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
17
|
17
164-81245-20-00
Screw, Pan Head
|
164-81245-20-00 |
— | ||
|
18
|
18
131-81213-20-00
Spring, Brush
|
131-81213-20-00 |
— | ||
|
19
|
19
131-81211-20-00
Brush
|
131-81211-20-00 |
— | ||
|
20
|
20
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
21
|
21
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
21
|
21
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
22
|
22
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
23
|
23
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
24
|
24
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
24
|
24
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
24
|
24
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
24
|
24
164-81245-20-00
Screw, Pan Head
|
164-81245-20-00 |
— | ||
|
25
|
25
98501-05070-00 Screw, Pan Head |
98501-05070-00 |
from US $2.69 |
||
| replacement | |||||
|
25
|
25
985-80055-70-00 SCREW,PAN HEAD |
985-80055-70-00 |
from US $2.20 |
||
|
26
|
26
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
27
|
27
168-81252-21-00
Bolt
|
168-81252-21-00 |
— | ||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
29
|
29
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $2.08 |
||
