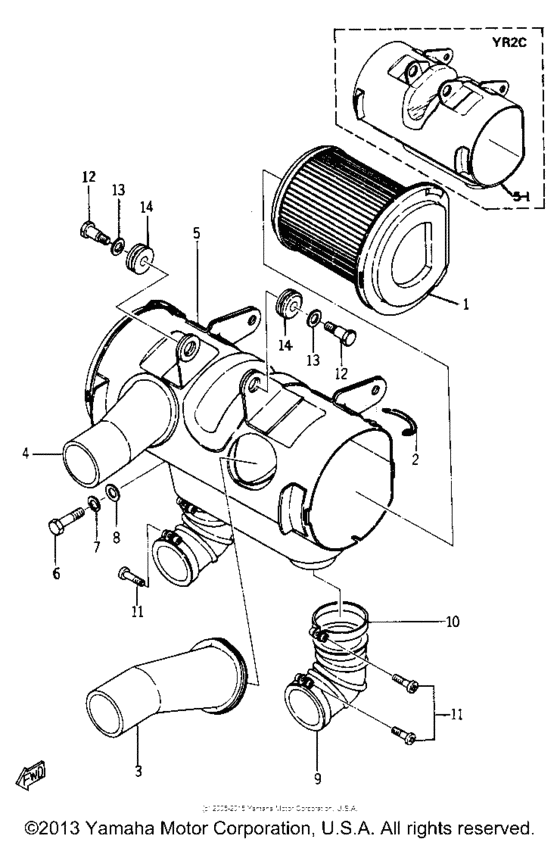

Intake Diagram Yamaha YR1/ YR2
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YR2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
168-14451-00-00
Element, Air Clnr
|
168-14451-00-00 |
— | ||
|
2
|
2
168-14424-00-00
Clip, Cap Fitting
|
168-14424-00-00 |
— | ||
|
3
|
3
168-14423-00-00
Pipe, Suction 1
|
168-14423-00-00 |
— | ||
|
4
|
4
168-14433-00-00
Pipe, Suction 2
|
168-14433-00-00 |
— | ||
|
5
|
5
168-14411-00-33
Case, Air Cleaner 1
|
168-14411-00-33 |
— | ||
|
5
|
5
222-14411-00-33
Case, Air Cleaner 1
|
222-14411-00-33 |
— | ||
|
6
|
6
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
168-14453-00-00
Joint, Air Clnr 1
|
168-14453-00-00 |
— | ||
|
10
|
10
904-60492-48-00
Clamp, Hose
|
904-60492-48-00 |
— | ||
|
11
|
11
985-11040-25-00
Screw, Pan Head
ON 170-14455-00 REF 10 |
985-11040-25-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-04025-00 Screw, Pan HeadON 170-14455-00 REF 10 |
98517-04025-00 |
from US $1.21 |
||
|
11
|
11
925-01040-25-00
Screw, Pan Head
ON 156-14455-00 REF 10 |
925-01040-25-00 |
— | ||
|
12
|
12
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
13
|
13
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
14
|
14
168-21747-00-00
Damper
|
168-21747-00-00 |
— | ||
