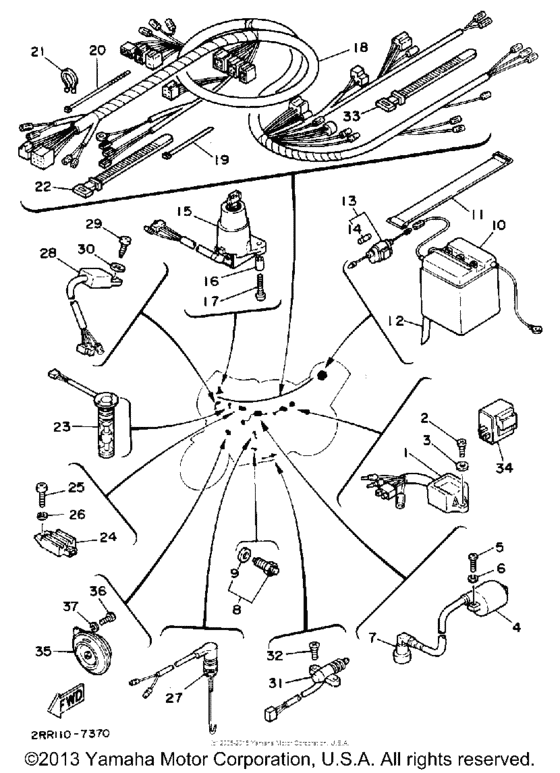

Electrical (1) Diagram Yamaha YSR50
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GX-85540-M0-00
Cdi Unit Assembly
|
2GX-85540-M0-00 |
— | ||
|
2
|
2
97702-60120-00 Screw, Tapping |
97702-60120-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
97707-60520-00 Screw, Tapping |
97707-60520-00 |
from US $1.42 |
||
|
3
|
3
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
4
|
4
5M0-82310-M0-00
Ignition Coil Assemb
|
5M0-82310-M0-00 |
— | ||
| replacements | |||||
|
4
|
4
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
4
|
4
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
4
|
4
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
4
|
4
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
5R2-82370-20-00 Plug Cap Assembly |
5R2-82370-20-00 |
from US $18.99 |
||
| replacements | |||||
|
7
|
7
166-82370-20-00 Plug Cap Assy |
166-82370-20-00 |
from US $11.80 |
||
|
7
|
7
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
8
|
8
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
8
|
8
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
8
|
8
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
9
|
9
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
9
|
9
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
10
|
10
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
10
|
10
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
11
|
11
561-24173-00-00 Band, Tnk Fitting 1 |
561-24173-00-00 |
from US $22.95 |
||
|
12
|
12
90445-080F3-00 Hose (L1500) |
90445-080F3-00 |
from US $10.91 |
||
| replacement | |||||
|
12
|
12
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
13
|
13
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
13
|
13
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
14
|
14
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
14
|
14
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
15
|
15
2YK-82501-00-00 Main Swch Strg Lck |
2YK-82501-00-00 |
US $268.88 |
||
| replacement | |||||
|
15
|
15
3TU-82501-00-00 Main Switch Steering Lock |
3TU-82501-00-00 |
US $268.88 |
||
|
16
|
16
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
17
|
17
90149-06229-00 Screw |
90149-06229-00 |
from US $2.18 |
||
| replacement | |||||
|
17
|
17
901-49061-82-00 Screw |
901-49061-82-00 |
from US $2.22 |
||
|
18
|
18
2RR-82590-00-00
Wire Harness Assembly
|
2RR-82590-00-00 |
— | ||
|
19
|
19
90465-13169-00 Band |
90465-13169-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
20
|
20
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
21
|
21
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
22
|
22
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
23
|
23
3J0-85720-00-00
Oil Level Gauge Assy
|
3J0-85720-00-00 |
— | ||
| replacement | |||||
|
23
|
23
5GP-85720-00-00 Oil Level Gauge Assy |
5GP-85720-00-00 |
from US $58.86 |
||
|
24
|
24
1RH-81960-A0-00 Rectifier/reg Assemblyassy |
1RH-81960-A0-00 |
US $203.76 |
||
|
25
|
25
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
2AL-82530-01-00 Stop Switch Assy |
2AL-82530-01-00 |
US $40.93 |
||
| replacements | |||||
|
27
|
27
4GY-82530-00-00 Stop Switch Assy |
4GY-82530-00-00 |
from US $35.42 |
||
|
27
|
27
2AL-82530-02-00
Stop Switch Assy
|
2AL-82530-02-00 |
— | ||
|
27
|
27
4GY-82530-01-00 Stop Switch Assy |
4GY-82530-01-00 |
US $39.53 |
||
|
28
|
28
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
29
|
29
97702-60120-00 Screw, Tapping |
97702-60120-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
97707-60520-00 Screw, Tapping |
97707-60520-00 |
from US $1.42 |
||
|
30
|
30
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
31
|
31
33E-82566-00-00 Switch, Side Stand |
33E-82566-00-00 |
from US $118.82 |
||
|
32
|
32
90152-05016-00 Screw, Flat Head |
90152-05016-00 |
from US $2.27 |
||
| replacement | |||||
|
32
|
32
98707-05014-00 Screw, Flat Head |
98707-05014-00 |
from US $1.94 |
||
|
33
|
33
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
33
|
33
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
34
|
34
20G-83350-60-00
Flasher Relay Assembly
|
20G-83350-60-00 |
— | ||
|
35
|
35
36X-83371-11-00 Horn |
36X-83371-11-00 |
from US $55.40 |
||
|
36
|
36
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
36
|
36
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
