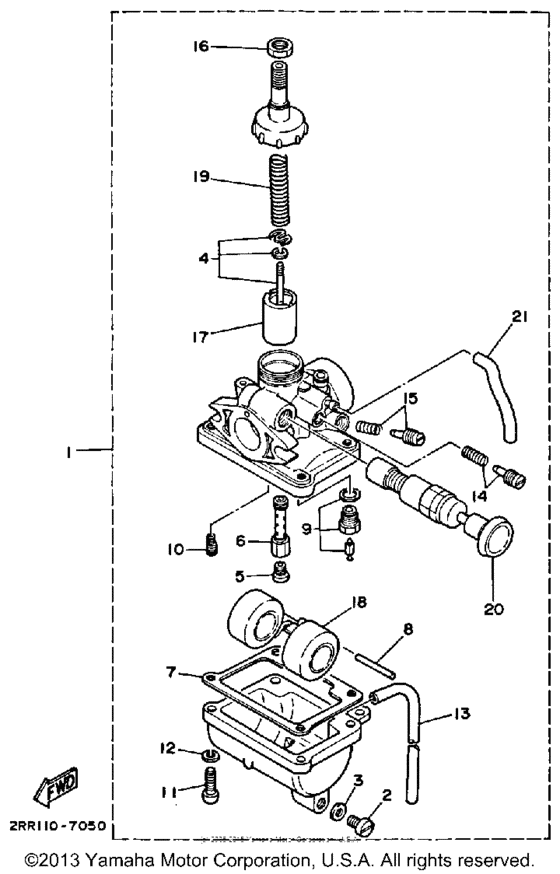

Carburetor Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AL-14101-01-00
Carburetor Assembly 1
|
2AL-14101-01-00 |
— | ||
|
2
|
2
266-14191-00-00 Plug, Drain |
266-14191-00-00 |
US $8.50 |
||
|
3
|
3
266-14126-00-00
Gasket
|
266-14126-00-00 |
— | ||
|
4
|
4
2AL-1490J-00-00
Needle Set
|
2AL-1490J-00-00 |
— | ||
|
5
|
5
127-14143-24-00 Jet, Main |
127-14143-24-00 |
from US $9.77 |
||
|
6
|
6
127-14141-10-00
Nozzle, Main
|
127-14141-10-00 |
— | ||
|
7
|
7
353-14184-00-00 Gasket, Float Chmbr |
353-14184-00-00 |
from US $13.18 |
||
|
8
|
8
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
9
|
9
31J-14107-00-00 Needle Valve Assembly |
31J-14107-00-00 |
from US $32.29 |
||
| replacement | |||||
|
9
|
9
31J-14107-20-00 Needle Valve Assembly |
31J-14107-20-00 |
from US $45.68 |
||
|
10
|
10
260-14142-17-00 Jet, Pilot |
260-14142-17-00 |
from US $12.31 |
||
|
11
|
11
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
11
|
11
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
90445-05319-00 Hose (L700) |
90445-05319-00 |
US $4.96 |
||
| replacement | |||||
|
13
|
13
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $5.41 |
||
|
14
|
14
12G-14103-00-00 Throttle Screw Set |
12G-14103-00-00 |
from US $21.39 |
||
|
15
|
15
12G-14104-00-00 Air Screw Set |
12G-14104-00-00 |
from US $9.40 |
||
| replacement | |||||
|
15
|
15
36R-14104-00-00 Air Screw Set |
36R-14104-00-00 |
from US $9.92 |
||
|
16
|
16
802-14169-00-00 Cap |
802-14169-00-00 |
from US $5.81 |
||
| replacement | |||||
|
16
|
16
8A7-14169-00-00 Cap |
8A7-14169-00-00 |
from US $5.68 |
||
|
17
|
17
353-14112-20-00
Valve, Throttle 1
|
353-14112-20-00 |
— | ||
|
18
|
18
3T2-14185-00-00
Float
|
3T2-14185-00-00 |
— | ||
|
19
|
19
353-14131-00-00
Spring, Thrtl Valve
|
353-14131-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
2GX-14171-00-00
Plunger, Starter
|
2GX-14171-00-00 |
— | ||
|
21
|
21
183-14197-01-00 Pipe, Airvent |
183-14197-01-00 |
from US $18.56 |
||
