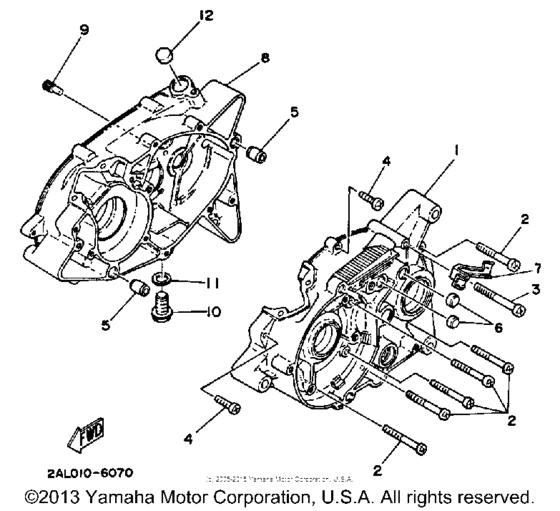

Crankcase Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3T2-15111-01-00
Crankcase 1
|
3T2-15111-01-00 |
— | ||
|
2
|
2
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
3
|
3
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
3
|
3
985-80065-55-00 Screw, Panhed (Gc2) |
985-80065-55-00 |
from US $3.74 |
||
|
4
|
4
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
5
|
5
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
5
|
5
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
6
|
6
90334-12009-00
Plug, Straight
|
90334-12009-00 |
— | ||
|
7
|
7
3T2-15484-01-00
Clamp 2
|
3T2-15484-01-00 |
— | ||
|
8
|
8
3T2-15121-02-00 Crankcase 2 |
3T2-15121-02-00 |
US $635.92 |
||
|
9
|
9
492-15387-00-00
Stopper
|
492-15387-00-00 |
— | ||
|
10
|
10
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
11
|
11
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
12
|
12
903-38160-15-00 Plug |
903-38160-15-00 |
from US $4.25 |
||
| replacement | |||||
|
12
|
12
90338-16029-00 Plug |
90338-16029-00 |
from US $4.25 |
||
