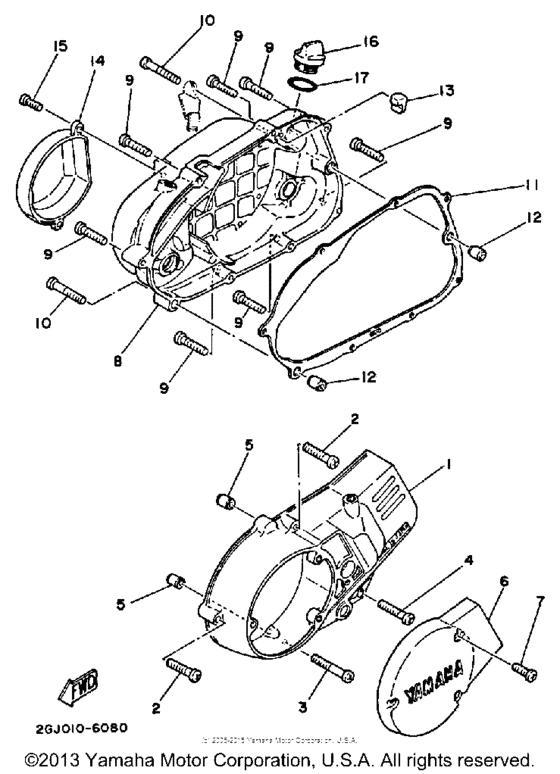

Crankcase cover Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3M7-15411-00-00
Cover, Crankcase L
|
3M7-15411-00-00 |
— | ||
|
2
|
2
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
2
|
2
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
3
|
3
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
4
|
4
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
5
|
5
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
5
|
5
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
5
|
5
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
6
|
6
3M7-15415-00-00 Cover, 1 |
3M7-15415-00-00 |
US $52.15 |
||
|
7
|
7
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
8
|
8
3M7-15421-00-00
Cover, Crankcase R
|
3M7-15421-00-00 |
— | ||
|
9
|
9
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
10
|
10
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
11
|
11
3MT-15451-00-00 Gasket, Crcs Cover |
3MT-15451-00-00 |
from US $19.72 |
||
|
12
|
12
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
12
|
12
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
12
|
12
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
13
|
13
353-15437-02-00
Scraper, Oil
|
353-15437-02-00 |
— | ||
|
14
|
14
3M7-15416-00-00
Cover, Oil Pump
|
3M7-15416-00-00 |
— | ||
|
15
|
15
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
15
|
15
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
16
|
16
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
16
|
16
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $18.86 |
||
|
17
|
17
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.81 |
||
