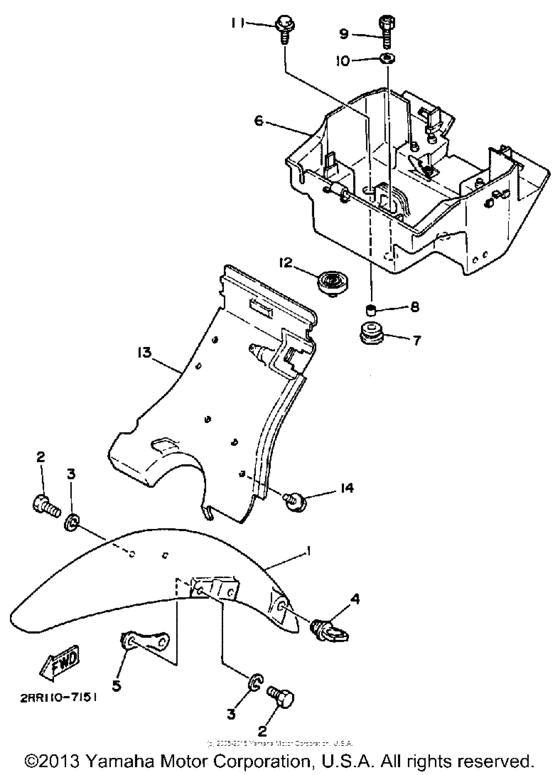

Fender Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AL-21511-01-00
Fender, Front
|
2AL-21511-01-00 |
— | ||
|
1
|
1
2AL-21511-11-00
Fender, Front
|
2AL-21511-11-00 |
— | ||
|
1
|
1
2AL-21511-50-00
Fender, Front
|
2AL-21511-50-00 |
— | ||
|
2
|
2
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
5
|
5
2RR-21526-00-00
Plate, Stay Ftng 1
|
2RR-21526-00-00 |
— | ||
|
6
|
6
2RR-21610-00-00
Fender, Rear
|
2RR-21610-00-00 |
— | ||
|
7
|
7
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
7
|
7
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
8
|
8
90387-067K6-00 Collar |
90387-067K6-00 |
from US $1.52 |
||
|
9
|
9
90153-06007-00 Bolt |
90153-06007-00 |
from US $0.93 |
||
| replacement | |||||
|
9
|
9
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
10
|
10
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
10
|
10
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
11
|
11
90159-06016-00 Screw, With Washer |
90159-06016-00 |
from US $1.66 |
||
|
12
|
12
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
13
|
13
2AL-21629-00-00
Guard, Mud
|
2AL-21629-00-00 |
— | ||
|
14
|
14
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
14
|
14
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
14
|
14
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
